Product:

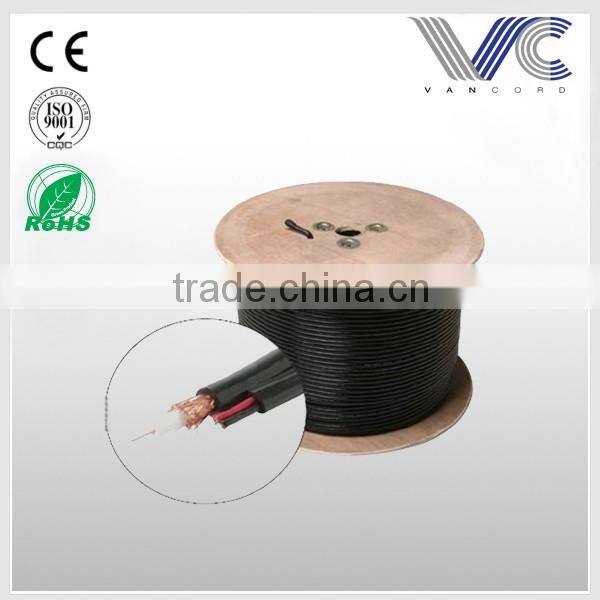

RG6 Power Video Combo Cable Roll Spool Box for Security Camera System
Specifications:
CONDUCTOR | MATERIAL | CCS |
Nom. Dia. | 1.00mm | |
DIELECTRIC | MATERIAL | Foamed PE |
Nom. Dia. | 4.75mm | |
SHIELD | MATERIAL | Al foil+144*0.12mm Al-mg braiding |
Coverage | 95% | |
JACKET | MATERIAL | PVC |
Nom. Thick | 0.8mm | |
Nom. Dia. | 6.8mm |
| POWER CABLE SPECS | [ 2*(20*0.18CCA + 1.5PVC) + 3.6PVC ] BLACK |
Nominal Impedance(Ohm) | 75±3 |
Nominal Velocity of Propagation(%) | 85 |
Nominal Capacitance(pF/m) | 50 |
Sparker Test(VAC) | 4000 |
SRL(dB) | 20 |
Attenuation (68ºF/20ºC) | ||
Frequency(MHz) | Maximum(db/100ft) | Maximum(db/100m) |
5 | 0.58 | 1.9 |
55 | 1.6 | 5.25 |
187 | 2.85 | 9.35 |
300 | 3.55 | 11.64 |
450 | 4.4 | 14.43 |
600 | 5.1 | 16.73 |
750 | 5.65 | 18.54 |
865 | 6.1 | 20.01 |
1000 | 6.55 | 21.49 |
| 1 ) Inner conductor | Tinned Copper , Bare Copper , and Copper Clad Steel available |
| 2 ) Al-foil | unbonded AP , Bonded AP , APA , Bonded APA available |
| 3 ) Braiding material | Al-mg , CCA , Bare Copper and Tinned Copper wire available |
| 4 ) Braiding wire diameter | 0.12 , 0.13 , 0.14 , 0.15 , 0.16mm available |
| 5 )Braiding net | 80 , 96 , 120 , 128 , 144 and more available |
| 6 ) Braiding coverage | Between 30- 97% available |
| 7 ) Jacket material | PVC , PE Flame retardant , UV , Rohs , available |
Application :
1. Coaxial cable for CATV,CCTV systems
2. For satellite systems
3. For security systems
Incore Terms:
USD $1-$5000: EXW
USD $5001-$10000: FCA
Above USD $10000: FOB
Packing details:
1. Packing Lengths: 100m/roll, 200m/roll, 300m/roll, 500m/roll.
2. Inner packing: Wooden reel, plastic reel, and paper reel.
3. Outer packing: Carton box, pull out box, pallet available.
4. Other packing available according to client's request.
Factory Introduction:
Our factory, HAIYAN HUXI WIRE&CABLE CO.,LTD ,was found in 1995,we specialize in designing and manufacturing cable products for 18 years with good quality and pretty competitive price,Especially the CAR WIRING KITS,SPEAKER CABLE,RCA CABLE,HDMI CABLE etc.And we do OEM for customers with reliable quality.
Question & Answer
1. What is your MOQ?
Generally,we make mass production based on MOQ 500pcs, single blister packing, since our sub-supplier ask
for 500pcs MOQ for blister. So if bulk package is ok for you, we can accpet lower order quantity.
2. How about your delivery date?
Normally our delivery date is about 25-30days after payment received.
3. Can you supply sample for custome
We can supply sample for customer's quality checking before placing new order to us, the delivery
cost will be charged on customer's account.
4. How about your price?
We will do our best to offer a good price for our customers, usually our price is worked out according
to the current exchange rate, probable order quantity, most important is your sincerity on cooperation!
