ADSS-12 200m Span optic fiber cable
Cable Specification

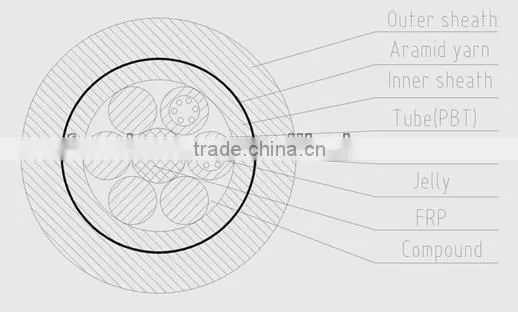

1, Introduction
The fibers are placed in a loose tube made of PBT. The tubes are filled with a water-resistant filling compound. elements (tubes and filler rods) laid up around no-metallic central strength member,
filling compound filled in the apertures of the cable core, PE inner sheath, aramid yarn as the supporting member
and PE outer sheath.
2, Fiber color code
Fiber color in each tube starts from No. 1 Blue.
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
Blue |
Orange |
Green |
Brown |
Gray |
White |
—— |
—— |
—— |
—— |
—— |
—— |
2.3 Color codes for loose tube & filler rod
Tube color in each layer starts from No. 1 Blue. If there are fillers, the color is nature.
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
Blue |
Orange |
—— |
—— |
—— |
—— |
—— |
—— |
—— |
—— |
—— |
—— |
2.4 Cable structure and parameter
SN |
Item |
Unit |
Value |
1 |
No. of fibers |
count |
12(G652D) |
2 |
No. of fibers per tube(max) |
count |
6 |
3 |
No. of elements |
count |
2 |
4 |
Tube diameter |
mm |
2.15 |
5 |
CSM (FRP) |
mm |
2.3 |
6 |
Diameter |
mm |
12.4 |
