Product name:

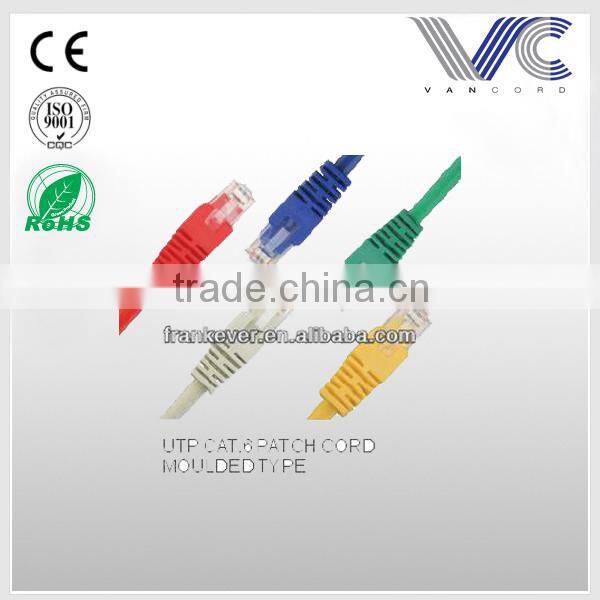

FrankEver Lan Cord UPT Cat6 with RJ45 plug moulded patch cord/network cable
Specification:
1.Conductor for cat6 cable: 4 pairs 23AWG, BC,CCA,CCS
2.Conductor Dimension: 0.57mm(Optional)
3.Shielding:Al foil+Braid(80*0.12MM)
4.Insulation: HDPE Insulation,1.05±0.06mm
5.Filler: Ripcord
6.Jacket: PVC,new material
7.Nominal Overall Diameter: 6.3mm±0.1mm
8.Length:100m,200m,305m,as your request
9.Package:pull box,wooden reel,paper reel,or OEM welcome
10.Shipping date:15days after receive the deposit
11.Delivery terms:EXW,FOB,CIF
14.Optional specs:
UTP CAT6 4P*1/0.51CU PVC
UTP CAT6 4P*1/0.55CU PVC
UTP CAT6 4P*1/0.56CU PVC
UTP CAT6 4P*1/0.574CU PVC
UTP CAT6 4P*1/0.50CCA PVC
UTP CAT6 4P*1/0.57CCA PVC

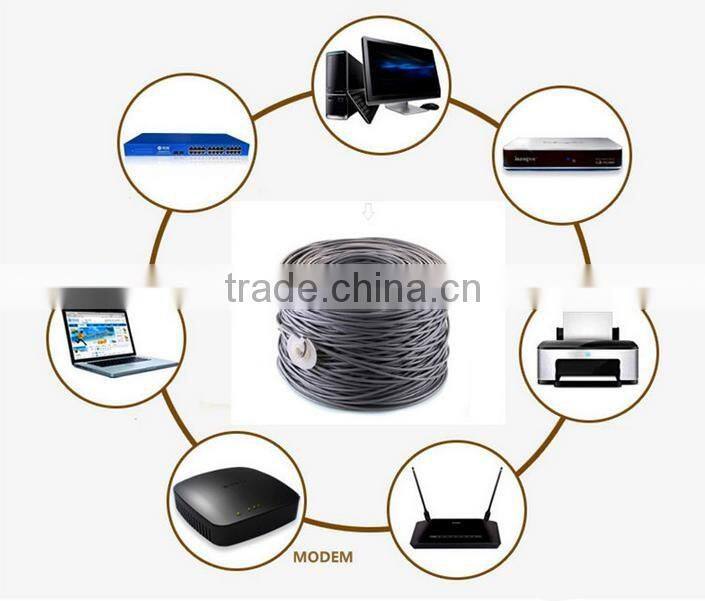

APPLICATION:
Technical data:
Frequency Mhz | Impedance Ohm | RL dB | Attenuation dB/100M | Next dB/100M | ELFEXT dB/100M | PS NEXT dB/100M | PS Elfext dB/100M |
1 | 100±15 | 20 | 2.0 | 65.3 | 63.8 | 62.3 | 60.8 |
4 | 100±15 | 23 | 4.1 | 56.3 | 51.7 | 53.3 | 48.7 |
8 | 100±15 | 25 | 5.8 | 51.8 | 45.7 | 53.3 | 42.7 |
10 | 100±15 | 25 | 6.5 | 50.3 | 43.8 | 47.3 | 40.8 |
16 | 100±15 | 25 | 8.2 | 47.3 | 39.7 | 44.2 | 36.7 |
20 | 100±15 | 25 | 9.3 | 48.5 | 37.7 | 42.8 | 34.7 |
25 | 100±15 | 24 | 10.4 | 44.3 | 35.8 | 41.3 | 32.8 |
31.25 | 100±15 | 24 | 11.6 | 42.9 | 33.9 | 39.9 | 30.9 |
62.5 | 100±15 | 22 | 17.0 | 38.4 | 27.8 | 35.4 | 24.8 |
100 | 100±15 | 20 | 22.0 | 35.3 | 23.8 | 32.3 | 20.8 |
155 | 100±18 | 19 | 28.1 | 33.0 | 20.0 | 29.0 | 17.0 |
200 | 100±22 | 19 | 32.4 | 31.0 | 18.0 | 28.0 | 15.0 |
310 | 100±22 | 18 | 41.8 | 28.0 | 14.0 | 25.0 | 11.0 |
350 | 100±22 | 17 | 44.9 | 27.0 | 13.0 | 24.0 | 10.0 |
packing detail:
pull box,wooden reel,paper reel,or OEM welcome
Incore Terms:
USD $1-$5000: EXW
USD $5001-$10000: FCA
Above USD $10000: FOB
Certification:
Factory Introduction:
Our factory, HAIYAN HUXI WIRE&CABLE CO.,LTD ,was found in 1995,we specialize in designing and manufacturing cable products for 18 years with good quality and pretty competitive price,Especially the CAR WIRING KITS,SPEAKER CABLE,RCA CABLE,HDMI CABLE etc.And we do OEM for customers with reliable quality.More infos for our company,please link:
Workshop picture:
Question & Answer
1. What is your MOQ?
Usually our MOQ for normal spiral cable is 1000pcs, if your order quantity is less than 1000pcs, it
will be a great wastage of materials, which will cause the price of product very high.
2. How about your delivery date?
Normally our delivery date for spiral cable is about 15-25days.
3. Can you supply sample for custome
We can supply sample for customer's quality checking before placing new order to us, the delivery
cost will be charged on customer's account.
4. How about your price?
We will do our best to offer a good price for our customers, usually our price is worked out according
to the current exchange rate, probable order quantity, most important is your sincerity on cooperation!
