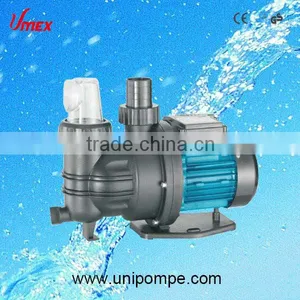

XKP-2 series Top quality Swimming pool pump

Specifications

swimming pool jet pump
1, unique design
2, quiet running
3, energy saving

XKP-2 SWIMMING POOL PUMPS


Application:

XKP-2 series are of novel appearance, samll and handy,compact structure and stable running. It is suitable for all kinds of small domestic swimming pool.

8Features
8Efficient, reliable and corrosion resistant.
8Built-in filters
8Single phase: 220-240V, 50Hz, two-pole motor(2850rpm)

Operating Limits:

8Max. fluid temperature from +5°C~50°C
8Max. ambient temperature up to 50°C
8Max. working pressure: 3.0Bar

Material:

8Pump body,pump foot and diffuser in glass loaded Polypropilen
8Impeller in glass loaded Noryl
8Shaft in stainless steel
8Mechanical seal in graphite and ceramic
8Motor housing in aluminium

Motor:

82-pole induction motor
8Built-in thermal protection
8Insulation class B
8Protection IP54
8Continuous duty



Features:

8Delivery: up to 9.5m³/h
8Head: up to 10m
8Motor power: 0.2KW-0.45KW
8Thermal overload protection
8Excellent performance, Continuous duty
8Wishper quiet
8Pumps made for most voltages & frequencies





Technical Data:
