Specifications
Automatic pump station1.Idea automatic pump station
2.booster
3.with self-priming JET pump
4.24L stainless steel tank

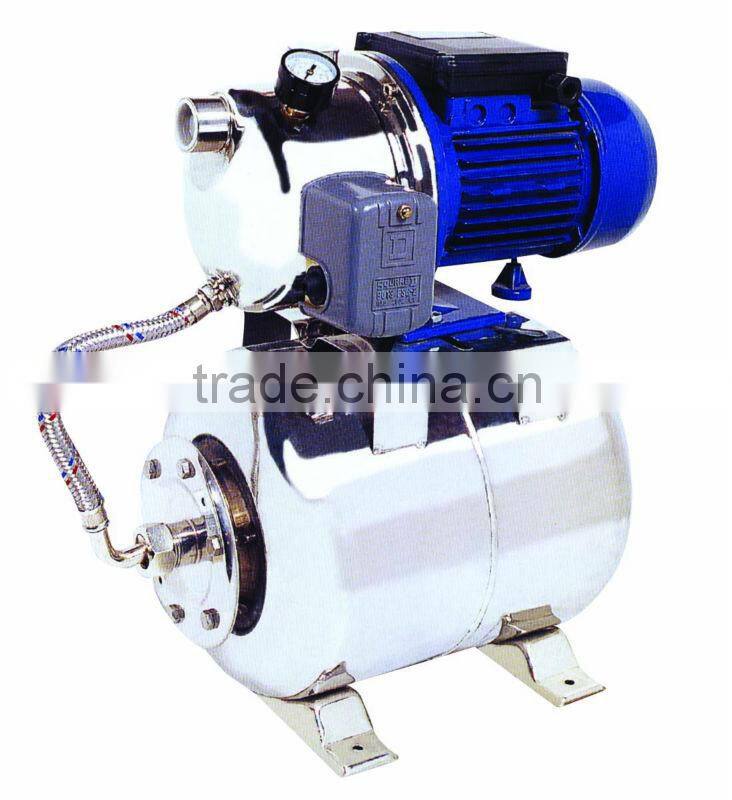

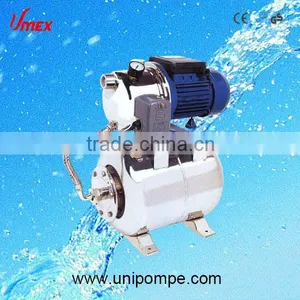

AUJET-ST SERIES AUTOMATIC PUMP STATION - BOOSTER SYSTEM
MAIN FEATURE
The AUHKm, AUJET, AUCPM, AUSCM AUJDP automatic booster system consists of a JET water pump, an airtight pressure switch, a pressure tank, a pressure gauge, and a connecting flexible pipe, make the pump automatic, more convenient to use. The pressure tank with a non-toxic rubber membrane, or called pressure vessel, has been pre-filled with air pressure of about 0.12 Mpa before leaving the factory.These systems give suitable mains water pressure as required by modern domestic applications, and industrial applications, and will ensure enough water to supply all user outlets.Almost all other pump models can be installed and become automatic booster systems, especially the centrifugal series water pumps.
RANGE OF PERFORMANCE
8Flow rate up to 54 l/min (3.2 m3/h)
8Head up to 51m
LIMITS OF USE
8Manometric suction lift up to 9m
8Liquid temperature up to +60°C
8Environment temperature up to +40°C
MOTOR
8Two –pole induction motor (n=2850rpm)
8Insulation Class B
8Protection grade IP44
ACCESSORY
8Tank:24L (CAST IRON OR STAINLESS STEEL)
8Flexible hose: 1'' X 1'
8Pressure switch: PC-2/PC-5/PC-9
8Pressure gauge: 7 BAR(100PSI)
8Brass connector: 5 WAY
8Cable: 1.5 METERS
Performance Table:
MODEL |
POWER |
MAX.FLOW |
MAX.HEAD |
INLET/OUTLET |
MAX.SUCT |
N.W |
DIMENSION |
|
1 Phase |
(Kw) |
(Hp) |
(L/min) |
(m) |
(Inch) |
(m) |
(K.g) |
(mm) |
AUJET-60ST |
0.46 |
0.6 |
42 |
38 |
1"*1" |
9 |
9.0 |
420*220*230 |
AUJET-80ST |
0.60 |
0.8 |
50 |
43 |
1"*1" |
9 |
10.0 |
420*220*230 |
AUJET-100ST |
0.75 |
1 |
54 |
51 |
1"*1" |
9 |
11.0 |
420*220*230 |
Production Process Scheme:
