Help CenterSelf- Priming Water Jet Pump JET-100A, With Copper Wire, Brass Impeller
Related Products
-
NFM Series Agricultural Standard Electric Centrifugal Pump With FlangeUS$ 50 - 100MOQ: 50 Pieces -
CPM SERIES Top Quality Multistage Centrifugal PumpUS$ 20 - 100MOQ: 100 Pieces
-
CM Series Electric Pump With Brass ImpellerUS$ 50 - 100MOQ: 50 Pieces
-
Top Quality SCM Series Stainless Steel Water Pump With Stainless Steel ImpellerUS$ 20 - 100MOQ: 100 Pieces
-
Top Quality SCM Series Centrifugal Water PumpUS$ 20 - 100MOQ: 100 Pieces
Specifications
water jet pump1, AISI 304 welding shaft
2, brass impeller
3, thermal protector
4,copper wire

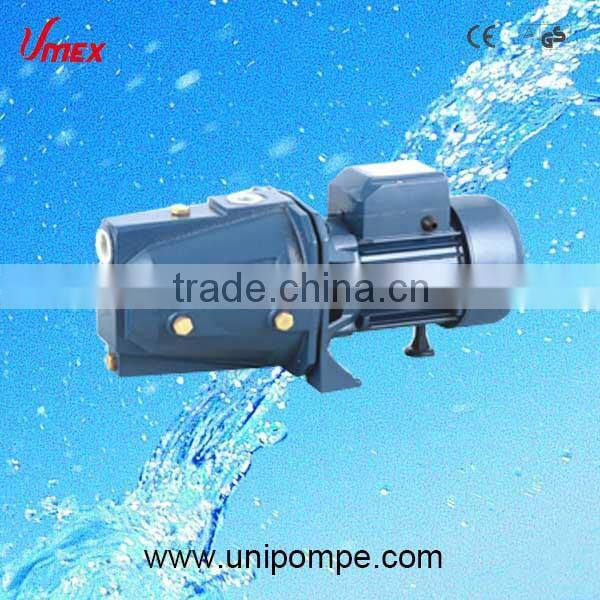

Self- priming water jet pump JET-100A, with copper wire, brass impeller

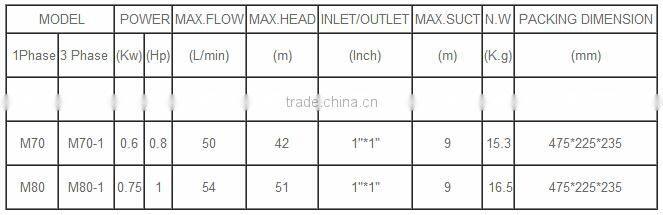

RANGE OF PERFORMANCE
1.Flow rate up to 54 l/min (3.2 m3/h)
2.Head up to 51m
LIMITS OF USE
1.Manometric suction lift up to 9m
2.Liquid temperature up to +60°C
3.Environment temperature up to +40°C
INSTALLATION AND USE
These pumps are suitable for handling clean water without abrasive particles and liquids that are chemically non-aggressive to the pump components. Reliable, economical and simple to use, they are suitable for domestic use and in particular for distributing water in combination with small pressure sets, for irrigating gardens. The pumps must be installed in a covered area, protected against the inclement weather.
MOTOR
1.Two –pole induction motor (n=2850rpm)
2.Insulation Class B
3.Protection grade IP44
MATERIALS
1.Pump body: Cast iron WITH THREAD opening ISO 228/1
2.Motor support: Cast iron
3.Motor housing: Aluminum
4.Impeller: Brass
5.Shaft with rotor: Carbon steel or stainless steel
6.Mechanical seal: Ceramic/ Graphite
7.Bearing: NSK, C&U, or local quality.
WARRANTY: 1 YEAR (according to our general sales conditions)
Three-phase 220/380V-50Hz (60hz), single phase 220V/60Hz, 110V/60Hz, 127V/60Hz & 110V/220V/60Hz are available on request.
Production Process Scheme:
