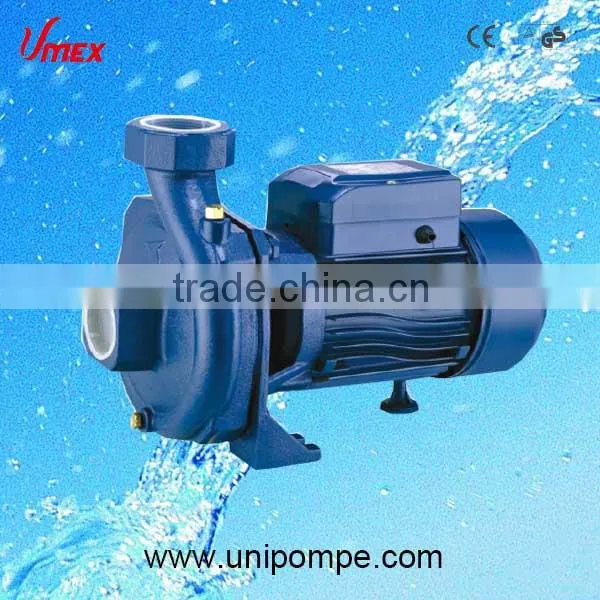

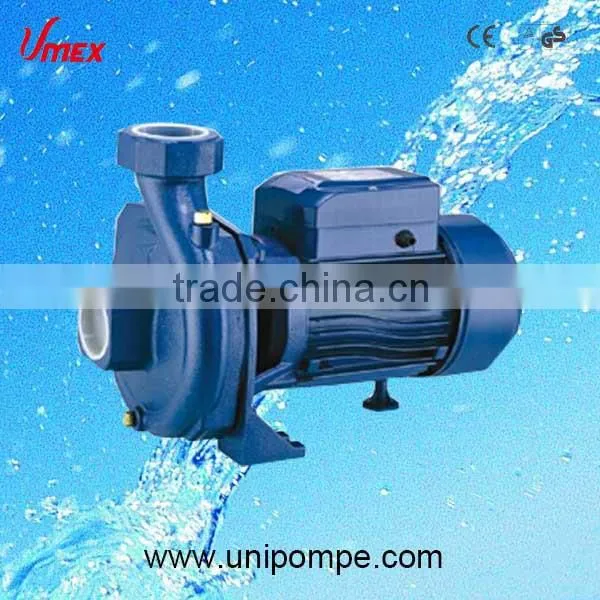

CM Series electric pump with brass impeller

Specifications

electric pump
1.big flow rate
quality with competitive price
3.thermal protection
4.brass impeller

CM Series electric pump with brass impeller





RANGE OF PERFORMANCE



8Flow rate up to 260 l/min (15.6m3/h)
8Head up to 20m



LIMITS OF USE



8Manometric suction lift up to 8m
8Liquid temperature up to +60°C
8Environment temperature up to +40°C



INSTALLATION AND USE
8These pumps are suitable for handling clean water without abrasive particles and liquids that are chemically non-aggressive to the pump components. Reliable, economical and simple to use, they are suitable for domestic use and in particular for distributing water in combination with small pressure sets, for irrigating gardens. The pumps must be installed in a covered area, protected against the inclement weather.



MOTOR
8Two –pole induction motor (n=2850rpm)
8Insulation Class B
8Protection grade IP44



MATERIALS
8Pump body: Cast iron, with threaded opening ISO 228/1.
8Motor support: Cast iron
8Motor housing: Aluminum
8Impeller: stianless steel/Brass
8Shaft with rotor: Carbon steel or stainless steel
8Mechanical seal: Ceramic/ Graphite
8Bearing:  NSK, C&U, or local quality.





WARRANTY: 1 YEAR (according to our general sales conditions)





MODEL	POWER		MAX.FLOW	MAX.HEAD	INLET/OUTLET	MAX.SUCT	G.W	PACKING DIMENSION
	(Kw)	(Hp)	(L/min)	(m)	(Inch)	(m)	(K.g)	(mm)
CM20	0.75	1	260	20	11/2"*11/2"	8	14	310*175*225
CM30	1.1	1.5	390	25	11/2"*11/2"	8	15	390*240*295
CM70	1.5	2	400	30	2"*2"	8	24.5	445*240*295
