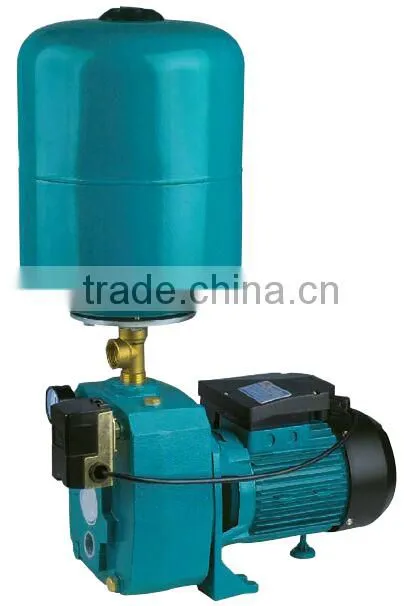

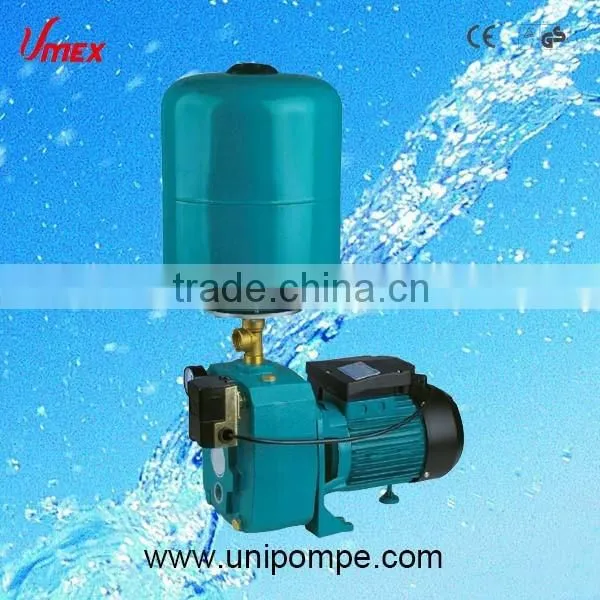

AUDP505A automatic water pump /Auto self-priming Jet pump
WORKING PRINCIPLE
The AUDP automatic booster system consists of a JET water pump, an airtight pressure switch, a pressure tank, a pressure gauge, 3 way brass connector, Ejector and foot valve make the pump automatic, more convenient to use.
Self-priming is achieved by using an ejector, housed in the jet body,which can be installed directly on the pump body or more often lowered in a well and connected to the pump body by two pipes. The total delivery produced by the closed centrifugal impeller is sent only to the delivery opening.
The remaining water is recirculated by the ejector, which is connected to the suction chamber where it generates the necessary vacuum to draw up water from the point where the jet body is immersed.
The water from the jet body opening mixes in the diffuser with recirculating water from the pump, thus increasing its pressure at the expense of the recirculating water and is drawn into the pump through the suction pipe.
RANGE OF PERFORMANCE
8Flow rate up to 54 l/min (3.24 m3/h)
8Head up to 68m
LIMITS OF USE
8Manometric suction lift up to 9m
8Liquid temperature up to +60°C
8Environment temperature up to +40°C
MOTOR
8Two –pole induction motor (n=2850rpm)
8Insulation Class B
8Protection grade IP44
ACCESSORY
8Tank:19L (CAST IRON ,VERTICAL)
8Pressure switch: PC-2
8Pressure gauge: 7 BAR(100PSI)
8Brass connector: 3WAY
8Cable: 1.2 METERS
WARRANTY: 1 YEAR (according to our general sales conditions)
Accept OEM Service
Techanical Parameters
| Model | Power | Max. flow | Max. head | Max. suction | Inlet/Outlet | G.W. | Quantity |
AUDP505B |
1.5kw/ 2 Hp |
54L/Min | 68m | 25m | 11/4''*1''*1'' | 29kgs | 900sets |

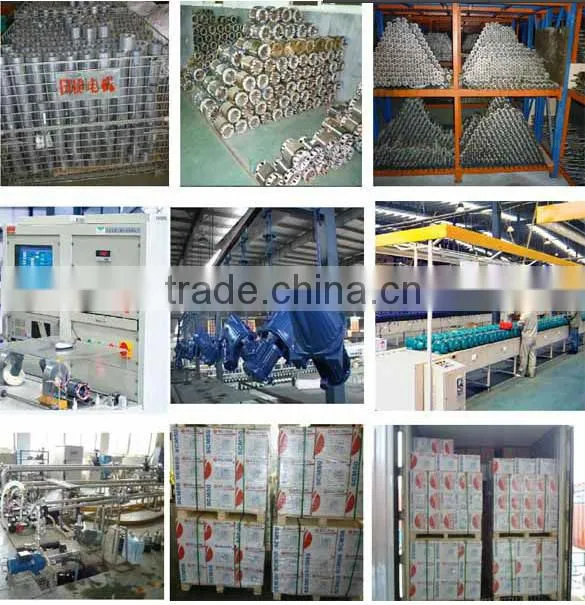

Production Process Scheme:

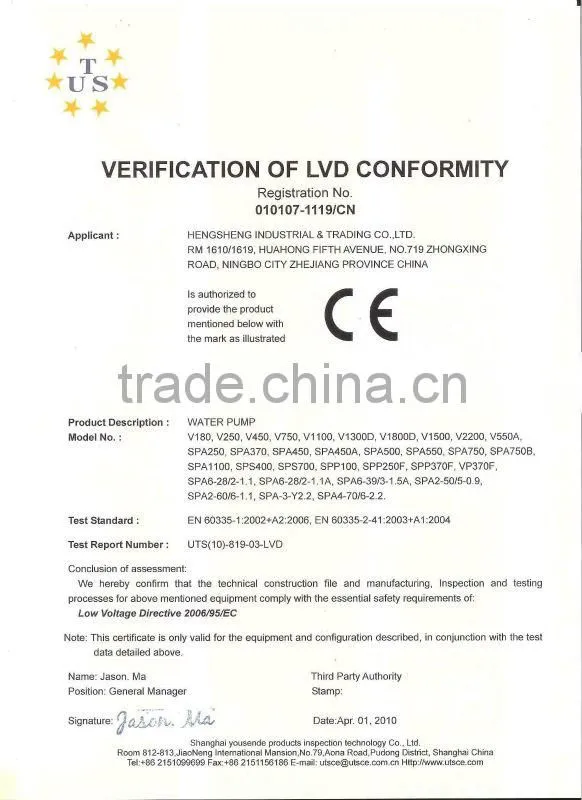

Certificate
