ST-D Series Monoblock Standard Centrifugal Motor Pump

ST-D Series Monoblock Standard Centrifugal Motor Pump thumbnail-1
ST-D Series Monoblock Standard Centrifugal Motor Pump thumbnail-2
ST-D Series Monoblock Standard Centrifugal Motor Pump thumbnail-3
ST-D Series Monoblock Standard Centrifugal Motor Pump thumbnail-4
ST-D Series Monoblock Standard Centrifugal Motor Pump photo-1

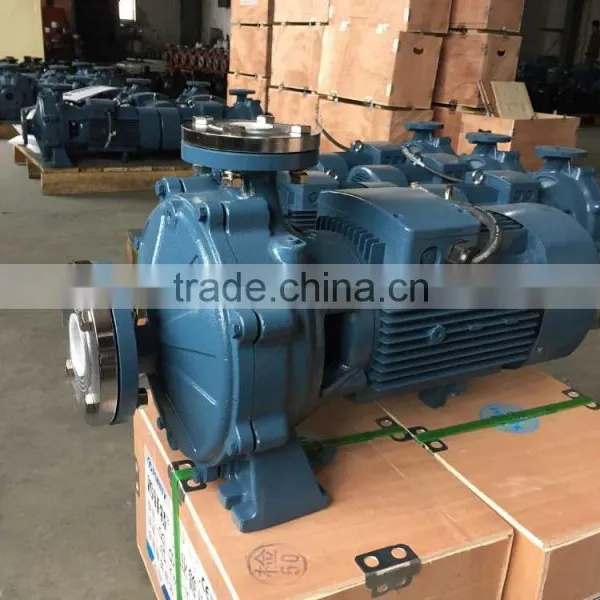

ST-D Series Monoblock Standard Centrifugal Motor Pump photo-2

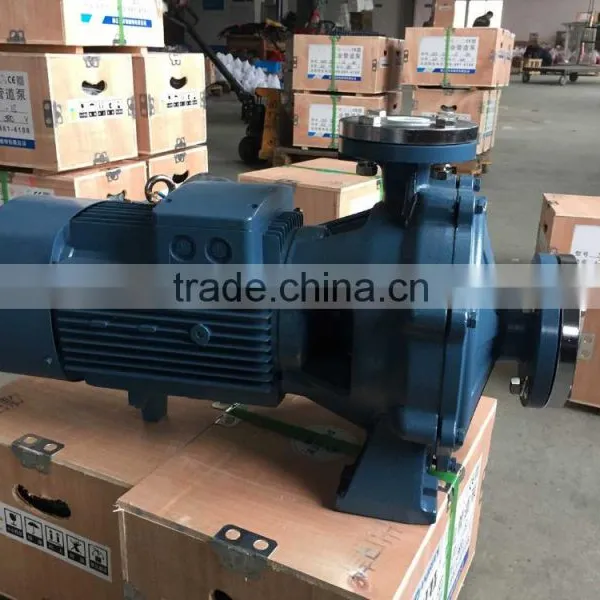

ST-D Series Monoblock Standard Centrifugal Motor Pump photo-3

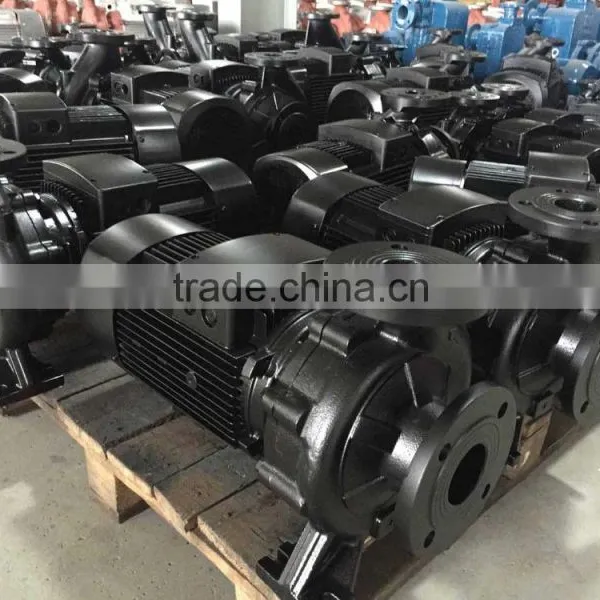

ST-D Series Monoblock Standard Centrifugal Motor Pump photo-4
US$ 100 - 600 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
UNIPOMPE
Model Number:
ST-D
Contact Supplier Request Quote Chat Now
Umex (Ningbo) Imp. & Exp. Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name UNIPOMPE
Model Number ST-D
Theory Centrifugal Pump
Structure Single-stage Pump
Usage Water
Power Electric
Standard or Nonstandard Standard
Fuel Other
Pressure Low Pressure
Application Other, Agricultural irrigation

ST-D series monoblock standard centrifugal motor pump



RANGE OF PERFORMANCE

8Flow rate up to 6000 l/min (360 m3/h)
8Head up to 99.5m

8Power up to 55KW

8Diameter up to 100mm


LIMITS OF USE

8Manometric suction lift up to 8m
8Liquid temperature between  -10 °C and +120°C
8Environment temperature between -10 °C and +40°C



Application

1. For clean non-aggressive liquids without brasives

2. Water supply     3. Cleaning sets        4. Pressure boosting     5. Firefighting sets

6. Irrigation            7. Industrial applications         8. Water circulation in climatisation sets

9. Agricultural applications



MOTOR
8Two –pole induction motor (n=2850rpm)
8Insulation Class B /F
8Protection grade IP44 /54



MATERIALS
8Pump body: Cast iron, with threaded opening ISO 228/1.
8Motor support: Cast iron
8Motor housing: Aluminum

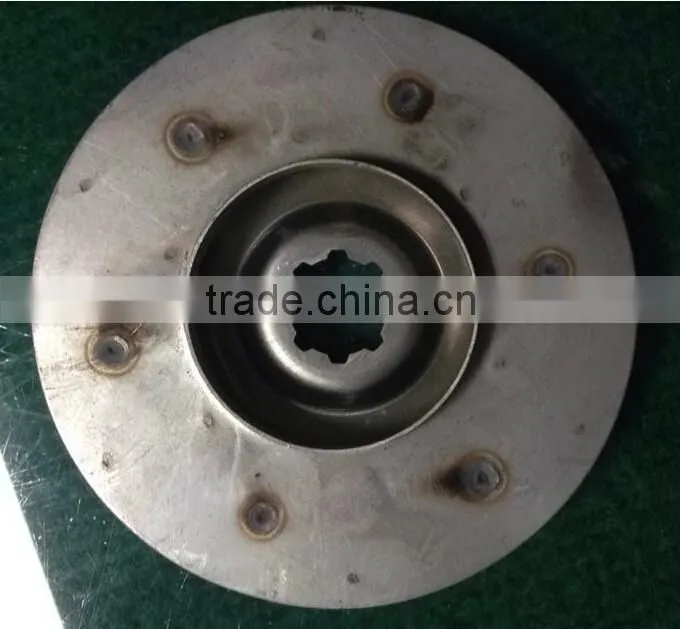

8Impeller: Brass
8Shaft with rotor: Carbon steel or stainless steel
8Mechanical seal: Ceramic/ Graphite
8Bearing:  NSK, C&U, or local quality.



WARRANTY: 2 YEARS (according to our general sales conditions)

 ST-D series monoblock standard centrifugal motor pump

Technical Paremeters



Type Power Perform In×Out Impeller Weight Diameter
        Q H
Mono-phase Tri-phase kw hp m³/h m mm   kg cm
32-125/7 32-125/7 0.75 1 12.5 13.5 50×32 SS304 27/24 47*21*36
32-125/11 32-125/11 1.1 1.5 17 16 50×32 SS304 28/25 47*21*36
32-160/15 32-160/15 1.5 2 15.5 21 50×32 SS304 38/34 48*26*40
32-160/22 32-160/22 2.2 3 18.5 26 50×32 SS304 43/39 48*26*40
32-160/30 32-160/30 3 4 19.5 28 50×32 SS304 54/50 61*27*45
32-200/30 32-200/30 3 4 19.5 30 50×32 SS304 56/52 61*27*45
- 32-200/40 4 5.5 24 32 50×32 SS304 53 61*27*45
- 32-250/55 5.5 7.5 15 47 50×32 Cast iron 66 67*34*52
- 32-250/75 7.5 10 15 55 50×32 Cast iron 73 67*34*52
- 32-250/110 11 15 15 82 50×32 Cast iron 95 67*34*52
- 32-250/55D 5.5 7.5 18 68 50×32 Double SS 73 67*34*52
- 32-250/75D 7.5 10 19 80 50×32 Double SS 80 67*34*52
40-125/11 40-125/11 1.1 1.5 25 11 65×40 Cast iron 30/27 54*24*36
40-125/15 40-125/15 1.5 2 39 14 65×40 Cast iron 33/29 54*24*36
40-125/22 40-125/22 2.2 3 36 16.5 65×40 Cast iron 38/34 54*24*36
40-160/30 40-160/30 3 4 29 24 65×40 Cast iron 52/48 62*27*41
- 40-160/40 4 5.5 35 29 65×40 Cast iron 50 62*27*41
- 40-200/55 5.5 7.5 29 39 65×40 SS304 66 68*30*45
- 40-200/75 7.5 10 35 46 65×40 SS304 73 68*30*45
- 40-250/92 9.2 12.5 28 54 65×40 Cast iron 100 82*34*50
- 40-250/110 11 15 31 60 65×40 Cast iron 116 82*34*50
- 40-250/150 15 20 35 70 65×40 Cast iron 146 82*34*50
50-125/22 50-125/22 2.2 3 50 12 65×50 Cast iron 45/41 60*26*40
50-125/30 50-125/30 3 4 55 15 65×50 Cast iron 54/50 64*26*40
- 50-125/40 4 5.5 60 18 65×50 Cast iron 52 64*26*40
- 50-160/55 5.5 7.5 50 27 65×50 Cast iron 64 67*29*45
- 50-160/75 7.5 10 60 32.5 65×50 Cast iron 71 67*29*45
- 50-200/92 9.2 12.5 48 41 65×50 Cast iron 90 82*34*45
- 50-200/110 11 15 60 45 65×50 Cast iron 106 82*34*45
- 50-250/150 15 20 50 60 65×50 Cast iron 145 83*34*50
- 50-250/185 18.5 25 55 68 65×50 Cast iron 153 87*34*50
- 50-250/220 22 30 60 75 65×50 Cast iron 183 89*34*50
- 65-125/40 4 5.5 62 16 80×65 Cast iron 56 68*30*45
- 65-125/55 5.5 7.5 74 19 80×65 Cast iron 68 68*30*45
- 65-125/75 7.5 10 85 23 80×65 Cast iron 74 68*30*45
- 65-160/92 9.2 12.5 62 30 80×65 Cast iron 90 83*30*49
- 65-160/110 11 15 74 33 80×65 Cast iron 106 83*30*49
- 65-160/150 15 20 85 38 80×65 Cast iron 134 83*30*49
- 65-200/150 15 20 62 44 80×65 Cast iron 140 83*34*50
- 65-200/185 18.5 25 74 50 80×65 Cast iron 145 88*34*50
- 65-200/220 22 30 85 54 80×65 Cast iron 185 90*34*50
- 80-160/110 11 15 130 22.5 100×80 Cast iron 113 79*34*50
- 80-160/150 15 20 145 27 100×80 Cast iron 143 79*34*50
- 80-160/185 18.5 25 160 31 100×80 Cast iron 150 89*34*52

- 65-250/220 22 30 62 60 80×65 Cast iron 195 89*34*50
- 65-250/300 30 40 74 72 80×65 Cast iron 201 101*38*56
- 65-250/370 37 50 85 83 80×65 Cast iron 347 101*38*56
- 80-200/220 22 30 130 42 100×80 Cast iron 194 90*38*56
- 80-200/300 30 40 160 50 100×80 Cast iron 200 97*38*56
- 80-250/370 37 50 130 63 100×80 Cast iron 330 97*38*58
- 80-250/450 45 60 145 70 100×80 Cast iron 416 100*38*58
- 80-250/550 55 75 160 82 100×80 Cast iron 480 118*38*58





Pictures

ST-D series monoblock standard centrifugal motor pumpST-D series monoblock standard centrifugal motor pump

ST-D series monoblock standard centrifugal motor pumpST-D series monoblock standard centrifugal motor pump

ST-D series monoblock standard centrifugal motor pump

ST-D series monoblock standard centrifugal motor pumpST-D series monoblock standard centrifugal motor pump
