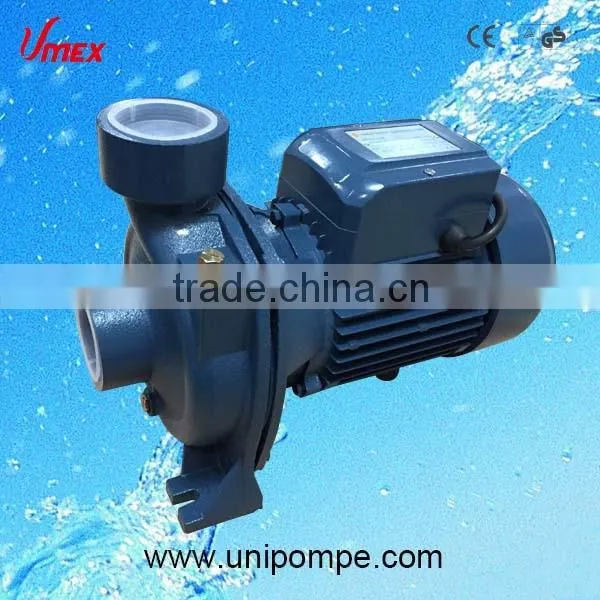

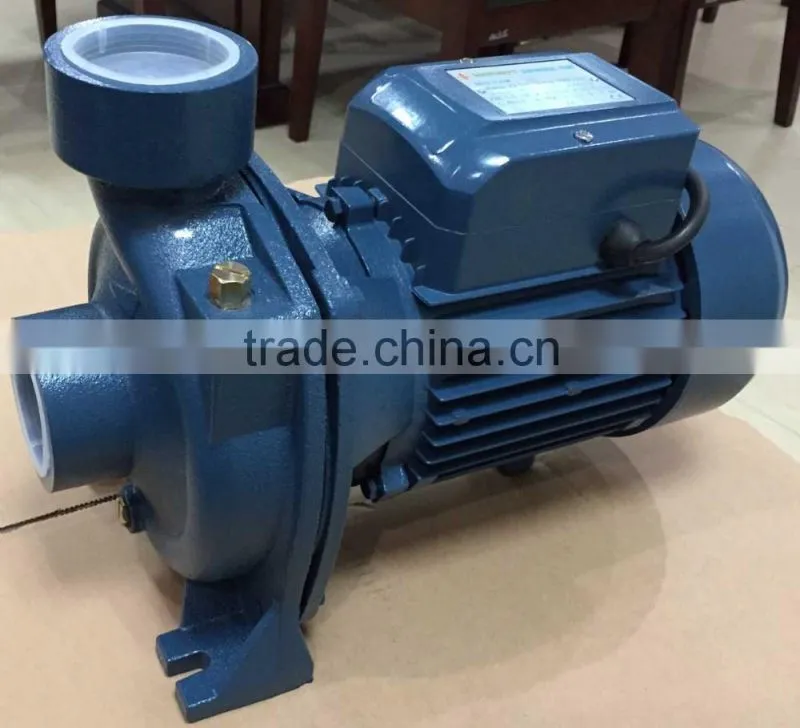

MHF5AM Series Big flow Agricultural irrigation water pump
RANGE OF PERFORMANCE
Flow rate up to 1500 l/min (90 m3/h)
Head up to 21m
LIMITS OF USE
Manometric suction lift up to 9m
Liquid temperature up to +60°C
Environment temperature up to +40°C
INSTALLATION AND USE
These pumps are suitable for handling clean water without abrasive particles and liquids that are chemically non-aggressive to the pump components. Reliable, economical and simple to use, they are suitable for domestic use and in particular for distributing water in combination with small pressure sets, for irrigating gardens. The pumps must be installed in a covered area, protected against the inclement weather.
MOTOR
Two –pole induction motor (n=2850rpm)
Insulation Class B /F
Protection grade IP44 /54
MATERIALS
Pump body: Cast iron, with threaded opening ISO 228/1.
Motor support: Cast iron
Motor housing: Aluminum
Impeller: Brass
Shaft with rotor: Carbon steel or stainless steel
Mechanical seal: Ceramic/ Graphite
Bearing: NSK, C&U, or local quality.
WARRANTY: 1 YEAR (according to our general sales conditions)

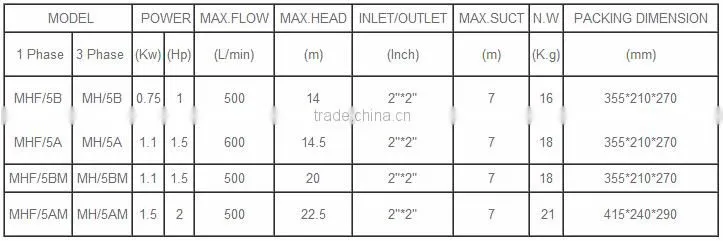

Technical Parameters
Pictures
