Help CenterHNGR Series New Design Submersible Sewage Pump,grinder System Sewage Submersible Pumps
Related Products
-
HQDX Series New Design Submersible Sewage Pump, Sewage Submersible PumpsUS$ 30 - 50MOQ: 100 Units -
HQDX -B Series New Design Inox Sewage Pumps, Stainless Steel Submersible PumpsUS$ 30 - 50MOQ: 100 Units
-
Industria Bombas Sumergibles de Acero Inoxidable Quality ChoiceUS$ 30 - 60MOQ: 100 Units
-
Electric Water Submerged PumpUS$ 10 - 40MOQ: 100 Units
-
Professional Manufacturer of Submersible Sewage Pump Stainless Steel PumpUS$ 50.00 - 50.00MOQ: 100 Pieces
Specifications
1,submersible sewage pump2,made of hard alloy and reliable protection device
3,casting iron impeller with grinder system

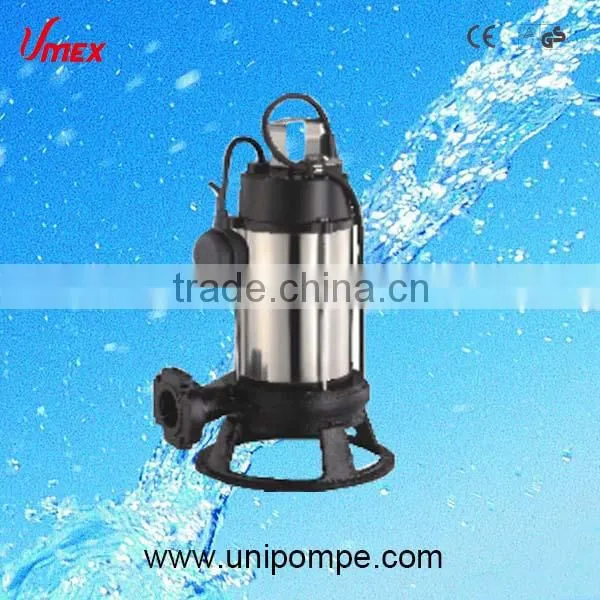

HNGR series New design submersible sewage pump ,Grinder System sewage submersible pumps
Specifications
submersible sewage pumps
1. high efficiency with grinder system
2. Rated flow:10m3/h
3, Rated head:10m
4. 1 year guarantee
Materials
Pump body:Cast Iron
Motor body: stainless steel
Impeller: Cast Iron
Mechanical Seal: Stainless Steel/ Carbon-ceramic
Shaft:45# steel or stainless steel
Bearing:SKF/NTN/China
LIMITS OF USE
8Maximum operating depth 5m below waterlevel
8Maximum fluid temperature 40°C
8PH value in water :4-10
8 Maximum Passage for suspended solids: 35mm
8 Protection:IP68
General Characteristics
* Impeller with a grinder system
* Grinder system contain a revolving cutter and a plate withholes, sharpened edges that fine-chops filaments, preventing fouling of the impeller.
Performance Table
50HZ (Note: 60HZ same performance by reducing the size of impeller)
| Model | Power | Rpg | Outlet | Rated Flow | Rated head |
| 3-PHASE | KW | R/MIN | INCH | M3/H | M |
| HNGR-0.75 | 0.75 | 2900 | G1.5'' | 10 | 7 |
| HNGR-1.1 | 1.1 | 2900 | G1.5'' | 10 | 10 |

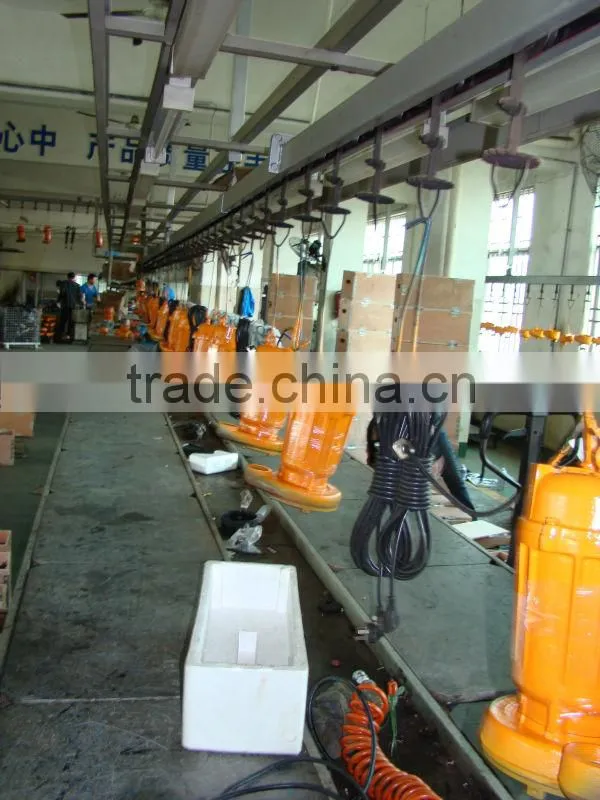

PRODUCTION SCHEME
