Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > V550A Pottable Submersible Sewage Pump,electric Water Pump

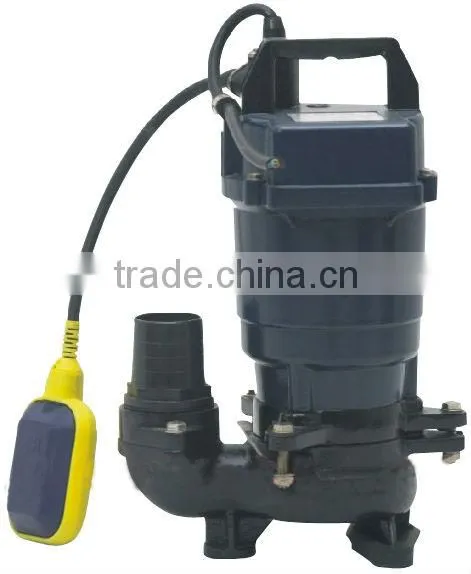

V550A Pottable Submersible Sewage Pump,electric Water Pump

Name: V550A Pottable Submersible Sewage Pump,electric Water Pump
Brand: BALLENA,UNIPOMPE
SKU: 113797765

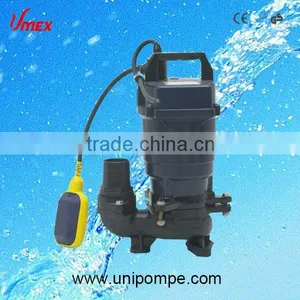

V550A Pottable Submersible Sewage Pump,electric Water Pump thumbnail-1

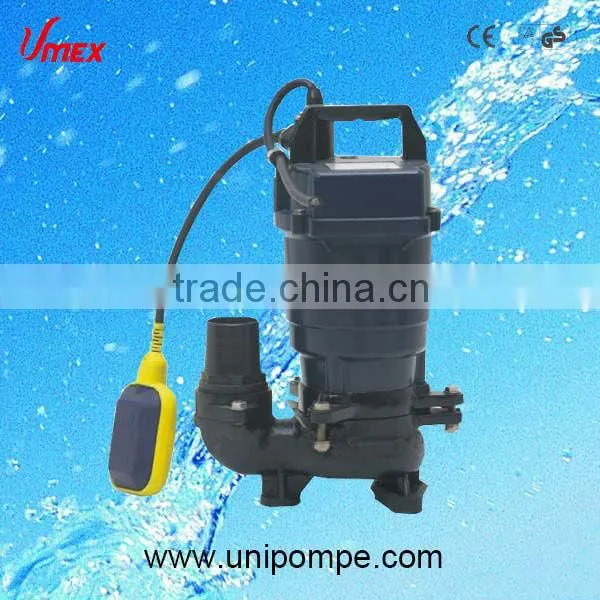

V550A Pottable Submersible Sewage Pump,electric Water Pump photo-1

US$ 30 - 50 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

BALLENA,UNIPOMPE

Model Number:

V550A

Contact Supplier Request Quote Chat Now

Umex (Ningbo) Imp. & Exp. Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name BALLENA,UNIPOMPE

Model Number V550A

Theory Rotary Pump

Structure Single-stage Pump

Usage Water

Power Electric

Standard or Nonstandard Standard

Fuel Other

Pressure High Pressure

Application Sewage

Specifications

Submersible Sewage Pump,electric water pump
1. max. water depth 5m
2. max flow 15.6 m3/h
3.1 year guarantee

V550A pottable Submersible sewage pump,

electric water pump

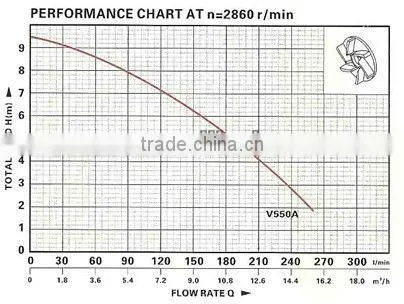

RANGE OF PERFORMANCE
8Flow rate: up to 260 L/min (15.6 m3/h)
8Head: up to 9.5 m

LIMITS OF USE
8Maximum operating depth 5m below waterlevel
8Maximum fluid temperature 40°C
8PH value in water :4-10
8Maximum Passage for suspended solids: 15mm

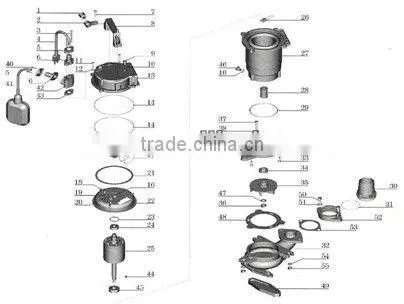

N.	DESCRIPTION	N.	DESCRIPTION	N.	DESCRIPTION	N.	DESCRIPTION
1	Protector	16	Line protector	31	"O" ring	46	Bolt
2	Cable presser	17	"O" ring	32	Pump body	47	Washer
3	Screw	18	Screw	33	Screw	48	Rubber washer
4	Cable	19	Stretching washer	34	Oil seal	49	Rubber mat
5	Flange	20	Washer	35	Impeller	50	Bolt
6	Cable protector	21	Rubber washer	36	Nut	51	Washer
7	Screw	22	Motor cover	37	Bolt	52	Connection nut
8	Handle	23	Undulated washer	38	Washer	53	Rubber washer
9	Screw	24	Ball bearing	39	Connection part	54	Washer
10	"O" ring	25	Rotor	40	Screw	55	Nut
11	Bolt	26	Thermal protector	41	Float switch	56
12	Washer	27	Motor stator	42	Tees	57
13	Capacitor cover	28	Mechanical seal	43	Rubber washer	58
14	"O" ring	29	"O" ring	44	Key	59
15	Capacitor	30	Out-let connector	45	Ball bearing	60
