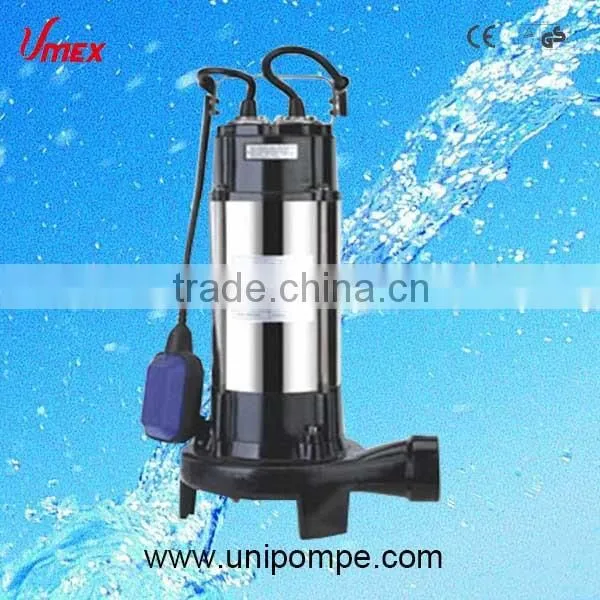

submersible sewage lift pump with cutting system
Specifications
submersible lift pump
1, Power cable: standard cord is 10m
2, Liquid Temperature: 40°c continuous
3, Motor: class B insulation, IP68 protection
4, Single Phase: Built-in thermal protector
5, Accessories: Float switch is available
RANGE OF PERFORMANCE
8Flow rate: up to 300L/min
8Head: up to 12m
8The depth of electric pump below the water is no more than 5m.
8The grain diameter of the solids in the water is no bigger than 50mm.
8PH value in water :4-10
Materials
Pump casing: Cast Iron
Motor Casing: Stainless Steel
Impeller: Cast Iron/ Plastic / Stainless Steel
Double-sided Mechanical Seal: Burna-N elastomers
Motor side Mechanical Seal:carbon VS silicon carbide
Pump side mechanical seal: silicon carbide VS silicon carbide
Shaft:45# steel or stainless steel
Bearing:SKF/NTN/China
General Characteristics
The pump can be widely used in families, enterprises abd farms.
Cylider water-cooled design ensures the possibility of long-time ground use of the pump, preventing being overheated after motors' long time operation.
It has advantages of longer service life and easy maintennance.
The float switch can automatically control without people's supervision.
It's also equipped with single-phase capacitance asynchronous motor and protector, which can automatically cut off the power when it's overheated or when it encounters excessive current, thus guarantee the security and reliability if operation even in the atrocious environment.

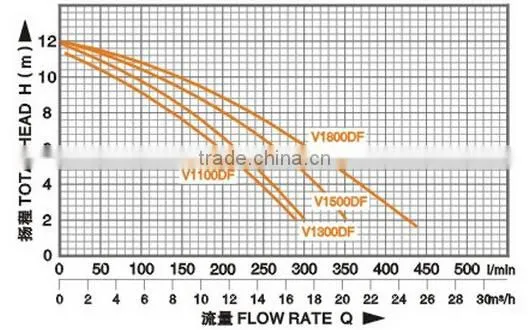

Performance Curve
Performance Table

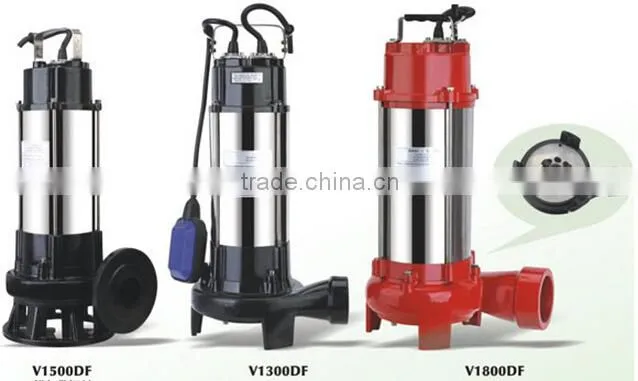

| Model | Power | Outlet diamter | Voltage | Frequency | Max. Flow | Max.head | Weight |
| V1100DF | 1.1kw | 50 mm | 220/380V | 50/60 Hz | 290L/min | 11m | 22.6kgs |
| V1300DF | 1.3kw | 50 mm | 220/380V | 50/60 Hz | 300L/min | 12m | 25kgs |
| V1500DF | 1.5kw | 50 mm | 220/380V | 50/60 Hz | 350L/min | 12m | 26kgs |
| V1800DF | 1.8kw | 80 mm | 220/380V | 50/60 Hz | 440L/min | 12m | 32kgs |
Certificate
