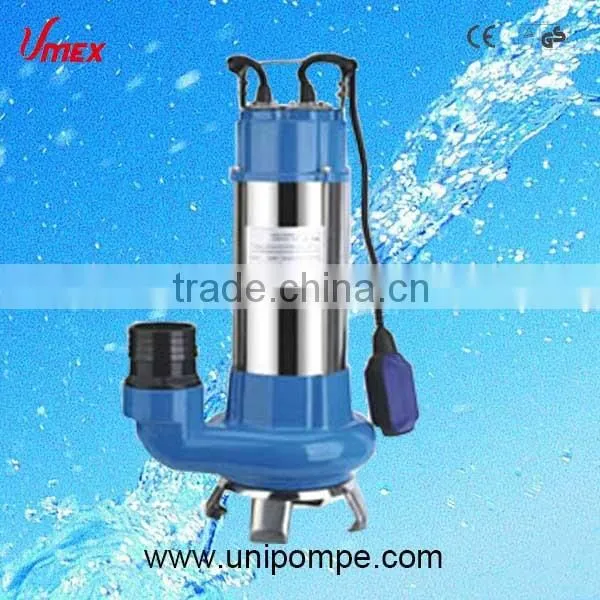

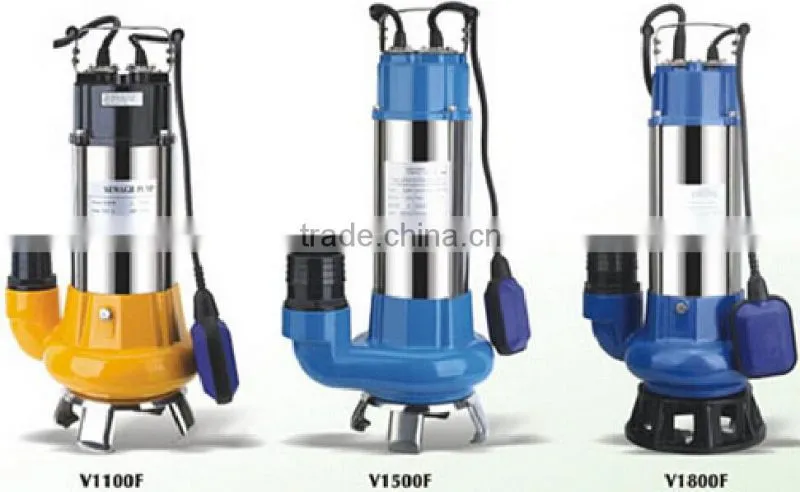

electric submersible pump price with cutting system

electric submersible pump price with cutting system

Specifications

electric submersible pump price

1, Power cable: standard cord is 10m

2, Liquid Temperature: 40°c continuous

3, Motor: class B insulation, IP68 protection

4, Single Phase: Built-in thermal protector

5, Accessories: Float switch is available

RANGE OF PERFORMANCE

8Flow rate : up to 783L/min

8Head: up to 16m

8The depth of electric pump below the water is no more than 5m.

8The grain diameter of the solids in the water is no bigger than 40mm.

8PH value in water :4-10

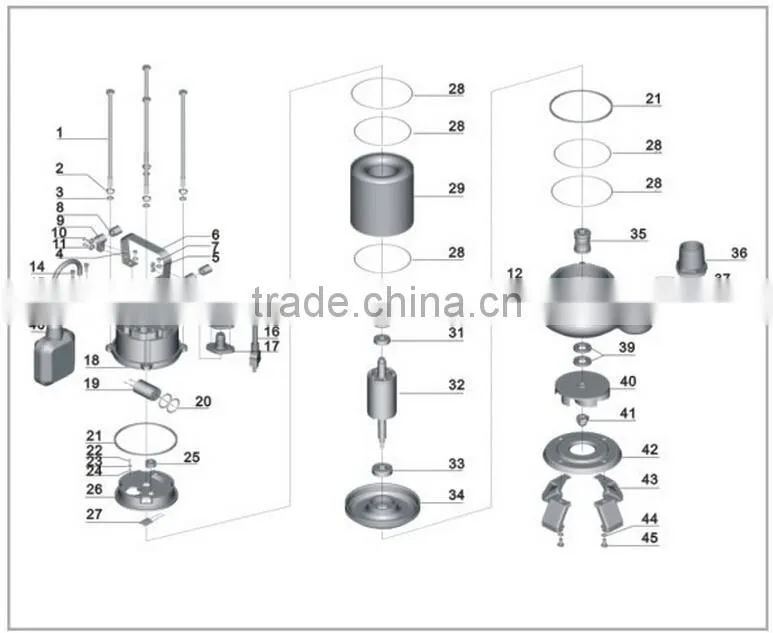

Materials

Pump casing: Cast Iron

Motor Casing: Stainless Steel

Impeller: Cast Iron/ Plastic / Stainless Steel

Double-sided Mechanical Seal: Burna-N elastomers

Motor side  Mechanical Seal:carbon VS silicon carbide

Pump side mechanical seal: silicon carbide VS silicon carbide

Shaft:45# steel or stainless steel

Bearing:SKF/NTN/China

General Characteristics

The pump can be widely used in families, enterprises abd farms.

Cylider water-cooled design ensures the possibility of long-time ground use of the pump, preventing being overheated after motors' long time operation.

It has advantages of longer service life and easy maintennance.

The float switch can automatically control without people's supervision.

It's also equipped with single-phase capacitance asynchronous motor and protector, which can automatically cut off the power when it's overheated or when it encounters excessive current, thus guarantee the security and reliability if operation even in the atrocious environment.

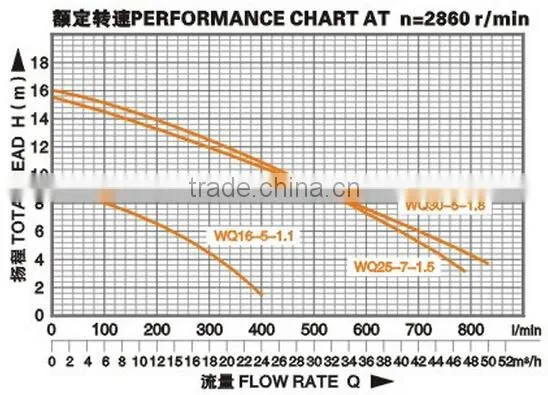

Performance Curve

Performance Table

 Certificate
