stainless steel pump with cutter
Specifications
submersible electric pump
1, Power cable: standard cord is 10m
2, Liquid Temperature: 40°c continuous
3, Motor: Class F insulation, IP68 protection
4, Single Phase: Built-in thermal protector
5, Accessories: Float switch is available
RANGE OF PERFORMANCE
8Flow rate : up to 500L/min
8Head: up to 18m
8The depth of electric pump below the water is no more than 5m.
8The grain diameter of the solids in the water is no bigger than 50mm.
8PH value in water :4-10
Materials
Pump casing: Stainless steel
Motor Casing: Stainless Steel
Impeller: Cast Iron / Stainless Steel open type
Mechanical Seal: stainless steel
Shaft: SS420
Bearing: C&U, NSK, local China
Descriptions
The pump can be widely used in families, enterprises abd farms.
Cylider water-cooled design ensures the possibility of long-time ground use of the pump, preventing being overheated after motors' long time operation.
It has advantages of longer service life and easy maintennance.
The float switch can automatically control without people's supervision.
It's also equipped with single-phase capacitance asynchronous motor and protector, which can automatically cut off the power when it's overheated or when it encounters excessive current, thus guarantee the security and reliability if operation even in the atrocious environment.

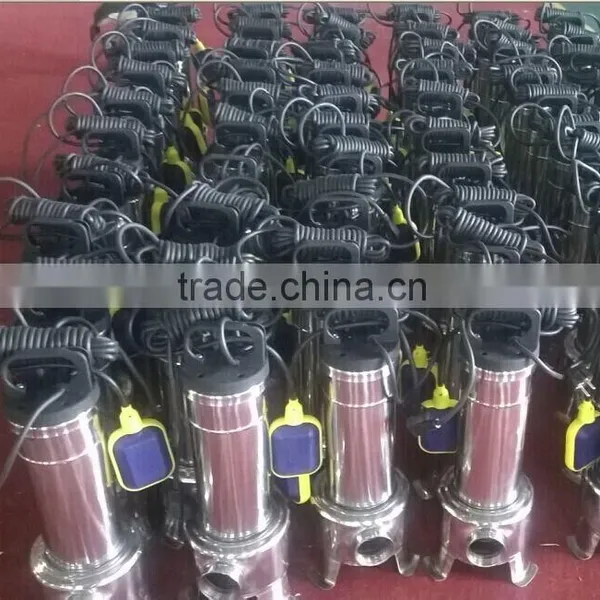

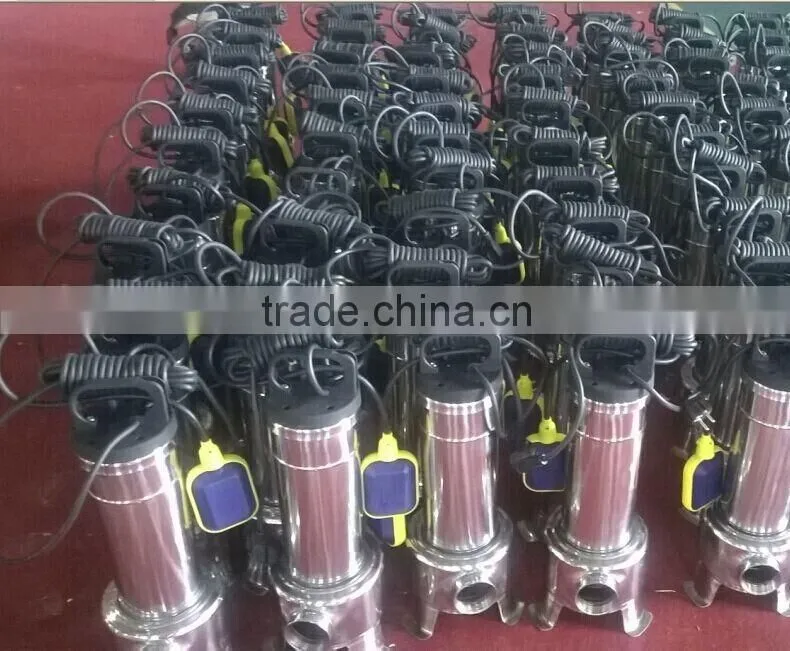

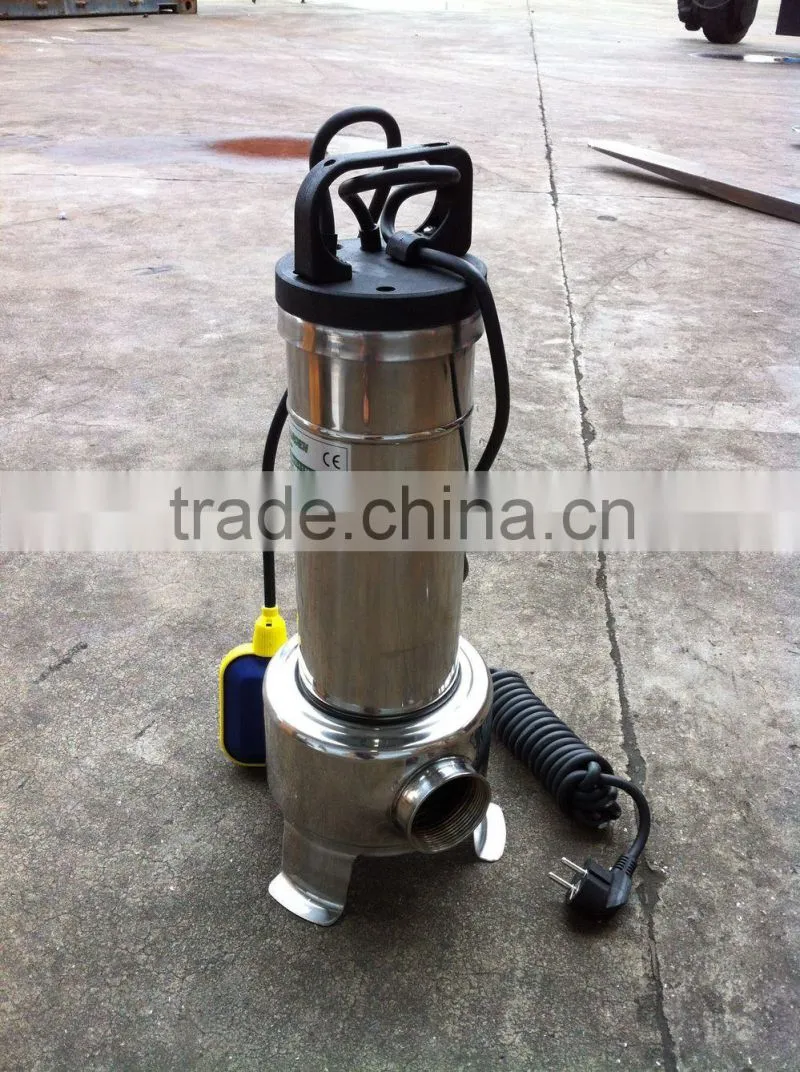

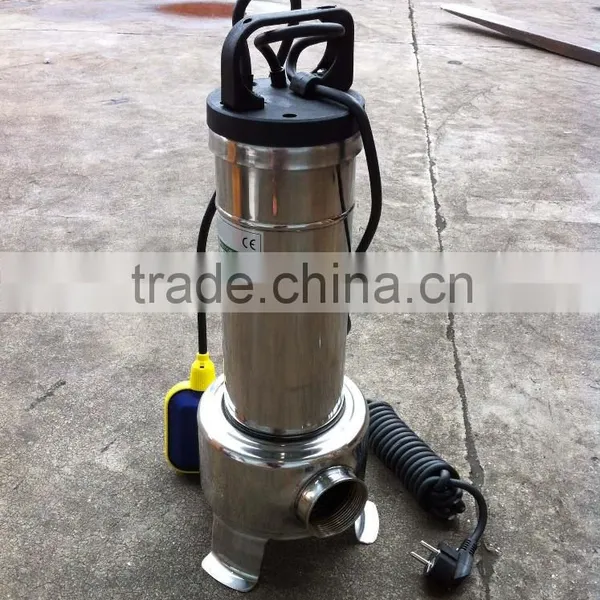

Pictures

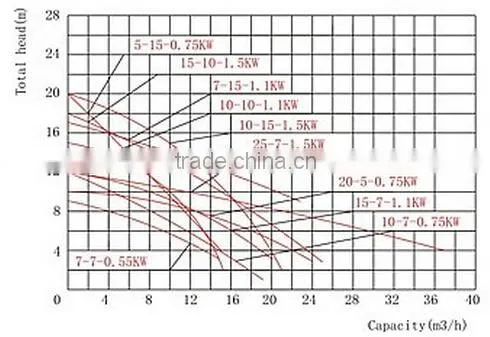

Performance Curve

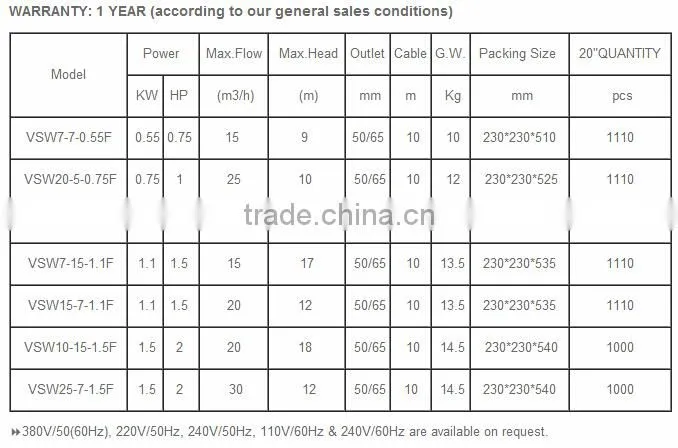

Performance Table
Certificate
