Specifications
Submersible Screw PumpSingle screw instead of impellers
Oil-filled type motor
Sandproof device
SS304 Pump body

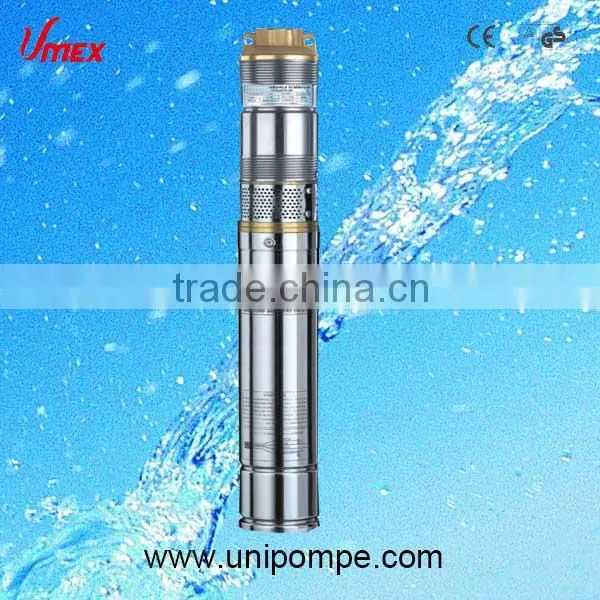

3" (QGDs) Stainless Steel Submersible Screw Pump
MAIN FEATURES:
8Single screw instead of impellers
8Oil-filled type motor
8Sandproof device
8High head and efficiency

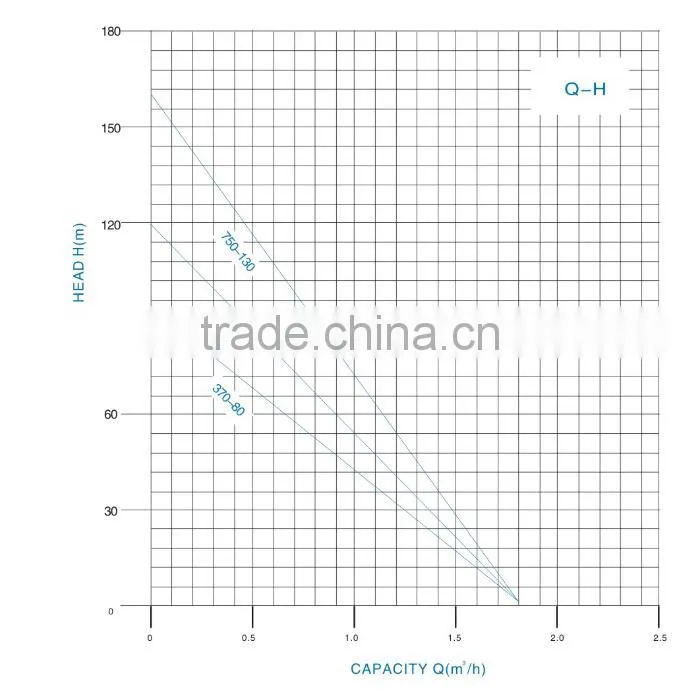

TECHNICAL DATA:
-Pump:
8Qmax: 1.8(m3/h)
8Total head from 80 to 130 (m)
-MOTOR:
8Power: 0.37 to 0.75 kw (1 phase)
8Insulation class : B
8Protection grade: IP 68
8Maximum diameter : 75 mm
8Highest temperature of liquid : 35 °C
8International standard: IEC 60335-1 IEC 60335-2-41.
-Application:
8For water supply from wells or reservoirs.
8For domestic use,for civil and industrial applications.
8For sprimking and flow irrigation plants.
-Operating conditions:
8Water temperature up to 35 Cent.Degree.
8Maximum sand content: 0.25%
8Minimum international diameter of well: 3''

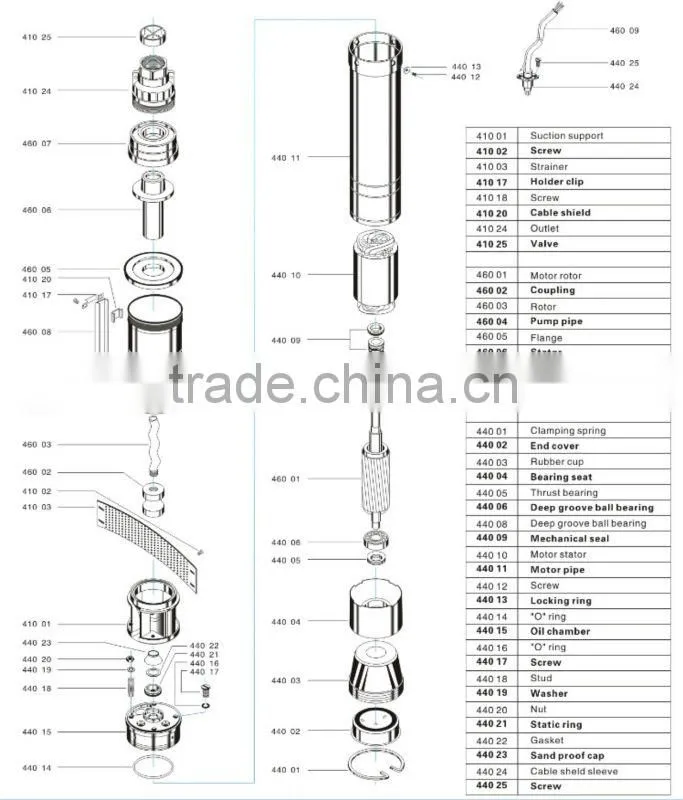

-Materials:
8Pump casing: AISI 304 stainless steel
8Inlet : Brass
8Screw : Steel
8Outlet : Brass
8Shaft : AISI 304 stainless steel.
8Motor casing: AISI 304 stainless steel.
8Mechanical seal: tungsten carbides.
WARRANTY: 1 YEAR (according to our general sales conditions)
MODEL |
Motor Power |
Flow |
Head |
Voltage |
Max.Dia |
Pipe.dia |
Length |
|
220-240V~50HZ |
(Kw) |
(Hp) |
m3/h |
m |
V |
mm |
inch |
mm |
1 Phase | ||||||||
3QGDs1.8-80-0.37 |
0.37 |
0.5 |
1.8 |
80 |
220/380 |
75 |
1 |
563 |
3QGDs1.8-100-0.55 |
0.55 |
0.75 |
1.8 |
100 |
623 |
|||
3QGDs1.8-130-0.75 |
0.75 |
1 |
1.8 |
130 |
683 |
|||
