Cheap & Newest 4Fsm100 stainless steel centrifugal pump
Specifications
1.100% Copper Wire
2, oil-filled motor
3. brass impeller
4, Stainless steel outlet
5, Cast Iron Oil Chamber
6.CE certificate
Techanical Datas
8Qmax: 3 (m3/h)
8Total head 57 (m)
Motor
8Rewindable oil-filled motor.
8Adopted the NEMA standard.
8Insulation class : B
Protection grade: IP 68
8Maximum diameter :Φ95mm
8Highest temperature of liquid : 35 °C
8International standard: IEC 60335-1 IEC 60335-2-41.
* Power: 1HP-2HP 1 phase or 3 phase
Application:
8For water supply from wells or reservoirs.
8For domestic use,for civil and industrial applications.
8For sprimking and flow irrigation plants.
8These pumps are designed to lift water form wells of size 4''

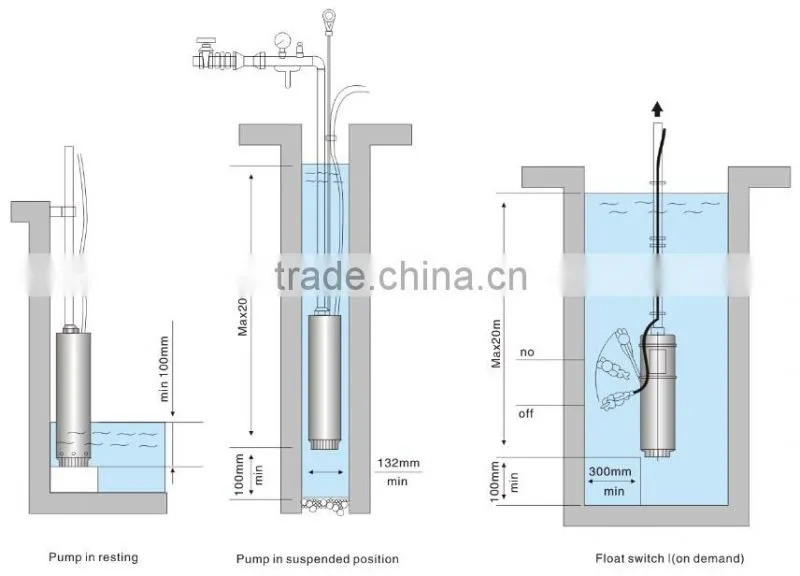

-Operating conditions:
8Water temperature up to 35 °C
8Maximum sand content: 0.25%
8Minimum international diameter of well: 4''
8Maximum immersion depth: 80m.
-Materials:
8Pump casing: AISI 304 stainless steel
8Impeller: Brass
8Diffuser: Plastic ( PPO)
8Non-return valve: Plastic (PPO).
8Inlet and Outlet: stainless steel
8Shaft AISI 304 stainless steel.
8Motor casing: AISI 304 stainless steel.
8Mechanical seal: tungsten carbides.

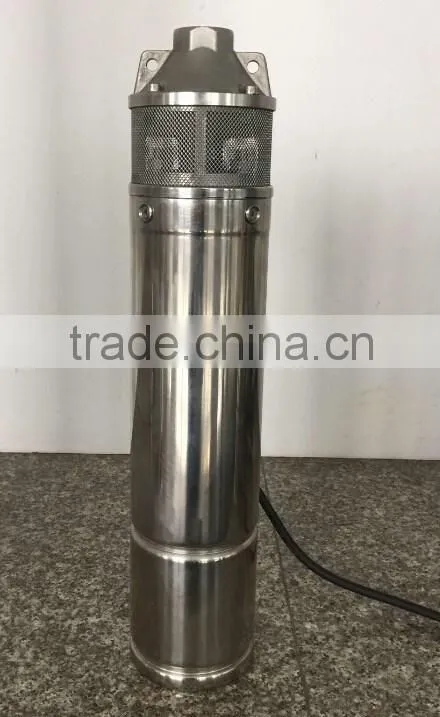

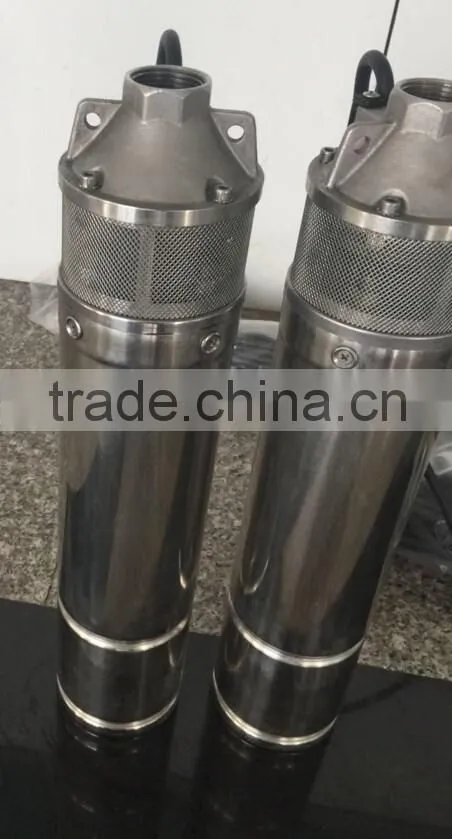

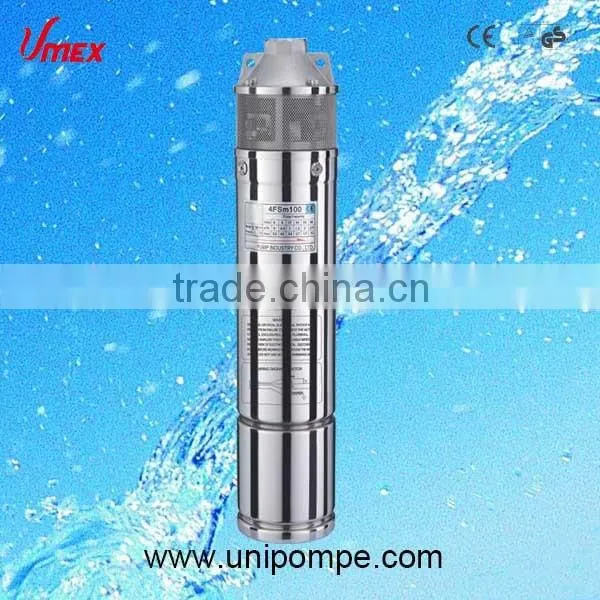

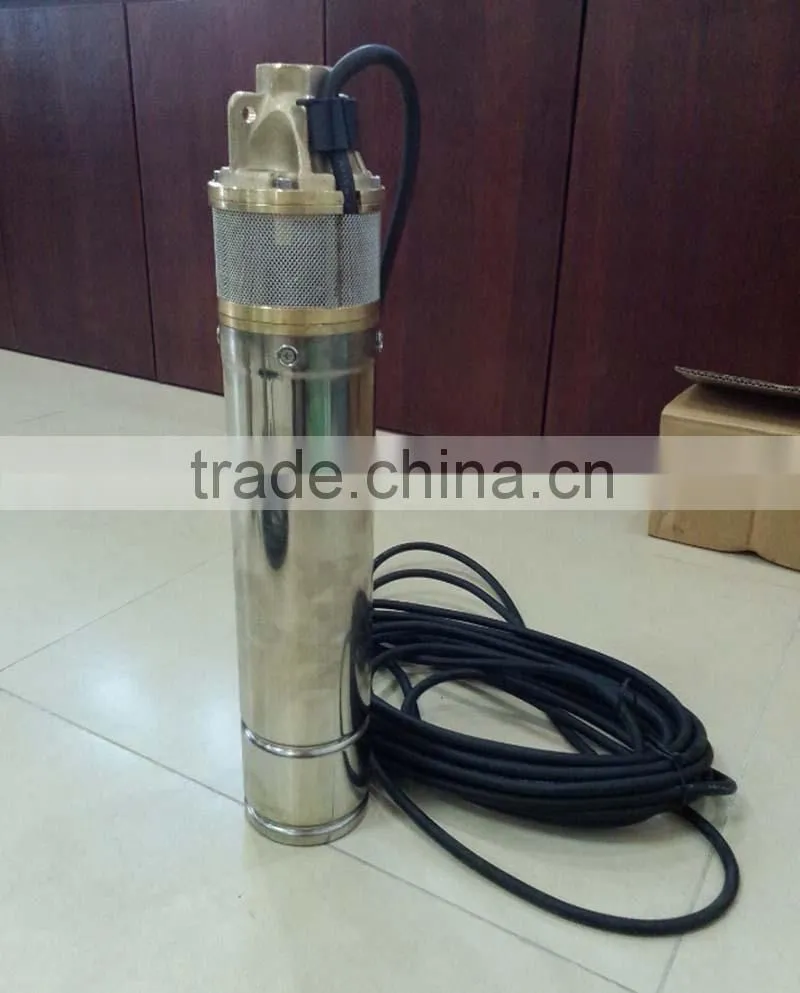

Product Pictures
(1)Stainless steel Outlet (1) Brass Outlet
(2) Cast Iron oil Chamber (2) Brass oil Chamber
(3) Brass impeller (3) Brass impeller
(4) Cheaper

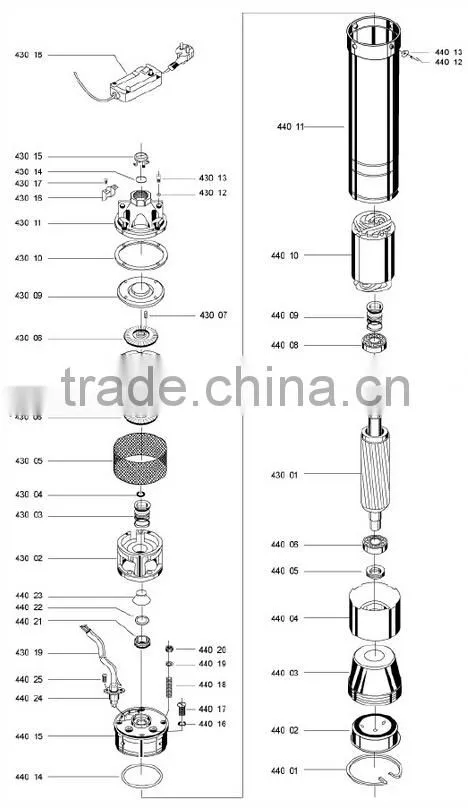

Parts List
Performance Chart:

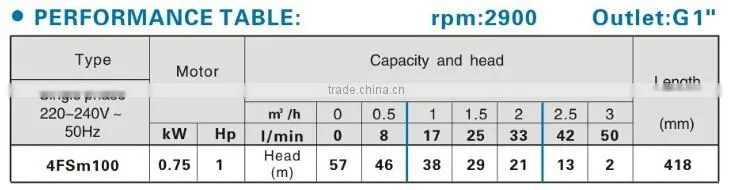

Techanical Parameters

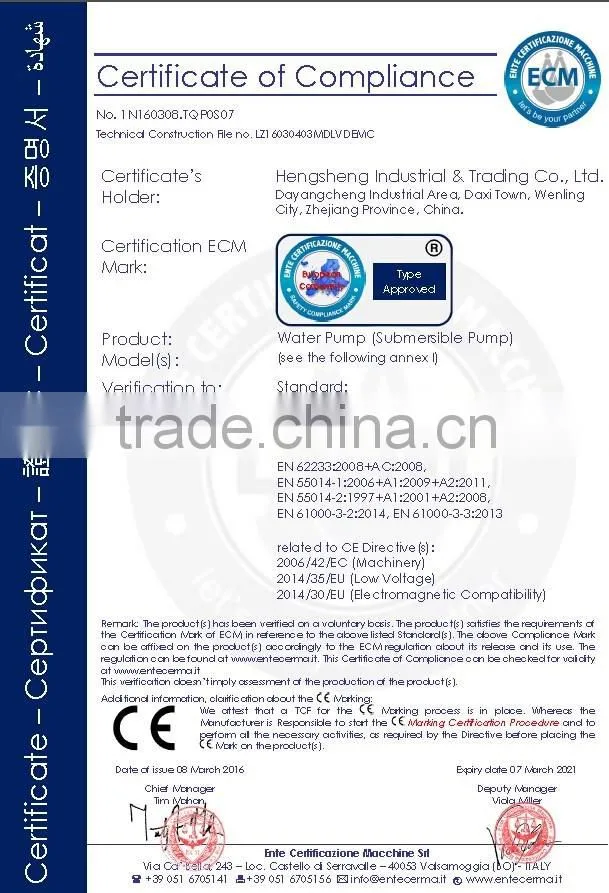

Certificate:
