Specifications
multistage pump1.100% Copper Wire
2,rewindable oil-filled motor
3.High efficiency
4.CE certificate

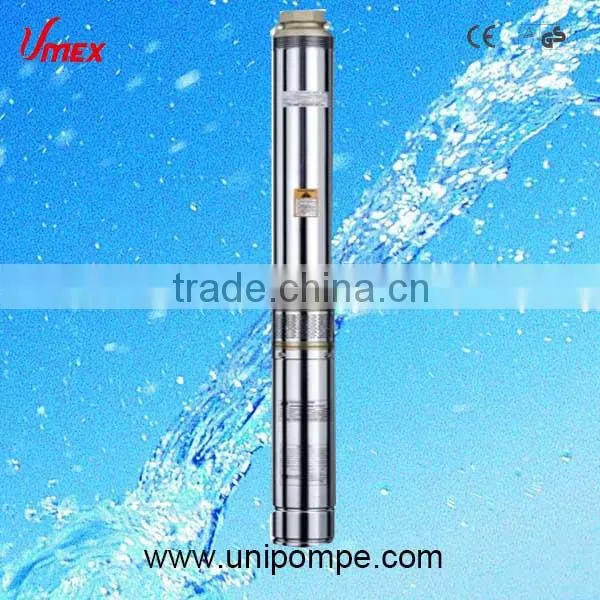

4" deep well water pump, stainless steel multistage pump
Specifications
Multistage pump
1.100% Copper Wire
2,rewindable oil-filled motor
3.High efficiency
4.CE certificate
Techanical Datas:
-PUMP(4SR2)
8Qmax: 4.5 (m3/h)
8Capacity from 1.5 to 2.5 (m3/h)
8Total head from 406 to 18 (m)
-PUMP(4SR3)
8Qmax: 5 (m3/h)
8Capacity from 2.5 to 3.5 (m3/h)
8Total head from 450 to 13 (m)
-MOTOR
8Rewindable oil-filled moter.
8Adopted the NEMA standard.
8Insulation class : B
Protection grade: IP 68
8Maximum diameter :Φ98mm
8Highest temperature of liquid : 35 °C
8International standard: IEC 60335-1 IEC 60335-2-41.
* Power: 0.25KW to 2.2 KW (1 PHASE)
1.1KW to 5.5KW (3 PHASE)
-Application:
8For water supply from wells or reservoirs.
8For domestic use,for civil and industrial applications.
8For sprimking and flow irrigation plants.
8These pumps are designed to lift water form wells of size 3'',3.5'',4'',5'',6'' up to maximum.
-Operating conditions:
8Water temperature up to 35 Cent.Degree.
8Maximum sand content: 0.25%
8Minimum international diameter of well: 4''.
8Maximum immersion depth: 80m.
-Materials:
8Pump casing: AISI 304 stainless steel
8Impeller: plastic (PPO)
8Diffuser: plastic (PC)
8Non-return valve: plastic (PPO).
8Inlet and Outlet: brass/stainless steel/cast iron.
8Shaft AISI 304 stainless steel.
8Motor casing: AISI 304 stainless steel.
8Mechanical seal: tungsten carbides.
