Specifications
3.5 inch stainless steel submersible pump1. Oil-filled motor
2. brass/stainless steel outlet
3. power 0.25~1.5kw

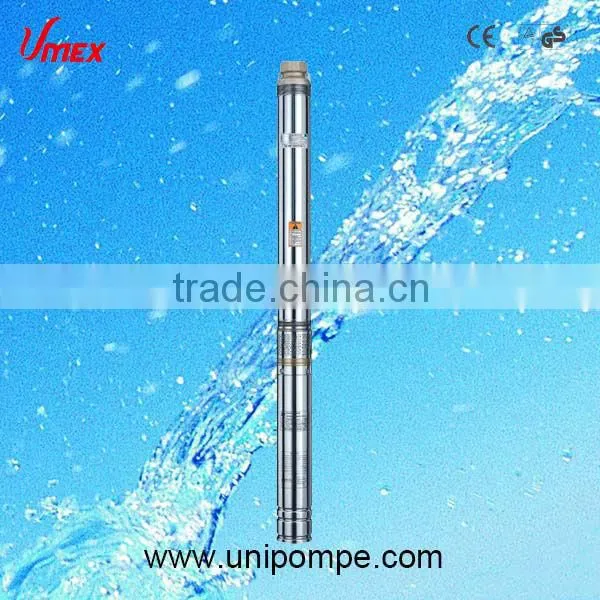

3.5" (90QJ-S) STAINLESS STEEL SUBMERSIBLE PUMP
- Motor
Rewindable oil-filled motor
Power : 0.25 to 1.5 KW (Single phase)
Insulation class : B
Protection grade: IP 68
Maximum diameter : 83mm
Highest temperature of liquid : 35 °C
International standard: IEC 60335-1 IEC 60335-2-41.
-Application
For water supply from wells or reservoirs.
For domestic use,for civil and industrial applications.
For sprimking and flow irrigation plants.
These pumps are designed to lift water form wells of size 3'',3.5'',4'',5'',6'' up to maximum.
-Operating conditions
Water temperature up to 35 Cent.Degree.
Maximum sand content: 0.25%
Minimum International diameter of well: 3.5''.
Maximum immersion depth: 80m.
-Materials
Pump casing: AISI 304 stainless steel
Impeller: plastic (PPO)
Diffuser: plastic (PC)
Non-return valve: plastic (PPO).
Inlet and Outlet: brass/stainless steel/cast iron.
Shaft AISI 304 stainless steel.
Motor casing: AISI 304 stainless steel.
Mechanical seal: tungsten carbides.
WARRANTY: 1 YEAR (according to our general sales conditions)
8Single phase 240V/50Hz, 220V/60Hz, 110V/60Hz, 127V/60Hz are available on request.

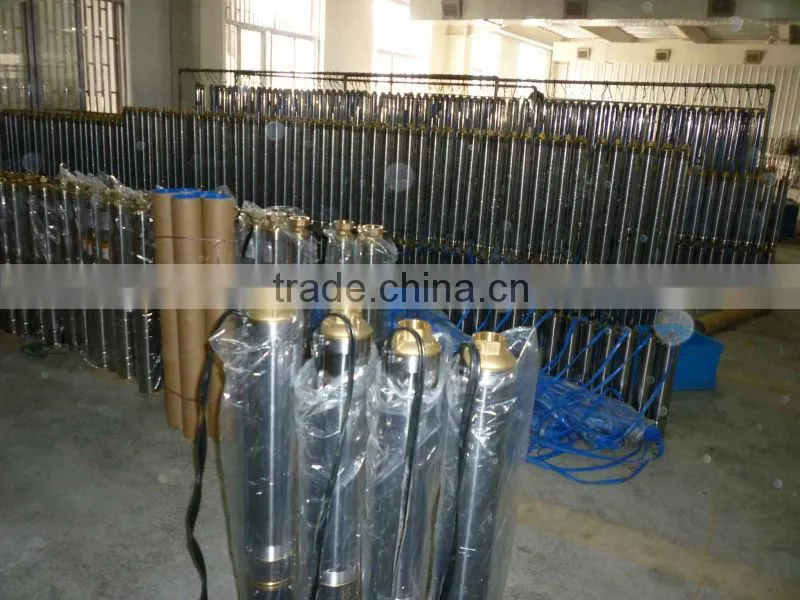

Production Process Scheme
CERTIFICATE
