Specifications

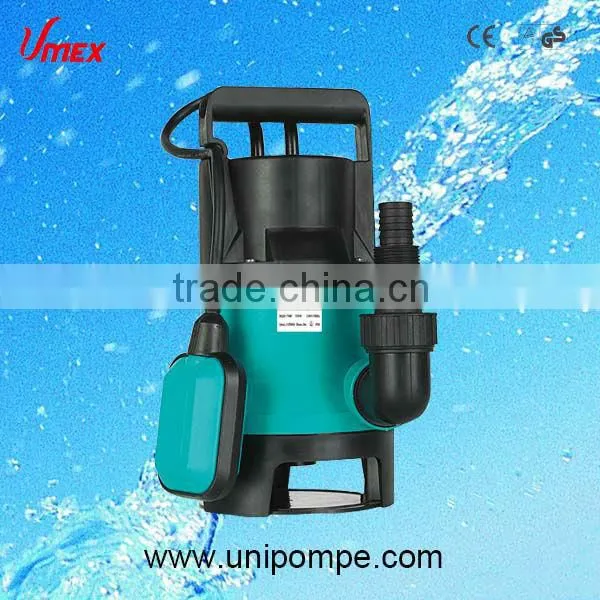

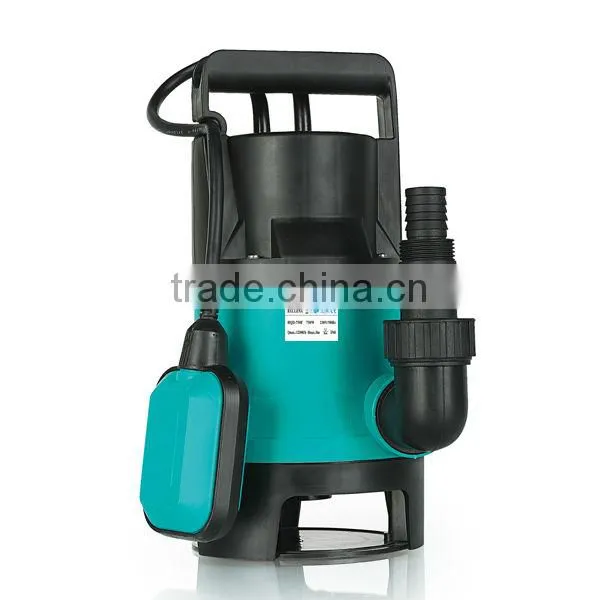

SP series portable garden submersible pumphigh efficiency
Ideal household electric pump with automatic switch
top quality
SP06400 SERIES GARDEN SUBMERSIBLE WATER PUMP,DIRTY WATER PUMP
LIMITS OF USE
8Max grain size:35mm
8Liquid temperature up to +35°C
8Protection:IP X8
MATERIALS
8Pump body: Plastic.
8Impeller: Plastic.
8Motor :Closed,externally ventilated
8Insulation class:B(Class F if required)
8Protection class:IP68
8Duty:Continuously rated
8Mechanical seal:ceramic/graphite.
WARRANTY: 1 YEAR (according to our general sales conditions)
MODEL |
V&Hz |
POWER |
MAX. HEIGHT |
MAX. DEPTH |
MAX. PUMP RATE |
CABLE
|
LENGTH OF CABLE |
N.W |
PACKING DIMENSION |
|
|
(w) |
(m) |
(m) |
(L/H) |
|
(m) |
(K.g) |
(cm) |
SP06400 |
230V/50HZ,115V/60HZ |
400 |
5 |
5 |
7500 |
H05RN-F3G0.75mm² |
10 |
3.8 |
22*16*34 |
SP06550 |
230V/50HZ,115V/60HZ |
550 |
7 |
7 |
10500 |
H05RN-F3G1.0mm² |
10 |
4.3 |
22*16*34 |
SP06750 |
230V/50HZ,115V/60HZ |
750 |
8 |
7 |
12500 |
H07RN-F3G1.0mm² |
10 |
4.625 |
22*16*37 |
SP06900 |
230V/50HZ,115V/60HZ |
900 |
8.5 |
7 |
14000 |
H07RN-F3G1.0mm² |
10 |
5 |
22*16*37 |
SP061100 |
230V/50HZ,115V/60HZ |
1100 |
9 |
7 |
15000 |
H07RN-F3G1.0mm² |
10 |
5.5 |
22*16*37 |
8230V/50Hz & 115V/60Hz are available on request.

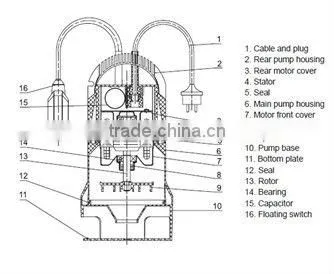

PRODUCTION PROCESS SCHEME:
