60Hz Vertical Electric Inline Fire Fighting Jockey Pump
Pump Features
CV, CVF are non-self priming vertical multistage centrifugal pump, the pumps are available with standard motor, the inlet and outlet are located at the pump bottom at the same plane (inline type).
All pumps are equipped with a maintenance-free mechanical seal set of the cartridge type.
Motor
CV, CVF are fitted with a totally enclosed fan-cooled, 2-pole, three-phase standard motor.
From 0.37Kw to 2.2Kw, are also available with single-phase motor.( 1*220V-230V/240V)
Motor Protection
(1) single phase motor have a built-in thermal overload switch.
(2) Three-phase motor must be connected to a motor protective circuit breaker according to local regulations.
Ambient Temperature
Ambient temperature: maximum +40°c

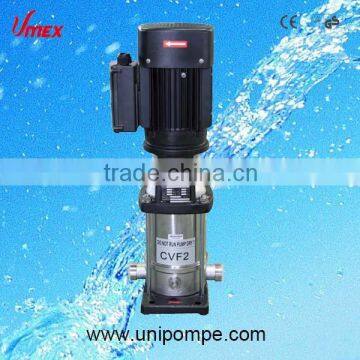

Pictures

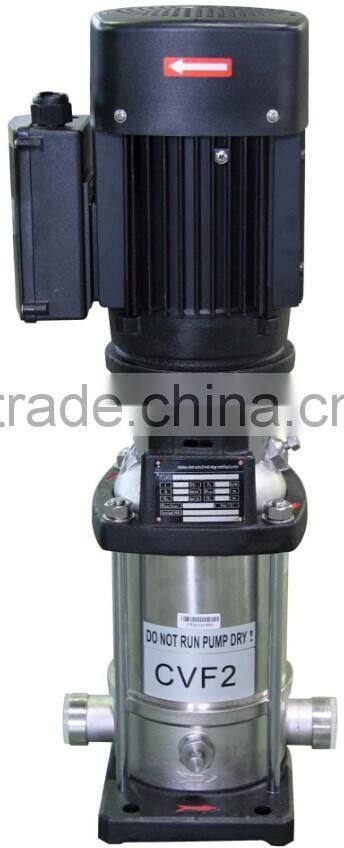

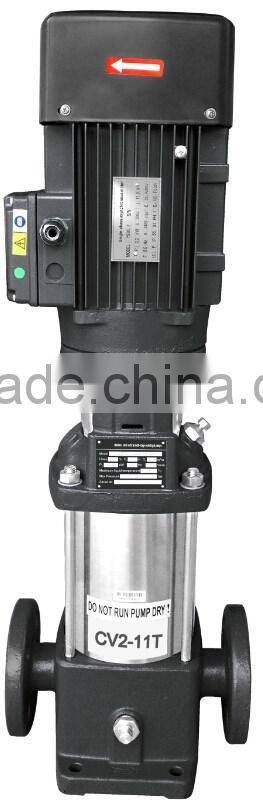

CV2 SERIES CVF2 SERIES

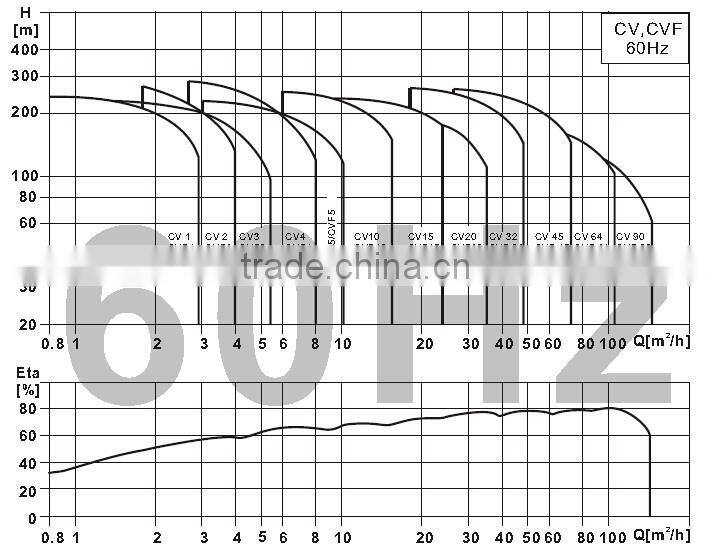

Performance Range

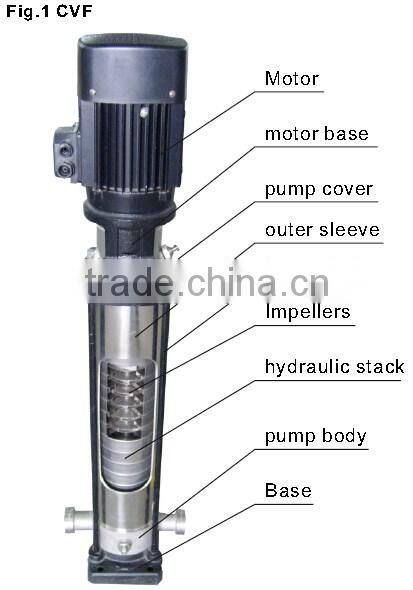

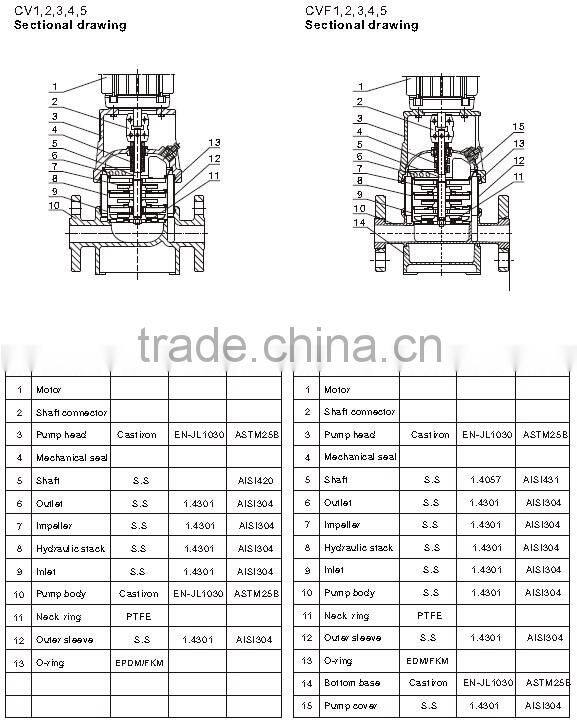

Construction

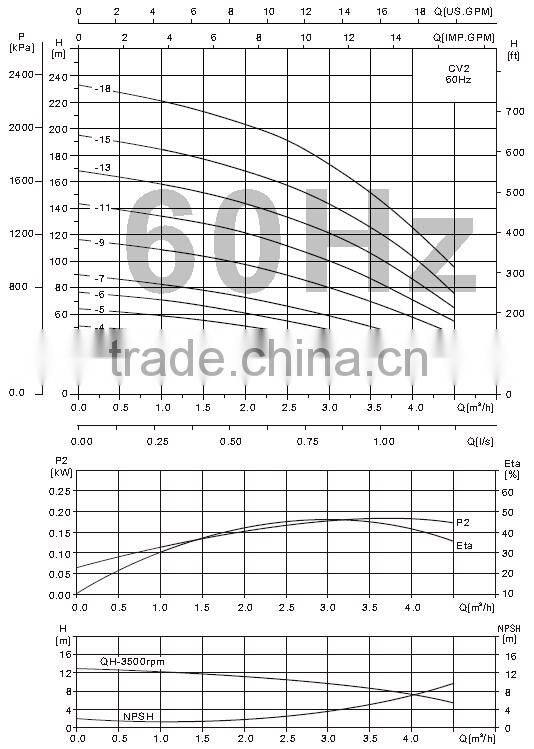

CV2/ CVF2 Performance Curve

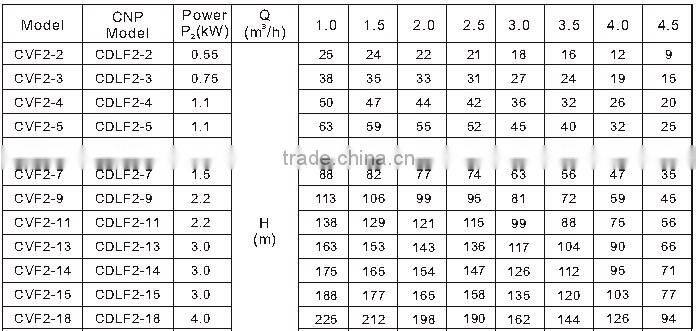

CV2/ CVF2 Performance Table

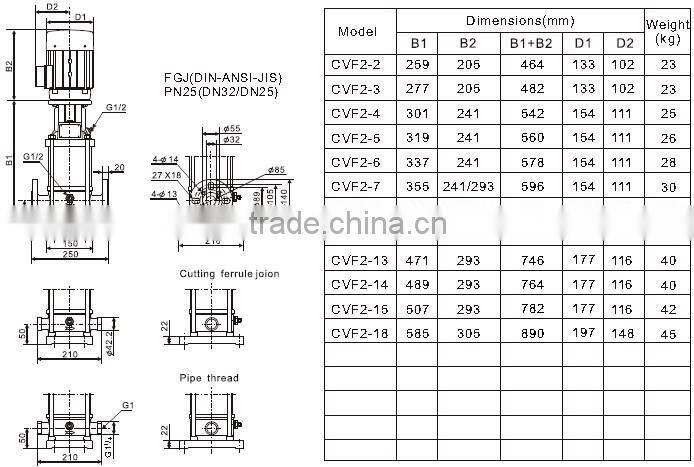

CV2/ CVF2 Installation Sketches Dimenstions and Weight
