60Hz vertical centrifugal pump jockey pump
Pump Features
CV, CVF are non-self priming vertical multistage centrifugal pump, the pumps are available with standard motor, the inlet and outlet are located at the pump bottom at the same plane (inline type).
All pumps are equipped with a maintenance-free mechanical seal set of the cartridge type.
Motor
CV, CVF are fitted with a totally enclosed fan-cooled, 2-pole, three-phase standard motor.
From 0.37Kw to 2.2Kw, are also available with single-phase motor.( 1*220V-230V/240V)
Motor Protection
(1) single phase motor have a built-in thermal overload switch.
(2) Three-phase motor must be connected to a motor protective circuit breaker according to local regulations.
Ambient Temperature
Ambient temperature: maximum +40°c
Pictures

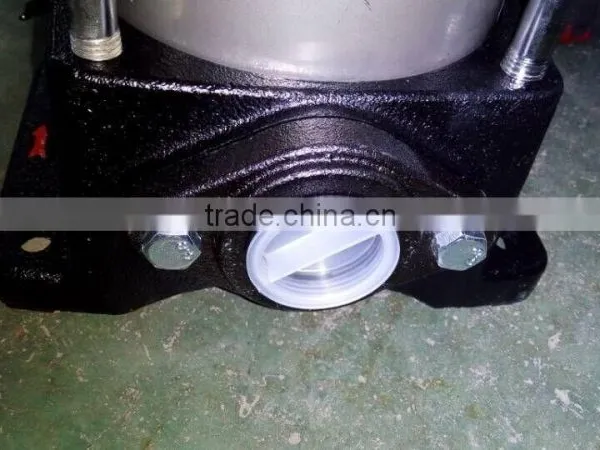

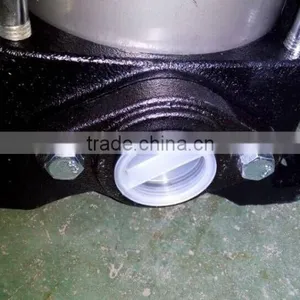

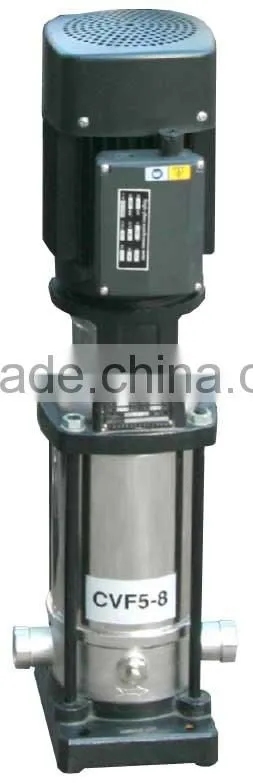

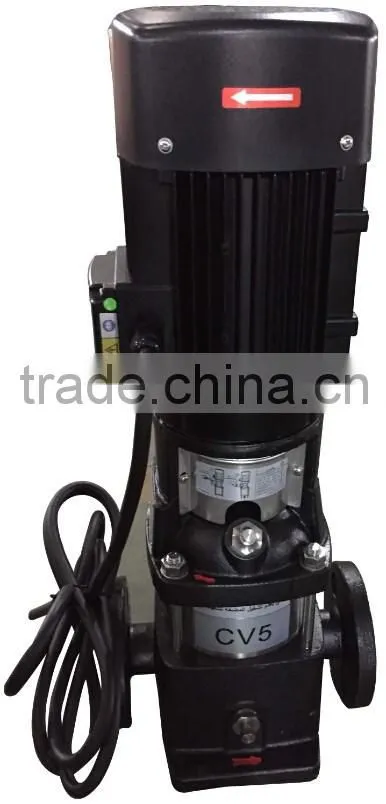

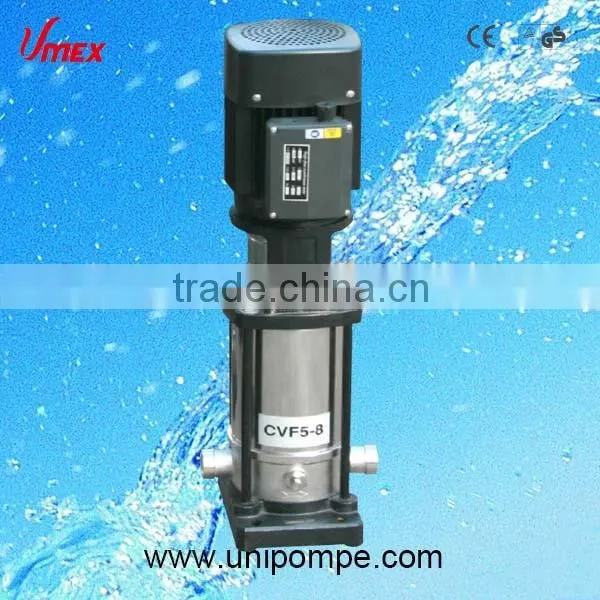

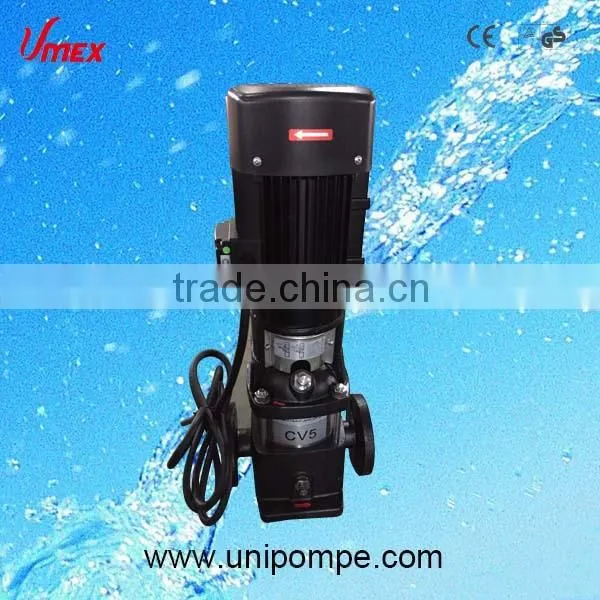

CV5 Series ( Oral flange) CVF5 Series ( SS screw connection)
Performance Range
Construction

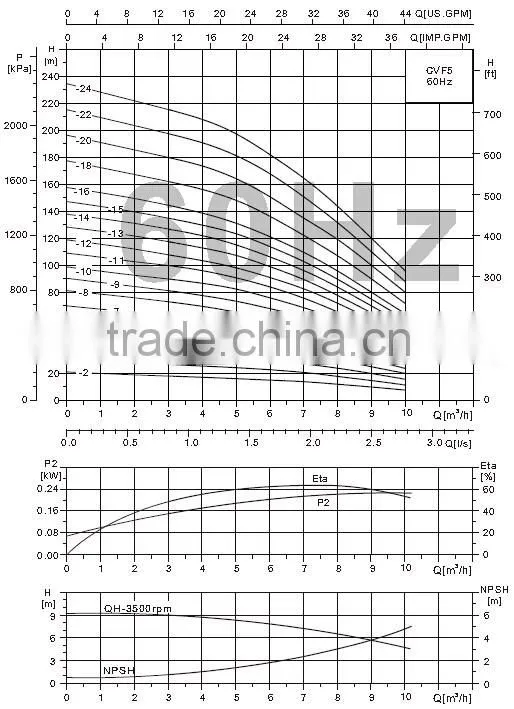

CV5 / CVF5 Performance Curve

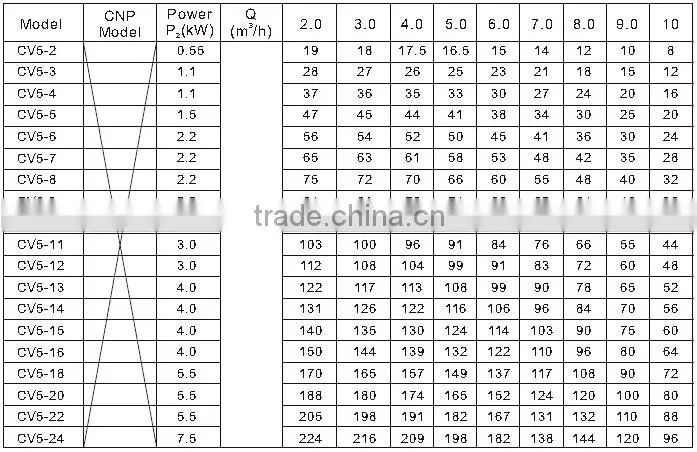

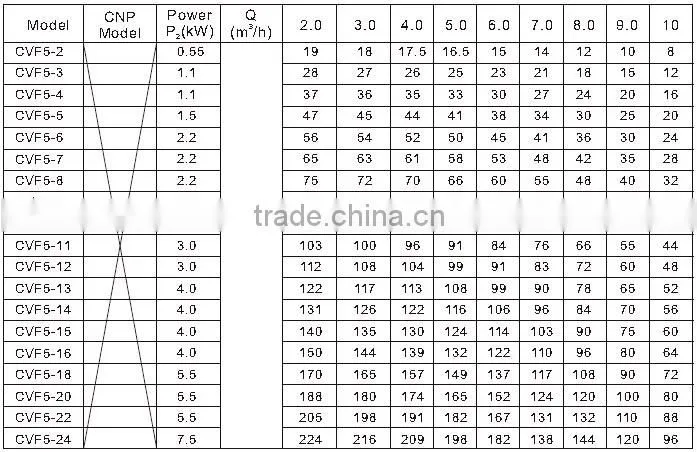

CV5/ CVF5 Performance Table

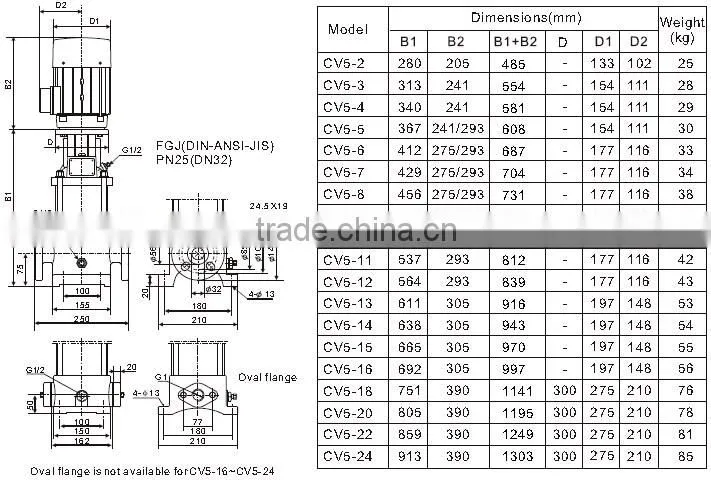

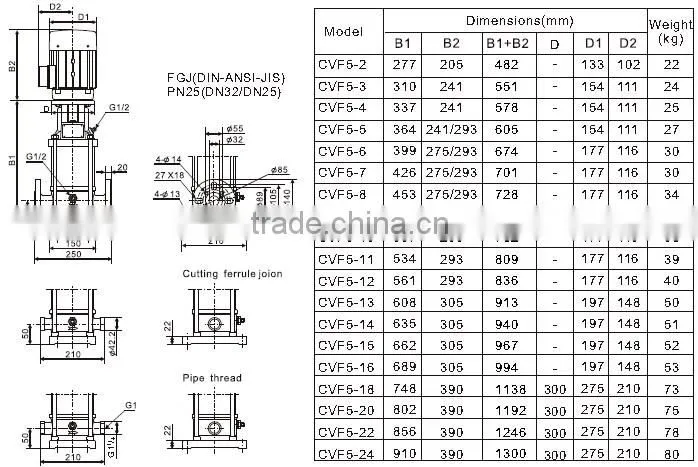

CV4/ CVF4 Installation Sketches Dimenstions and Weight
