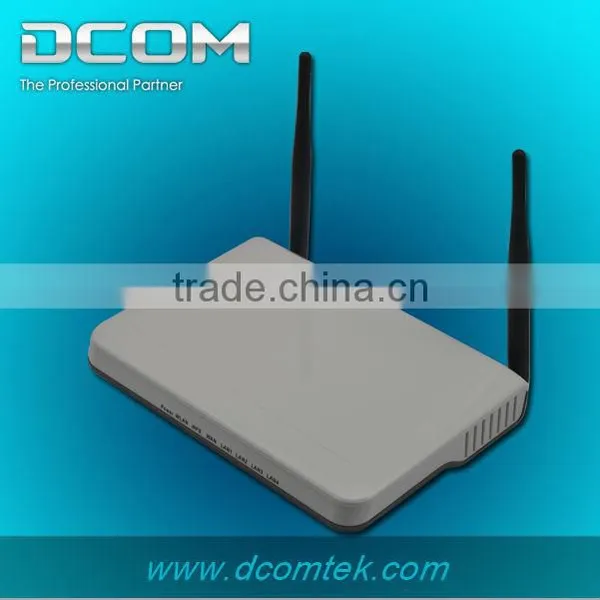

Wifi ADSL router broadband wireless modem

FOB Price

USD $15 - $20 / Piece

1000 Pieces(Min.Order)

Supply Ability 1000000 Piece / Pieces per Month
Port Shenzhen or Hongkong
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Products Status:	Stock	Type:	Wireless	Application:	Soho
Function:	Firewall, QoS, VPN, Other, Firewall, QoS, VPN, WAP	LAN Ports:	4	WAN Ports:	1
Certification:	CE,FCC,ROHS	Brand Name:	OEM	Model Number:	DWA-N223B
Place of Origin:	Guangdong, China

Product Description

Specifications

1.Wireless speed 303Mbps, Great for on-line gaming, making Internet call or video streaming
2.ADSL,Wireless router in one

Software Specification
ADSL Features	Full-rate ANSI T1.413 Issue 2
	ITU-T G.992.1 (G.dmt)
	ITU-T G.994.1 (G.hs)
	ITU-T G.992.3 (G.lite.bis)
	ITU-T G.992.5
	Max 6 kilometers
Data Rates	Downstream: Up to 24Mbps
Data Rates	Upstream: Up to 1.5Mbps
ATM Features	UNI 3.1,ATM Adaptation Layer Type 5-AAL5
	Multiprotocol encapsulation over ATM (RFC 1483)
	UBR, CBR, VBR-rt, VBR-nrt
	Supports 8PVCs
PPP Features	PPP over ATM (RFC 2364)
PPP Features	PPP over Ethernet (RFC 2516)
Switching Features	IGMP multicast
Switching Features	IEEE 802.1d transparent learning bridging
Routing Features	Classical IP and ARP over ATM (RFC 1577/2225), MER
	Static Routing, IP, TCP, UDP, ARP
	NAT, NAPT, DNS, DDNS, DHCP Server
	UPnP, Virtual Server, DMZ, Port Trigger
Wireless Features	Complies with IEEE802.11n ¹, IEEE 802.11g, IEEE802.11b
	11n: Up to 300Mbps(dynamic)
	Security: WEP 64bit/128bit , WPA-PSK/WPA2-PSK , WPA/WPA2
	Provides 64/128bit WEP encryption security and wireless LAN ACL (Access Control List)
	Max wireless transmit power: 17dbm
	Antenna gain: 2dbi
	Frequency Range:2.4~2.4835GHz
Security	NAT and SPI Firewall
	IP Filtering
	MAC filtering
	Parental control
IPSec VPN	Support up to 10 IPSec VPN tunnels
VPN Pass Through	IPSec/PPTP Pass-through
QoS	IP Type of service(ToS)
Device Management	HTTP
	Administration and operation software (firmware) upgradable locally by web(HTTP)
	CWMP(TR-069)
Hardware Specification
Ports	4 10/100M LAN Ports(RJ45)
Ports	1 Line Port(RJ11)
LED Indicators	Power, Internet, ADSL, WLAN, LAN1~4,QSS
Dimensions (WDH)	6.94.71.1 in.(17412028.8 mm)
Environment	Operating Temperature: 0^oC~40^oC (32^oF~104^oF)
	Storage Temperature: -40^oC~70 ^oC(-40^oF~158^oF)
	Operating Humidity: 10%~90% non-condensing
	Storage Humidity: 5%~90% non-condensing
