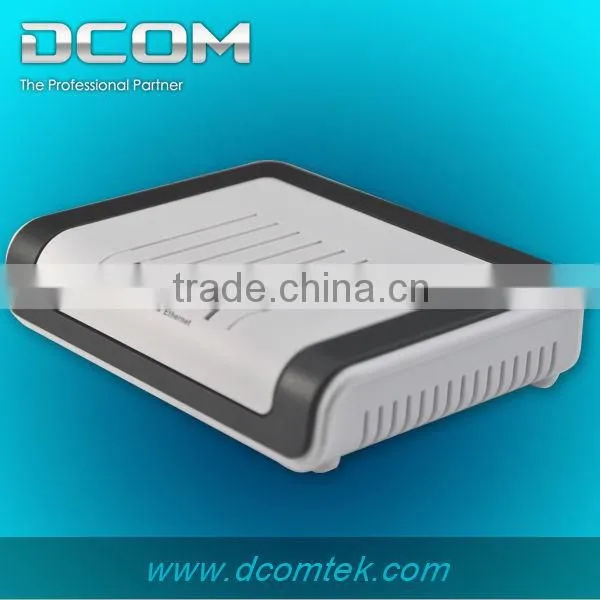

1 Port USB ADSL 2/2+ Modem Router

US$ 11 - 13 MOQ: 1000 Pieces

Key Specifications

Products Status:

Stock

Style:

External

Type:

Wireless

Shenzhen Dcom Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Products Status Stock

Style External

Type Wireless

Interface Type Other, USB+RJ45

Transmission Rate Other, 24Mbps

Certification CE,FCC,ROHS

Brand Name OEM

Model Number DLM-100BU

Place of Origin Guangdong, China

Specifications

1.ADSL Connection Speed up to 24Mbps Downstream
2.Multiple PVC up to 8 support
3.USB Plug-and-Play installation

Software Specification
ADSL Features	Full-rate ANSI T1.413 Issue 2
	ITU-T G.992.1 (G.dmt)
	ITU-T G.992.2 (G.lite)
	ITU-T G.994.1 (G.hs)
	ITU-T G.992.3 (G.dmt.bis)
	ITU-T G.992.5
	Max 6 kilometers
Data Rates	Downstream: Up to 24Mbps
Data Rates	Upstream: Up to 3.5Mbps (With Annex M enabled)
ATM Features	UNI 3.1,ATM Adaptation Layer Type 5-AAL5
	Multiprotocol encapsulation over ATM (RFC 1483)
	UBR, CBR, VBR-rt, VBR-nrt
	Supports 8PVCs
PPP Features	PPP over ATM (RFC 2364)
PPP Features	PPP over Ethernet (RFC 2516)
Switching Features	IEEE 802.1d transparent learning bridging
Routing Features	Classical IP and ARP over ATM (RFC 1577/2225), MER
	Static routing, IP, TCP, UDP, ARP
	NAT, NAPT, DNS, DDNS, DHCP Server
	UPnP, Virtual Server, DMZ, Port Trigger
Security	NAT
	IP filterling
	MAC filtering
	Parental control
VPN Pass Through	IPSec/PPTP/L2TP Pass-through
QoS	IP Type of service(ToS)
QoS	802.1p
Device Management	HTTP, TELNET, Console
	Administration and operation software (firmware) upgradable locally by web(HTTP), console(TFTP)
	SNMP

Hardware Specification
Ports	1 10/100M LAN Port(RJ45)
	1 Line Port(RJ11)
	1 USB 1.1 port
LED Indicators	USB, LAN, ADSL, Alarm, ACT, Power
Dimensions (WDH)	6.54.31.1 in.(16510828 mm)
Environment	Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
