Help CenterPSC DC 12V Axial Fan High Cfm With UL & CE for Computers and Network Technology
Related Products
-
PSC DC Axial Fan 120x120x32mmNegotiableMOQ: 200 Pieces -
PSC DC Axial Flow Fan 172x51mmNegotiableMOQ: 200 Pieces
-
Superpower! PSC 12v Cooling Fan DC Fan Motor: 8038mm For Computer CaseNegotiableMOQ: 200 Pieces
-
DC Ventilation Axial Fan 280x80mmUS$ 40 - 60MOQ: 200 Pieces
-
PSC DC Axial Flow Fan:25*25*10mm 12v With CE & UL ForData Center - Evaporative CoolingUS$ 1 - 5MOQ: 1000 Pieces
Specifications
1.Reliable Quality & Reasonable Price2.Top Performance & Long Life
3.Energy-saving & Cost-effective
4.CE, UL
5.USA Brand

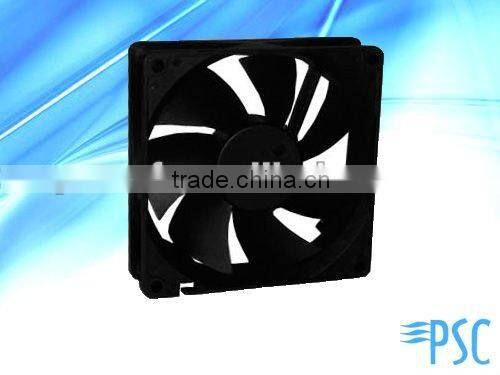

PSC DC 12V Axial Fan high cfm with UL & CE for Computers and Network Technology -------PSCMF MOTOR & FAN INC.
Company profile
PSC Motor and Fan is an American company specialized in Thermal Solution since 1993, and its main products are DC/AC/EC Impeller, Centrifugal Fan, Axial Fan, Blower and CPU Cooler.
PSC has been a major supplier to HP Compaq, IBM, ATI, Cisco Systems, and Rockwell Automation, APC (American Power Conversion, SGI , Flextronics and other many well-known companies in the world.
Key Features
–HP-force
The new HP-force fans with their extremely high blower capacity of up to 950 m3/h and pressure build-up of up to 1200 pascals are capable of dealing with the extreme heat load. If needed, these fans can produce up to 100% more output under full load and they work with a much broader delivery bandwidth than current models. This makes them ideal for equipment and systems with a high density of components. Thanks to intelligent motor features, they can be individually adapted for any application.
The HP-force series is the most powerful product series on the market. HP-force stands for the highest innovation in motor technology, fluid mechanics and electronics. The one-of-a-kind power density of the products requires special attention to the application at the customer's facility.
– Compact dimensions
– Wide selection of models, dimensions and air performance levels
– Optimum efficiency and noise level due to well-engineered aerodynamic design of the fan blades
– High-efficiency, energy saving
– High reliability and service life
– Wide range of accessories, including guard grilles, basket guard grilles and wall rings
– Wide variety of monitoring and control functions enable customer oriented and demand-oriented fan operation
– Various protective mechanisms against ambient influences such as dust, humidity, water and salt
– The axial fan is dynamically balanced in two planes to DIN ISO 1940
– Numerous approvals, including VDE, UL, CUL and CE
– Applications: Ventilation, air-conditioning and refrigeration technology, automotive industry,
wind power and mechanical engineering/finishing equipment industry
Outline Drowing & base paremeter
| Model | Bearing System | Rated Voltage | Operating Voltage Range | Rated Current | Rated Speed | Maximum Air Flow | Maximum Static Pressure | Sound Level | Weight |
| Part NO. | B / S / F | V | V | A | RPM | CFM | mm-H2O | dBA | g |
| AGE09225_12V | BFS | 12 | 7.0~13.2 | 0.41 | 4,200 | 81.0 | 9.2 | 49.0 | 79 |
| AGE09225_24U | BFS | 24 | 14.0~26.4 | 0.20 | 3,800 | 69.2 | 6.6 | 45.0 | 79 |
| AGE09225_12U | BFS | 12 | 7.0~13.2 | 0.35 | 3,800 | 69.2 | 6.6 | 45.0 | 79 |
| AGE09225_48H | BFS | 48 | 28.0~56.0 | 0.12 | 3,200 | 58.3 | 4.7 | 38.0 | 79 |
| AGE09225_24H | BFS | 24 | 14.0~26.4 | 0.15 | 3,200 | 58.3 | 4.7 | 38.0 | 79 |
| AGE09225_12H | BFS | 12 | 7.0~13.2 | 0.20 | 3,200 | 58.3 | 4.7 | 38.0 | 79 |
| AGE09225_48M | BFS | 48 | 28.0~56.0 | 0.08 | 2,850 | 52.1 | 3.9 | 34.0 | 79 |
| AGE09225_24M | BFS | 24 | 14.0~26.4 | 0.13 | 2,850 | 52.1 | 3.9 | 34.0 | 79 |
| AGE09225_12M | BFS | 12 | 7.0~13.2 | 0.14 | 2,850 | 52.1 | 3.9 | 34.0 | 79 |
| AGE09225_48L | BFS | 48 | 28.0~56.0 | 0.06 | 2,450 | 44.8 | 2.9 | 30.0 | 79 |
| AGE09225_24L | BFS | 24 | 14.0~26.4 | 0.08 | 2,450 | 44.8 | 2.9 | 30.0 | 79 |
| AGE09225_12L | BFS | 12 | 7.0~13.2 | 0.19 | 2,450 | 44.8 | 2.9 | 30.0 | 79 |
| AGE09225_48J | BFS | 48 | 28.0~56.0 | 0.05 | 2,100 | 39.2 | 2.2 | 25.0 | 79 |
| AGE09225_24J | BFS | 24 | 14.0~26.4 | 0.06 | 2,100 | 39.2 | 2.2 | 25.0 | 79 |
| AGE09225_12J | BFS | 12 | 7.0~13.2 | 0.09 | 2,100 | 39.2 | 2.2 | 25.0 | 79 |
| *Function type is optional. | *All reading are typical values at rated voltage | *Specifications are subject to change without notice | |||||||
| * Bearing system B: Two Ball Bearing F: Fluid Bearing S: Sleeve Bearing | |||||||||
