1.Reliable Quality & Reasonable Price2.Top Performance & Long Life
3.Energy-saving & Cost-effective
4.CE, UL
5.USA Brand

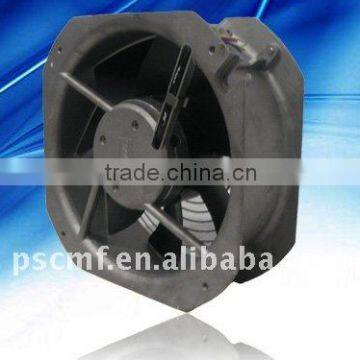

280mm Axial Fan/DC axial flow fan/axial flow impeller
Company Profile
PSC Motor and Fan is an American company specialized in Thermal Solution since 1993, and its main products are DC/AC/EC Backward Curved Impeller, Axial Fan, DC/AC/ECAC Blower and CPU Cooler.
PSC has been a major supplier to HP Compaq, IBM, ATI, Cisco Systems, Rockwell Automation, NCR, APC (American Power Conversion, SGI and other many well-known companies in the world.
Key Features
–HP-force
The new HP-force fans with their extremely high blower capacity of up to 950 m3/h and pressure build-up of up to 1200 pascals are capable of dealing with the extreme heat load. If needed, these fans can produce up to 100% more output under full load and they work with a much broader delivery bandwidth than current models. This makes them ideal for equipment and systems with a high density of components. Thanks to intelligent motor features, they can be individually adapted for any application.
The HP-force series is the most powerful product series on the market. HP-force stands for the highest innovation in motor technology, fluid mechanics and electronics. The one-of-a-kind power density of the products requires special attention to the application at the customer's facility.
– Compact dimensions
– Wide selection of models, dimensions and air performance levels
– Optimum efficiency and noise level due to well-engineered aerodynamic design of the fan blades
– High-efficiency, energy saving
– High reliability and service life
– Wide range of accessories, including guard grilles, basket guard grilles and wall rings
– Wide variety of monitoring and control functions enable customer oriented and demand-oriented fan operation
– Various protective mechanisms against ambient influences such as dust, humidity, water and salt
– The axial fan is dynamically balanced in two planes to DIN ISO 1940
– Numerous approvals, including VDE, UL, CUL and CE
– Applications: Ventilation, air-conditioning and refrigeration technology, automotive industry,
wind power and mechanical engineering/finishing equipment industry
size Ø200 x80mm
| Weight: 2.85kg | ||||||
| Impeller: Metal Sheet | ||||||
| Motor: DC brushless external rotor motor | ||||||
| Rotor: Black paint | ||||||
| Lead Wire: AWG#20 UL 1007 | ||||||
| Insulation: Class A | ||||||
| Safety: In process | ||||||
| Operating Temperature:-20°C~+60°C | ||||||
| SN: 92-2-00 | ||||||
| Listed Model |
Bearing System |
Rated Voltage | Operating Voltage | Rated Current |
Rated Speed |
Power | Air Flow |
Air pressure |
Noise Level |
Available Features (Optional) | ||||
| Part NO. | B / S | VDC | VDC | A | RPM | W | CFM | m3/h | mmH2O | inH2O | dBA | Tachometer Output |
Autorestart | Pulse Width Modulation |
| PI2428080HB2M | B | 24 | 16~28 | 6.40 | 2,300 | 153.6 | 900.7 | 1530.0 | 56.41 | 2.22 | 74 | |||
| PI4828080HB2M | B | 48 | 36~56 | 3.20 | 2,300 | 153.6 | 900.7 | 1530.0 | 56.41 | 2.22 | 74 | |||
