Specifications
High pressure melting furnace ventilation blower :1.Low noise
2.High efficiency
3.Long life
4.ISO9001

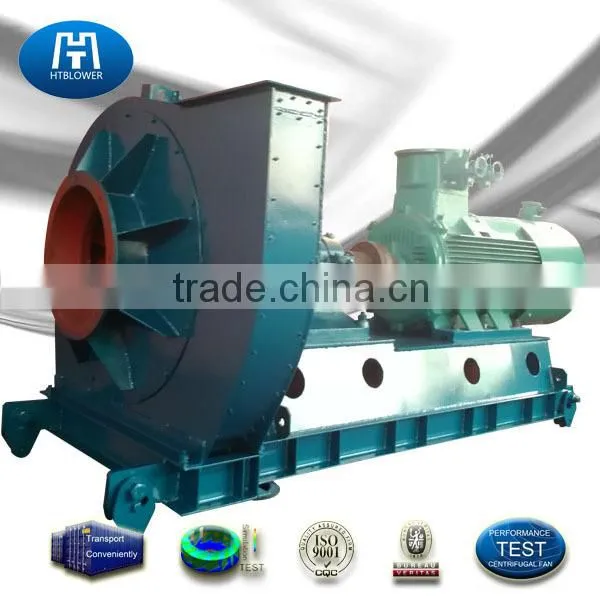

High pressure melting furnace ventilation blower
Hengtong Blower products in each big industry were used as key equipment, among dust removal blower, boiler blower, cement blower, Metallurgy Centrifugal Fan ,melting furnace ventilation blower , environmental protect blower etc were used in industrial and civil fields.
Cement |
Hengtong blower extensive design and manufacturing capabilities enable us to provide a wide range of fans for several applications in cement manufacturing industry ,fans are required for the refinement and blending of materials in pneumatic conveying system as well as exhausting fans for transporting and removing of materials. our pre-engineered and custom heavy duty fans are reliable to control the harsh environments of cement manufacturing industry. |
power generation |
Hengtong blower provide all kinds of air handing products to meet the requirements of power generation industry. We provide fans and blowers that supply, melting furnace ventilation blower .exhaust contain and cool airflow within various applications. From industrial boilers systems and specialty cooling applications to dust collection systems, our pre-engineered and custom heavy duty fans are designed by engineers with power generation applications in mind. |
Boiler system |
According to different applications, boiler system are used for generating steam and electric energy in many different industries, boiler system needs forced draft fans to offer combustion air ,at the same time, induced draft fan remove products of combustion and maintain the required draft. over-fire air fan, primary air and FGR fan are used to circulate gases to different parts of the system. Hengtong blower is a leading provider of pre-engineering and heavy custom duty fans for boiler system. |

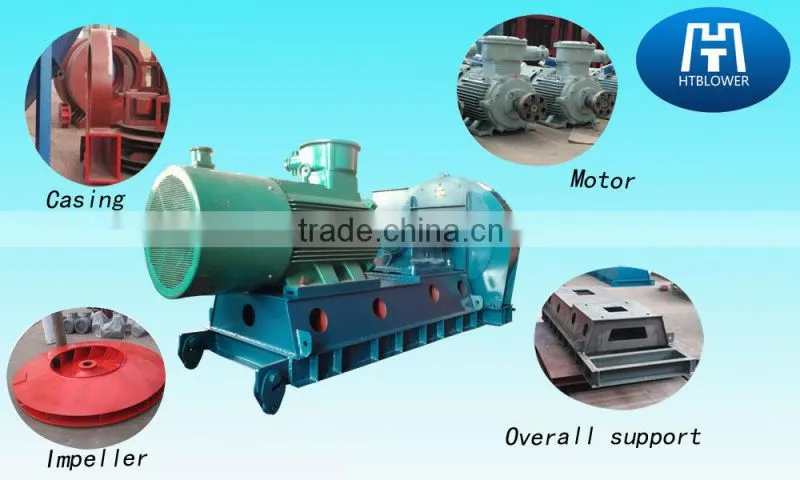

The High pressure melting furnace ventilation blower :
Impeller : Impeller annealed completely eliminate welding stress generated when the structure to ensure that the shape of the impeller does not occur creep and cracks.
Motor: General motor, high voltage, frequency conversion motor or custom is appropriate for your system.
Overall support: Overall support is your installation is very simple and easy operation
Casing: Rugged enclosure design, selection of appropriate electrode for welding high-strength , ensure that housing more durable.
| Application | Temperature | Normal temperature Air | |||
| Hot Air | |||||
| Air composition | Clean air | ||||
| Dusty air | |||||
| Corrosive gas | |||||
| Combustible gas | |||||
| Powder materials | |||||
| Light particle materials | |||||
| Performance | Impeller diameter | 400 | ~ | 3200 | mm |
| Speed of mainshaft | 960 | ~ | 2900 | rpm | |
| Pressure range | 2705 | ~ | 16250 | Pa | |
| 20 | ~ | 122 | mmHg | ||
| 276 | ~ | 1659 | mmH2O | ||
| Flow range | 2198 | ~ | 42409 | m3/h | |
| 3736 | ~ | 72087 | CFM | ||
|
System configuration |
Motor | SIEMENS, ABB, LA… | Can assign | ||
| Impeller | Carbon steel | ||||
| Impeller cone (Air Inlet) | Carbon steel | ||||
| Case | Carbon steel | ||||
| Air damper | Carbon steel | ||||
| Main shaft | High-strength carbon structural steel | ||||
| Bearing | FAG, SKF, ZWZ, C&U… | ||||
| Bearing housing | Cast iron | ||||
| Drivetrain | Coupling | Can assign | |||
| Foundation bolt | Carbon steel | ||||
Our production process of High pressure melting furnace ventilation blower by the Material preparation, Plate forming , Casing welding ,Impeller welding Packaging and shipment complete.
If you are interested in our High pressure melting furnace ventilation blower , Please don't hesitate to contact me !
