Specifications
1. High pressure2. ISO 9001:2008 certification
3. easy to operate
4. prompt delivery

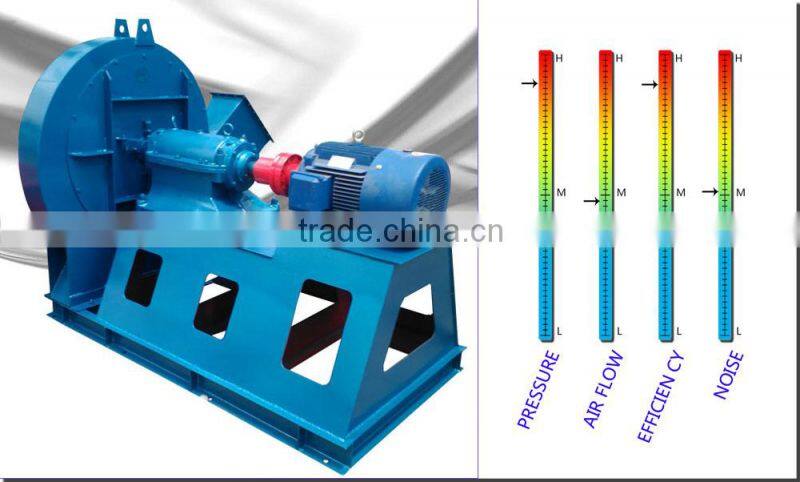

Industrial general single-stage Lime rotary kiln air blower
Welcome To Henan Hengtong Blower CO.,LTD
Hengtong Blower products in each big industry were used as key equipment, among dust removal blower, boiler blower, cement plant dedicated blower, ventilation blower, cooling blower, high temperature blower, environmental protect blower etc were used in industrial and civil fields.
| Application | Temperature | Normal temperature Air | |||
| Hot Air | |||||
| Air composition | Clean air | ||||
| Dusty air | |||||
| Corrosive gas | |||||
| Combustible gas | |||||
| Powder materials | |||||
| Light particle materials | |||||
| Performance | Impeller diameter | 400 | ~ | 3200 | mm |
| Speed of mainshaft | 960 | ~ | 2900 | rpm | |
| Pressure range | 2705 | ~ | 16250 | Pa | |
| 20.2875 | ~ | 121.875 | mmHg | ||
| 276.0204082 | ~ | 1658.163265 | mmH2O | ||
| Flow range | 2198 | ~ | 42409 | m3/h | |
| 3736.189019 | ~ | 72087.37039 | CFM | ||
| System configuration |
Motor | SIEMENS, ABB, LA… | Can assign | ||
| Impeller | Carbon steel | ||||
| Impeller cone (Air Inlet) | Carbon steel | ||||
| Case | Carbon steel | ||||
| Air damper | Carbon steel | ||||
| Main shaft | High-strength carbon structural steel | ||||
| Bearing | FAG, SKF, ZWZ, C&U… | ||||
| Bearing housing | Cast iron | ||||
| Drivetrain | Coupling | Can assign | |||
| Foundation bolt | Carbon steel | ||||

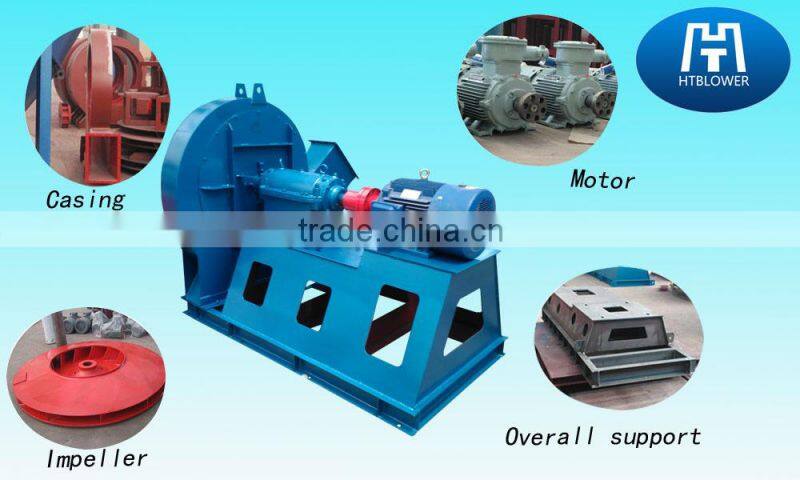

Impeller :Impeller annealed completely eliminate welding stress generated when the structure to ensure that the shape of the impeller does not occur creep and cracks.
Motor:General motor, high voltage, frequency conversion motor or custom is appropriate for your system.
Overall support:Overall support is your installation is very simple and easy operation
Casing: Rugged enclosure design, selection of appropriate electrode for welding high-strength , ensure that housing more durable.
Quality Assurance:
Hengtong's Quality Control programe is backed by a comprehensive Quality
Management System (ISO 9001:2000), deviced at the time of inception and
continuously upgraded. We have in place highly mechanised testing facilities, with procedures laid out to the requirement standards. The test facilities in
place permit the flawless testing of the complete range of our products.
customer visitting
our blower export to Vietnam, Libya, the Philippines, Albania, Romania, Pakistan, India, EU and other countries and regions, which has won the domestic and foreign customers and several design institutes broad trust and praise.
If you are interested in our air blower ,Please don't hesitate to visit our website.
htblower.en.china.cn
We will give you a favorable price. .
