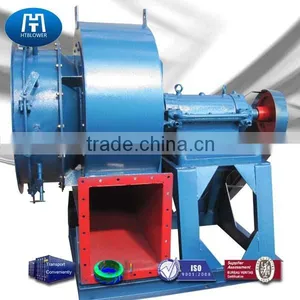

Variable speed Smelting furnace Suction fan blower
- 350 Set / Sets per Month
- Qingdao
- T/T D/P D/A
Product Details
Electric Current Type: | DC | Blade Material: | Cast Iron | Mounting: | Free Standing |
Place of Origin: | Henan, China | Brand Name: | HT Blower | Model Number: | HT Blower XTS-050 |
Power: | 4~315KW | Voltage: | 380~660V, 3~11kV | Air Volume: | 5508~119491m3/h |
Speed: | 730~2550rpm | Certification: | CE, CCC, Other, CE, CCC, ISO9001:2008 | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
wooden package or as customers' requirements
Product Description
Specifications
Variable speed Smelting furnace Suction fan blower:1.Low noise
2.High efficiency
3.Long life
4. ISO9001
Variable speed Smelting furnace Suction fan blower
Hengtong Blower products in each big industry were used as key equipment, among dust removal blower, boiler blower, cement plant dedicated blower, ventilation blower, Smelting furnace Suction fan blower , high temperature blower, environmental protect blower etc were used in industrial and civil fields.

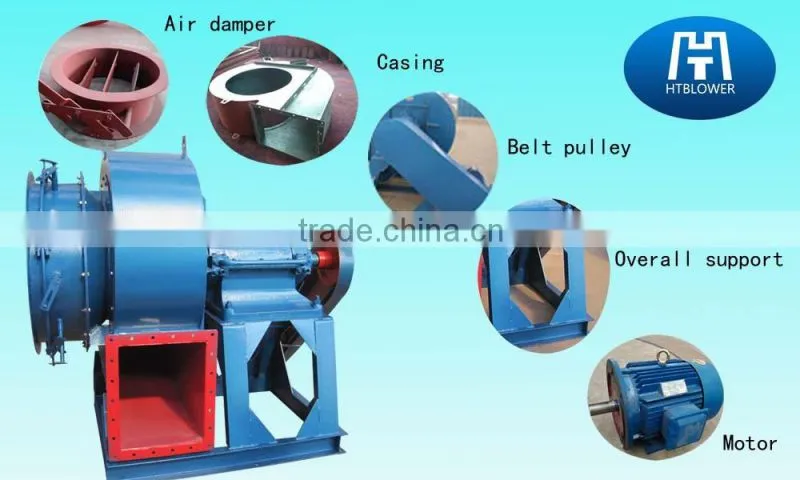

The Variable speed Smelting furnace Suction fan blower :
Impeller :Impeller annealed completely eliminate welding stress generated when the structure to ensure that the shape of the impeller does not occur creep and cracks.
Motor:General motor, high voltage, frequency conversion motor or custom is appropriate for your system.
Overall support:Overall support is your installation is very simple and easy operation
Casing: Rugged enclosure design, selection of appropriate electrode for welding high-strength , ensure that housing more durable.
Belt pulley: The structure is compact save a space ,differential transmission.
Air damper: Through damper adjustment into the internal gas flow, the fan to meet damper can make gas prewhirl effect, to enhance the overall efficiency of the fan.
Application | Temperature | Normal temperature Air | |||
Hot Air | |||||
Air composition | Clean air | ||||
Dusty air | |||||
Corrosive gas | |||||
Combustible gas | |||||
Powder materials | |||||
Light particle materials | |||||
Performance | Impeller diameter | 400 | ~ | 3200 | mm |
Speed of mainshaft | 730 | ~ | 2550 | rpm | |
Pressure range | 402 | ~ | 5358 | Pa | |
3.015 | ~ | 40.185 | mmHg | ||
41.02040816 | ~ | 546.7346939 | mmH2O | ||
Flow range | 5508 | ~ | 119491 | m3/h | |
9362.570117 | ~ | 2013112.3576 | CFM | ||
System configuration | Motor | SIEMENS, ABB, LA… | Can assign | ||
Impeller | Carbon steel | ||||
Impeller cone (Air Inlet) | Carbon steel | ||||
Case | Carbon steel | ||||
Air damper | Carbon steel | ||||
Main shaft | High-strength carbon structural steel | ||||
Bearing | FAG, SKF, ZWZ, C&U… | ||||
Bearing housing | Cast iron | ||||
Drivetrain | Coupling | Can assign | |||
Foundation bolt | Carbon steel |
Our production process of Variable speed Smelting furnace Suction fan blower by the Material preparation, Plate forming , Casing welding ,Impeller welding Packaging and shipment complete.
If you are interested in our Variable speed Smelting furnace Suction fan blower , Please don't hesitate to contact me !
Company Profile
Henan Hengtong Blower Co., Ltd. is a manufacturer of industry blowers with well-equipped testing equipment and strong technical force.
Leading fan products are generally USES centrifugal fan, medium pressure centrifugal fan, high pressure centrifugal fan, high temperature fan, anticorrosive fan, flameproof fan, crops with ventilation fan and axial flow fan, etc., for 10000 tons per day of the dry process cement production lines supporting all kinds of centrifugal and axial flow fan, with an annual capacity of 2 million tons for the cement grinding station supporting all kinds of centrifugal and axial flow fan, for 300000 KWH power plant, the thermal power plant equipped with pulverized coal boiler and circulating fluidized bed boiler drum induced draft fan, for the iron and steel industry sintering machine equipped with sintering flue gas induced draft fan, dust removal fan, ring cooling fan for metallurgical industry of smithing cupola furnace, equipped with high pressure blower, for the new brick kiln waste heat recycling drying kiln equipped with special induced draft fan, for papermaking, textile, wood processing, food processing industry is equipped with all kinds of material conveying fan for various fan equipped with various types of noise, etc
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in steel factories, boiler factories, cement factories, paper mill factories and other industries.
Contact Us
- Henan Hengtong Blower Co., Ltd.
- Contact nameJohn Sun
- Phone86-373-5467001
- AddressFuxing Road, Dazhaoying Town Industry Concentration District, Xinxiang County, Xinxiang, Henan, China (Mainland) Xinxiang,Henan
