Specifications
High temperature Blast furnace centrifugal fan:1.High Air flow
2.High temperature
3.Blast furnace centrifugal fan
3.ISO9001

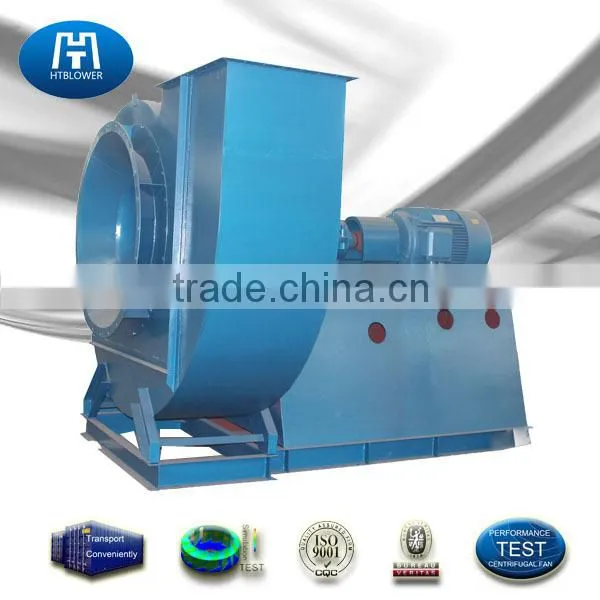

High temperature Blast furnace centrifugal fan
Welcome To Henan Hengtong Blower CO.,LTD
Hengtong Blower products in each big industry were used as key equipment, among dust removal blower, boiler blower, cement plant dedicated blower, Blast furnace centrifugal fan , cooling blower, high temperature blower, environmental protect blower etc were used in industrial and civil fields.
Dust collector |
Hengtong blower is a leading provider of fans and blowers for dust collection applications, our fans are used to supply dirty corrosive air into the system, and exhausting clean air out of the system. whether it is sawdust, metal scraps, or welding smoke, we design and manufacture various pre-engineered and custom heavy duty fans to capture the particles exhausted into the air. |
Cement |
Hengtong blower extensive design and manufacturing capabilities enable us to provide a wide range of fans for several applications in cement manufacturing industry ,fans are required for the refinement and blending of materials in pneumatic conveying system as well as exhausting fans for transporting and removing of materials. our pre-engineered and custom heavy duty fans are reliable to control the harsh environments of cement manufacturing industry. |
Boiler system |
According to different applications, boiler system are used for generating steam and electric energy in many different industries, Blast furnace centrifugal fan.boiler system needs forced draft fans to offer combustion air ,at the same time, induced draft fan remove products of combustion and maintain the required draft. over-fire air fan, primary air and FGR fan are used to circulate gases to different parts of the system. Hengtong blower is a leading provider of pre-engineering and heavy custom duty fans for boiler system. |
Impeller :Impeller annealed completely eliminate welding stress generated when the structure to ensure that the shape of the impeller does not occur creep and cracks.
Motor:General motor, high voltage, frequency conversion motor or custom is appropriate for your system.
Overall support:Overall support is your installation is very simple and easy operation
Casing: Rugged enclosure design, selection of appropriate electrode for welding high-strength , ensure that housing more durable.
| Application | Temperature | Normal temperature Air | |||
| Hot Air | |||||
| Air composition | Clean air | ||||
| Dusty air | |||||
| Corrosive gas | |||||
| Combustible gas | |||||
| Powder materials | |||||
| Light particle materials | |||||
| Performance | Impeller diameter | 400 | ~ | 3200 | mm |
| Speed of mainshaft | 960 | ~ | 4000 | rpm | |
| Pressure range | 2705 | ~ | 15563 | Pa | |
| 20 | ~ | 116 | mmHg | ||
| 276 | ~ | 1588 | mmH2O | ||
| Flow range | 4420 | ~ | 145533 | m3/h | |
| 7513 | ~ | 247378 | CFM | ||
| System configuration |
Motor | SIEMENS, ABB, LA… | Can assign | ||
| Impeller | Carbon steel | ||||
| Impeller cone (Air Inlet) | Carbon steel | ||||
| Case | Carbon steel | ||||
| Air damper | Carbon steel | ||||
| Main shaft | High-strength carbon structural steel | ||||
| Bearing | FAG, SKF, ZWZ, C&U… | ||||
| Bearing housing | Cast iron | ||||
| Drivetrain | Coupling | Can assign | |||
| Foundation bolt | Carbon steel | ||||
Quality Assurance:
Hengtong's Quality Control programe is backed by a comprehensive Quality
Management System (ISO 9001:2000), deviced at the time of inception and
continuously upgraded. We have in place highly mechanised testing facilities, with procedures laid out to the requirement standards. The test facilities in
place permit the flawless testing of the complete range of our products.
customer visitting
our blower export to Vietnam, Libya, the Philippines, Albania, Romania, Pakistan, India, EU and other countries and regions, which has won the domestic and foreign customers and several design institutes broad trust and praise.
If you are interested in our High temperature Blast furnace centrifugal fan ,Please don't hesitate to visit our website.
htblower.en.china.cn
We will give you a favorable price. .
