Specifications
foundry furnace blower :1.High temperature resistance
2.foundry furnace blower
3.Long life
4.ISO 9001

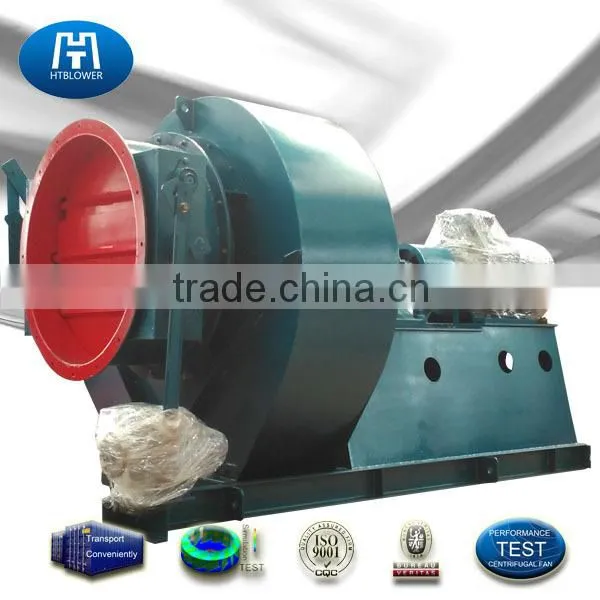

High temperature resistance foundry furnace blower
Cement |
Hengtong blower extensive design and manufacturing capabilities enable us to provide a wide range of fans for several applications in cement manufacturing industry , High temperature resistance foundry furnace blower .fans are required for the refinement and blending of materials in pneumatic conveying system as well as exhausting fans for transporting and removing of materials. our pre-engineered and custom heavy duty fans are reliable to control the harsh environments of cement manufacturing industry. |
Dust collector |
Hengtong blower is a leading provider of fans and blowers for dust collection applications, our fans are used to supply dirty corrosive air into the system, and exhausting clean air out of the system. whether it is sawdust, metal scraps, or welding smoke, we design and manufacture various pre-engineered and custom heavy duty fans to capture the particles exhausted into the air. |
Chemical industrial |
From the petroleum refining to chemical production, Hengtong blower provides pre-engineered and customized heavy duty fans meet the strict requirements in the petrochemical industry . some industries need Chemical plant blower used in heating process, such as the flare stacks,fired heaters,burner systems.in addition to heating systems,fans are also used in pollution control systems like scrubbers and thermal oxidizers within the petrochemical industry. Even in the extreme operating conditions, all of our Chemical plant blower operates with coatings to ensure the system properly and specialty bearings seals to meet the needs of industry standards. |

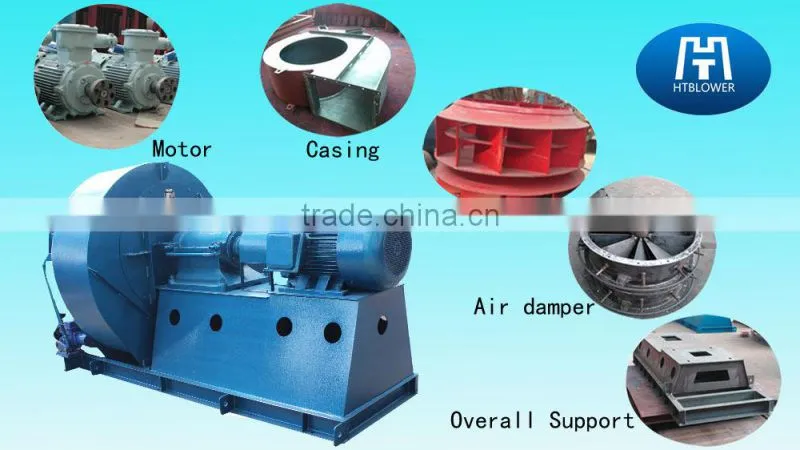

The High temperature resistance foundry furnace blower :
Impeller: Impeller annealed completely eliminate welding stress generated when the structure to ensure that the shape of the impeller does not occur creep and cracks.
Motor: General motor, high voltage, frequency conversion motor or custom is appropriate for your system.
Overall support: Overall support is your installation is very simple and easy operation
Casing: Rugged enclosure design, selection of appropriate electrode for welding high-strength , ensure that housing more durable.
Air damper: Through damper adjustment into the internal gas flow, the fan to meet damper can make gas prewhirl effect, to enhance the overall efficiency of the fan.
| Application | Temperature | Normal temperature Air | |||
| Hot Air | |||||
| Air composition | Clean air | ||||
| Dusty air | |||||
| Corrosive gas | |||||
| Combustible gas | |||||
| Powder materials | |||||
| Light particle materials | |||||
| Performance | Impeller diameter | 400 | ~ | 3200 | mm |
| Speed of mainshaft | 730 | ~ | 2550 | rpm | |
| Pressure range | 402 | ~ | 5358 | Pa | |
| 3.015 | ~ | 40.185 | mmHg | ||
| 41.02040816 | ~ | 546.7346939 | mmH2O | ||
| Flow range | 5508 | ~ | 119491 | m3/h | |
| 9362.570117 | ~ | 2013112.3576 | CFM | ||
|
System configuration |
Motor | SIEMENS, ABB, LA… | Can assign | ||
| Impeller | Carbon steel | ||||
| Impeller cone (Air Inlet) | Carbon steel | ||||
| Case | Carbon steel | ||||
| Air damper | Carbon steel | ||||
| Main shaft | High-strength carbon structural steel | ||||
| Bearing | FAG, SKF, ZWZ, C&U… | ||||
| Bearing housing | Cast iron | ||||
| Drivetrain | Coupling | Can assign | |||
| Foundation bolt | Carbon steel | ||||
Our production process of High temperature resistance foundry furnace blower by the Material preparation, Plate forming , Casing welding ,Impeller welding Packaging and shipment complete.
If you are interested in our High temperature resistance foundry furnace blower , Please don't hesitate to contact me !
