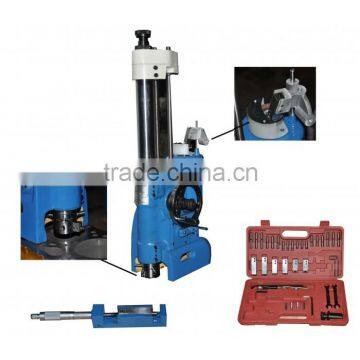

Cylinder Boring Bar With Square Holder T8014S

Cylinder Boring Bar With Square Holder T8014S thumbnail-1
Cylinder Boring Bar With Square Holder T8014S thumbnail-2
Cylinder Boring Bar With Square Holder T8014S thumbnail-3
Cylinder Boring Bar With Square Holder T8014S photo-1
Cylinder Boring Bar With Square Holder T8014S photo-2
Cylinder Boring Bar With Square Holder T8014S photo-3
US$ 1,100 - 1,100 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Place of Origin:
Shanghai, China
Contact Supplier Request Quote Chat Now
Shanghai THL Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not Normal
Place of Origin Shanghai, China
Brand Name THL
Model Number T8014S/T8016S
Voltage 220V/380V
Power(W) 550w
Dimension(L*W*H) 360x345x1100 mm
Weight 100kg
Certification ISO9001:2008
After-sales Service Provided Overseas third-party support available
  • Screw feed with fast retraction
  • Quick, positive, anchoring
  • Three finger centering
  • Special Micrometer
  • Cutter Sharpener
Main specifications
Model
T8014S
T8016S
Boring diameter
Φ65-Φ140 mm
Φ80-Φ165 mm
Max. boring depth
300 mm
400 mm
Spindle speed
250;380 r/min
200;300 r/min
Spindle feed
0.11 mm / r
0.12 mm / r
Spindle rapid reset
636 mm / min
780 mm / min
Motor
Voltage
220/380 V
220/380 V
Power
0.25/0.37 Kw
0.25/0.37 Kw
Speed
1440 r/min
1440 r/min
Overall dimensions
320×330×850 mm
360×345×1100 mm
Packing dimensions
540×470×1030 mm
500×490×1270 mm
Weight
62 Kg
85 Kg



Standard Carbide Boring Tools
Rough Cut: 3PCS

Optional Boring Tools
1.Counter bore - cut off sleeves, counter bore blocks
2.30 Degree Offset
3.30 Degree Offset & Counter bore
4.Cutter Sharpener


Packing List

NO
Accessories
Specification
Quantity
1
Cutter setting micrometer
65-140 for T8014S
80-170 for T8016S
1 pcs
2
Boring Cutters

4 pcs
3
Tool hoiders
2pcs.each
3 Ser
4
Centering fingers
3pcs.each
6 Ser for T8014A
7 Ser for T8016A
5
Spring coil

1 pcs
6
Cutter sharpening attachment
By option
1 set
7
Hex. Socket wrenches
S=4,5,6
3 pcs
8
Single-end wrenches
S=11
2 pcs
9
Anchoring device

1 set
