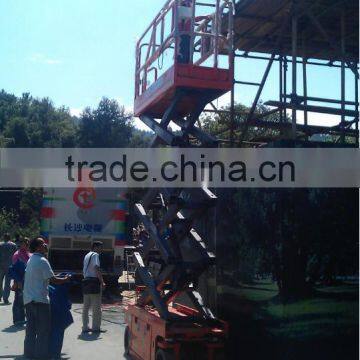

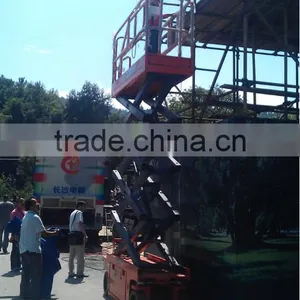

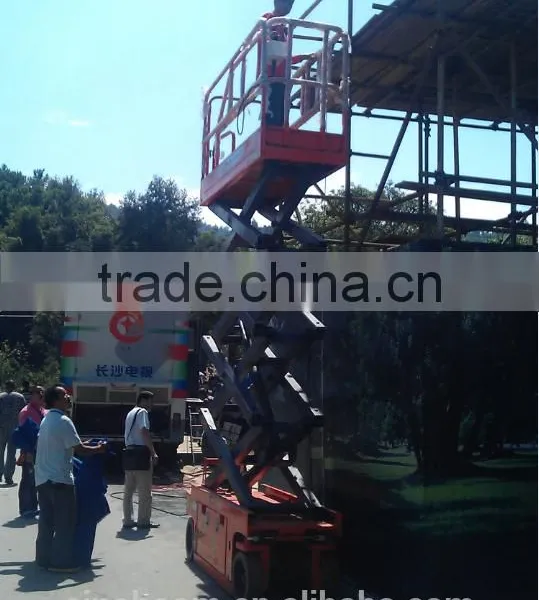

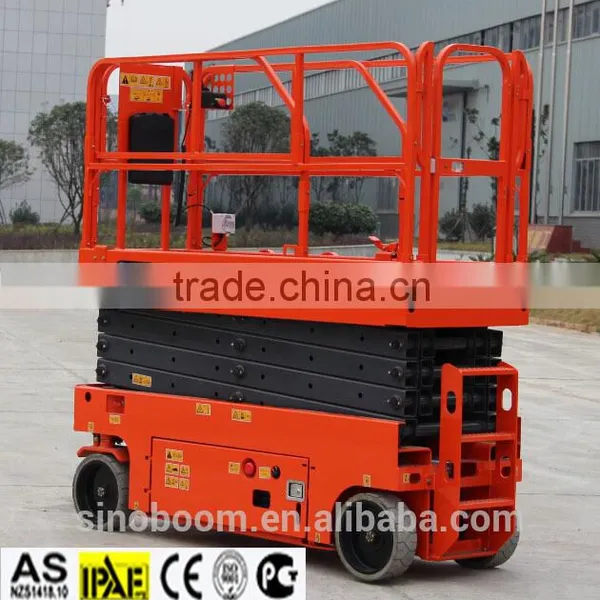

GTJZ0812 Self-propelled Hydraulic Scissor Lifts Flexible to Operate

GTJZ0812 Self-propelled hydraulic scissor lifts are mostly applied to flat indoor or outdoor. The body is pleasing to eye and flexible to operate. The main engine can travel and turn automatically. It features imported hydraulic components, explosion-proof pipe unit and emergency descending switch; hydraulically driven ascending, descending and travelling function; low in noises and free of air pollution; durable, chip-free, skid-proof and traceless tires without scratching the ground; optimized product control mode and procedure with the premise of safety, bringing much more humanized operation.

Technical parameters

Models	GTJZ0812
Dimensions
Platform height max.	26.6 ft (8.1 m)
Working height max.	33 ft (10.1 m)
Platform extended	3 ft (0.9 m)
Length - stowed	7.84 ft  (2.39 m)
Width - stowed	3.77 ft (1.15 m)
Height - guardrail folded	6.43 ft (1.96 m)
Height - guardrail unfolded	7.7 ft (2.35 m)
Height - guardrail fixed	7.7 ft (2.35 m)
Wheelbase	6 ft (1.85 m)
Ground clearance	0.33 ft (0.1 m)
Platform size (L*W*H)	7.4  ft * 3.77 ft * 3.6 ft   (2.25 m*1.15 m*1.1 m)
Productivity
Max. platform occupancy	2 (indoor), 2(outdoor)
Lift capacity	992 lbs (450kg)
Driving speed - stowed	0~3.2 km/h
Driving speed - raised	0~0.8 km/h
Gradeability	25%
Turning radius - inside	0 ft (0 m)
Turning radius - outside	7.7 ft (2.35 m)
Raising / Falling speed	30s~35s /35s~40s
Controls	Proportional
Drive &steer model	2WD, front -wheel
Brake	2 rear-wheel
Tire	380 mm * 125 mm/solid
Power
Power source	24V DC (4*6V, 225Ah batteries)
Hydraulic system tank vol.	18 L
Power	3 KW
Weight
overall weight ( indoor/outdoor )	5490 lbs (2490 kg)
Standards Compliance	CE/ ISO/ ADR/ ARAMCO

The core configuration

Production Line

Product Inventory

Application

Worldwide Show

About Us

Sinoboom is engaged in research, development, manufacturing, sale and service of aerial work equipment. There are four series of aerial work platforms, including articulated boom lift, telescopic boom lift, scissor lift and spider lift, with working height from 4M - 42M in full series and various types, we owns the proprietary core technology and 30 items of intellectual property.

Contact Us

Hunan Sinoboom Heavy Industry Co., Ltd.

No. 128, East Of Jinzhou Avenue, Jinzhou New District, Ningxiang County, Changsha, Hunan, China

Tel: 0086-731-87116222

Skype:

Why Choose Us

1. Provide a various kinds of aerial work platform, which could meet customer's needs.
2. We could help customer choose the right model and also provide customization.
3. All electrical elements are used world famous brand.
4. Provide timely delivery,Sales engineers are ready to solve all problem.

5. Provide spare parts, worksite installation guidance and training operation.

1. Service concept: Exceed clients’ expectation.
2. Presale service: Free comprehensive and detailed technology consultancy in construction sites, referential programs for construction equipment and the most suitable product program.
3. In sale service: We provide free guidance of installation and debugging and free training of operation, care and maintenance.
4. After-sale service: One-year warranty service of whole machine and lifetime maintenance; regularly markets visits and free guidance of whole machine’s maintenance and reparations.
5. Quick responses: we have a complete service network, 400 free hotline services for 24hours and assist you to solve the problem in a short time.
6. Parts supply: we have a complete parts supply network and can guarantee sufficient parts reserves and timely supply.

1. QTY?(set)
2. Purchase period?(in a month, two month, three months or others)
3. Delievery Time?(in a month, two month, three months or others)
4. Trade term? ( FOB/CIF to your nearest seaport)
5. Demand Working Height?
6. Demand Platform Size?
7. Platform load capacity?
8. Demand power source?(electric or hydraulic)
9. Demand drive motion?(2 wheel driving or 4 wheel driving)
10. Cooperation property?(dealer, agent, end-user, including company or personal use )
11. Application field?(construction, shipyard, industiral, airport, municipal garden
or others)

We'll give you an exact quotation based on your demand after confirming the above information.
