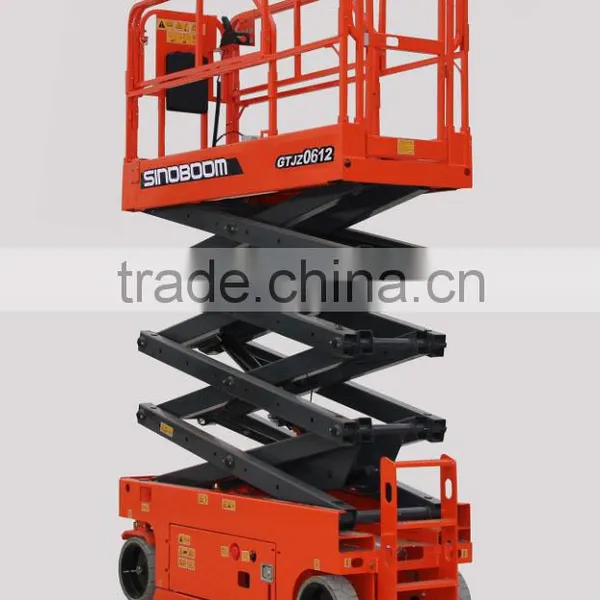

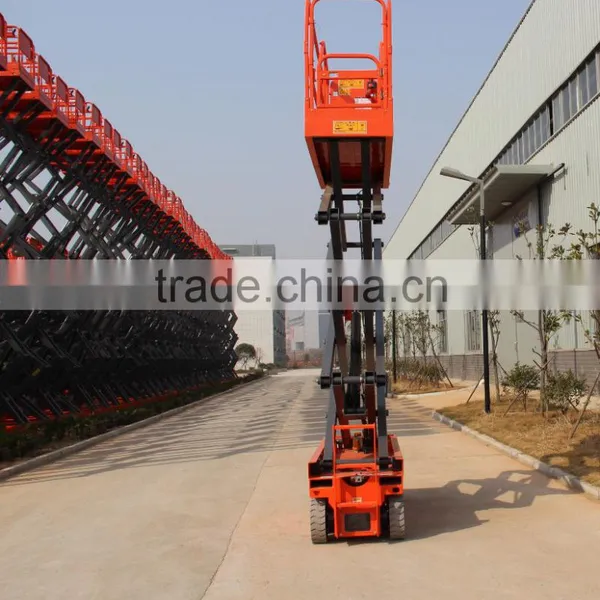

SINOBOOM Self-propelled Scissor Lift Equipment
- China main port
- T/T
You May Like
-
Ce Certificates Top Quality Hydraulic Scissor Lift Table Made by SINOBOOM
-
Hunan Famous Brand Hydraulic Scissor Lift for Hot Sale
-
Ce Certificates China High Quality Portable Hydraulic Scissor Car Lift for Sale
-
6m-8m Small Electric Scissor Lift/lift Table for Maintenance
-
Cleaning Building Equipment Working at Height Platform,self-propelled Hydraulic Platform With New Technology
-
SINOBOOM Dry Cleaning Machine,small Mobile Scissor Platform Lift
Product Details
| Place of Origin | Hunan, China | Brand Name | SINOBOOM | |
| Model Number | GTJZ0612 | Lift Mechanism | Scissor Lift | |
| Lift Drive / Actuation | Electric Motor | Power | 3kw | |
| Rated Loading Capacity | 550 kg | Min. Lifting Height | 0m | |
| Max. Lifting Height | 8.3 m | Table Size | 2.25m * 1.15 m * 1.1 m | |
| Overall Dimensions | 2.39m*1.15 m*1.83 m | Weight | 2070 kg | |
| Certification | CE/ ISO/ ADR/ ARAMCO | Warranty | One Year | |
| After-sales Service Provided | Overseas service center available |
Product Description
Scissor lift applies to indoor and outdoor flat ground conditions. It provides users reliable safeguard according with CE standard. Hydraulic elevated work platform is the electrical self-propelled work platform with low-noise and non-pollution. The spacious platform and great load capacity ensure widely usage.

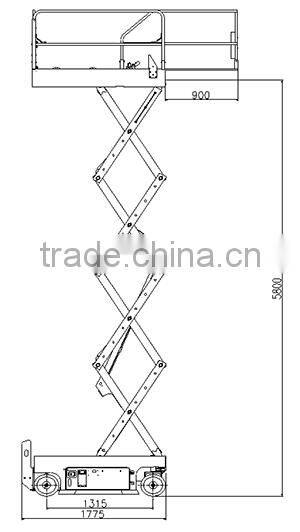

Technical parameters
Models | GTJZ0612 | |
Dimensions | ||
Platform height max. | 20.67 ft (6.3 m) | |
Working height max. | 27 ft (8.3 m) | |
Platform extended | 3 ft (0.9 m) | |
Length - stowed | 7.8 ft (2.39 m) | |
Width - stowed | 3.77 ft (1.15 m) | |
Height - stowed | 7.3 ft (2.22 m) | |
Wheelbase | 6.07 ft (1.85 m) | |
Ground Clearance | 0.33 ft in (0.1 m) | |
Platform size (L*W*H) | 7.4 ft*3.77 ft*3.6 ft (2.25 m*1.15 m*1.1 m) | |
Productivity | ||
Max. platform occupancy | 2(indoor) 2(outdoor) | |
Lift capacity | 1212 lbs (550 kg) | |
Driving speed - stowed | 0~3.2 km/h | |
Driving speed - raised | 0~0.8 km/h | |
Gradeability | 25% | |
Turning radius - inside | 0 ft (0 m) | |
Turning radius - outside | 7.7 ft (2.35 m) | |
Raise / Lower speed | 25s~30s / 30s~35s | |
Controls | Proportional | |
Drive&steer model | 2WD, front-wheel | |
Brake | 2 rear wheel | |
Tire Size/type | 380*125mm/solid | |
Power | ||
Battey | 6V*4/225Ah | |
Hydraulic system tank vol. | 18 L | |
Power unit | 24VDC ,3 KW | |
Weight | ||
Overall weight | 4564 lbs (2070 kg) | |
StandardsCompliance | CE/ISO/ADR/ARAMCO | |
