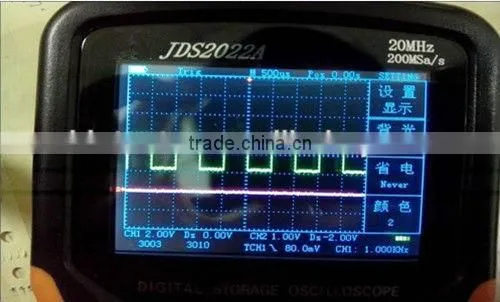

Help CenterDigital Storage Oscilloscope
US$ 1 - 180
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
PT
Model Number:
S2022AEM-4
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ADS1102CNL Digital Storage Oscilloscope ,bandwidth 100 ,7 Inch ScreenUS$ 1 - 400MOQ: 1 Piece -
EPX-7500 Gold & Diamond Long Range DetectorUS$ 1 - 1,000MOQ: 1 Piece
-
PT-453;Three Axis Motion Platform;motion Platform;motion Unit;US$ 1 - 500MOQ: 1 Set
-
EPX7500 Gold & Diamond DetectorUS$ 1 - 1,000MOQ: 1 Piece
-
Pro-Pointer Metal Detector Pinpointer for Gold Relic Coin PropointerUS$ 1 - 50MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
PT
Model Number
S2022AEM-4
Specifications
1.passageway:22.size:202*100*35(mm)
3.Input Protection:Diodeclamping,Maximum 40 v
4.Depth of the storage:4K
Feature:
Max Samples |
200MS/s(Most real-time sampling rate at the same time200MSa/S) |
passageway |
2 |
bandwidth |
20MHz |
vertical resolution |
8 |
|
input range
|
10mV-5V; 100mV-50V(probeX10)(1,2,5) |
DC Vertical Accuracy |
+/-3% |
impedance |
1MΩ 25pF |
coupling |
DC |
display mode |
Y-T |
Input Protection |
Diodeclamping,Maximum 40 v |
Time base scope |
10ns~5s (1,2,5Stepping) 100ms~5s(Scanscanning) |
Depth of the storage |
4K |
model |
Automatic, normal and single |
type |
Rising edge and falling edge |
automatic detection |
(50Hz-40MHz) |
cursor |
The cursor support time and voltage |
equipment |
|
screen |
3.2inch TFT 320*240 |
battery |
3000+mA |
size |
202*100*35(mm) |
