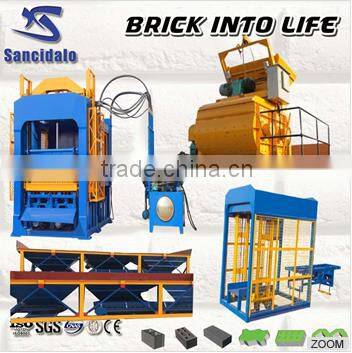

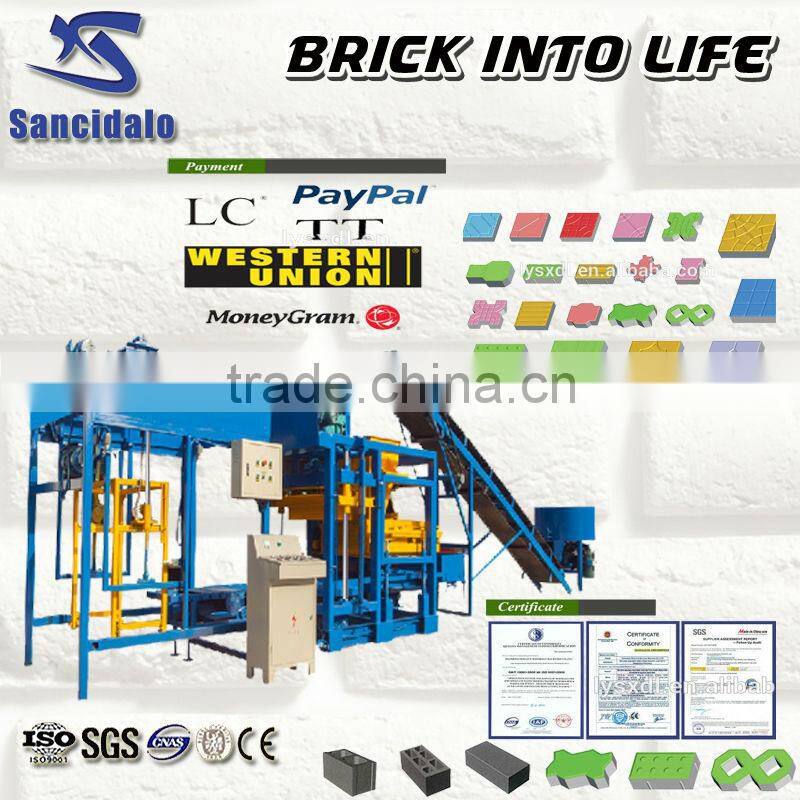

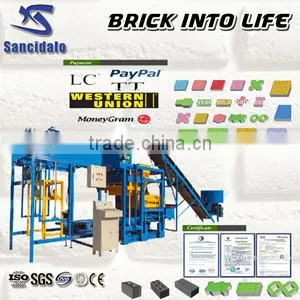

QT4-25 hydraulic concrete block machine, small mobile block machine, cement brick block machine price for construction
1.Technical characteristics of QT4-25 block machine equipment
A. the steel is national standard No.45 steel.the best in our country
B. the welding is the best welding technology,anti-wear, aseismatic,anti Moist
C. the mould of hollow block machine is high temperature carburizing heat treatment through 900 Degrees Celsius
D. guide column:four guide column,use overlong guide design,
the surface is chrome-plated,have good anti-wear and high anti-distortion, Long service life .

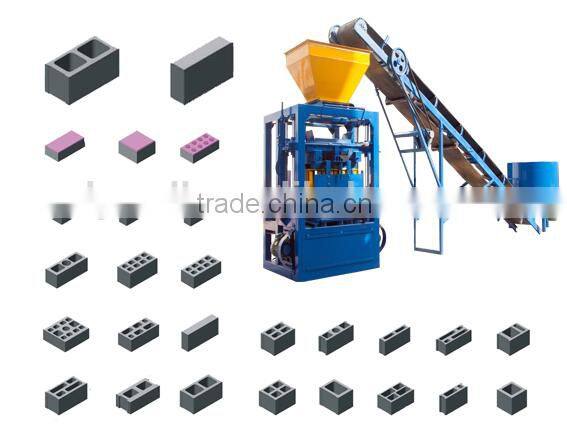

E. Multi-function:exchange moulds of concrete block machine can produce solid bricks,hollow blocks and porous block can make all kinds of blocks
F. Under The vibration platform has two Super motors to drive the vibration box to vibrate
and the up mould also has one motors to vibrate and so the forming way is vibration,so the
blocks are High strength, the compactness of uniform.
Working Video: /watch?v=Knu2aZjMlTc&feature=youtu.be
2.Main technical parameter of concrete block machine QT4-25
1 |
Dimension of host machine |
3700x2100x2300 |
5 |
total machine power |
29kw |
2 |
mould period |
20-24s |
6 |
Vibration force |
35.5KN |
3 |
Pallet size |
850x550x25mm |
7 |
Mixer model |
JD500 |
4 |
workshop area |
160m2 |
8 |
Voltage |
380/415/440 |
3.Theoretical production capacity of cement block machine
No |
Size(LxWxH) |
Pcs/Mould |
Pcs/Hour |
Pcs/Shift |
1 |
400x200x200mm |
4 |
576 |
4608 |
2 |
400x100x200mm |
7 |
1008 |
8064 |
3 |
400x150x200mm |
5 |
720 |
5760 |
4 |
400x250x200mm |
3 |
432 |
3456 |
4.JD500 Mixer main parameters for cement block machine QT4-25
Model Number item |
JD500 |
Feeding capacity |
800 |
Discharging volumn |
500 |
Productivity |
≥20 |
Max.diameter of aggregates |
60/40 |
agitating vane quantity |
28 |
speed |
4 |
Total power |
10.5 |
Lifting Speed of Hopper |
15.6 |
Overall dimension working position |
3620*2215*3985 |
Transporting State | |
Total weight |
1480 |
The height of blowdown |
658 |

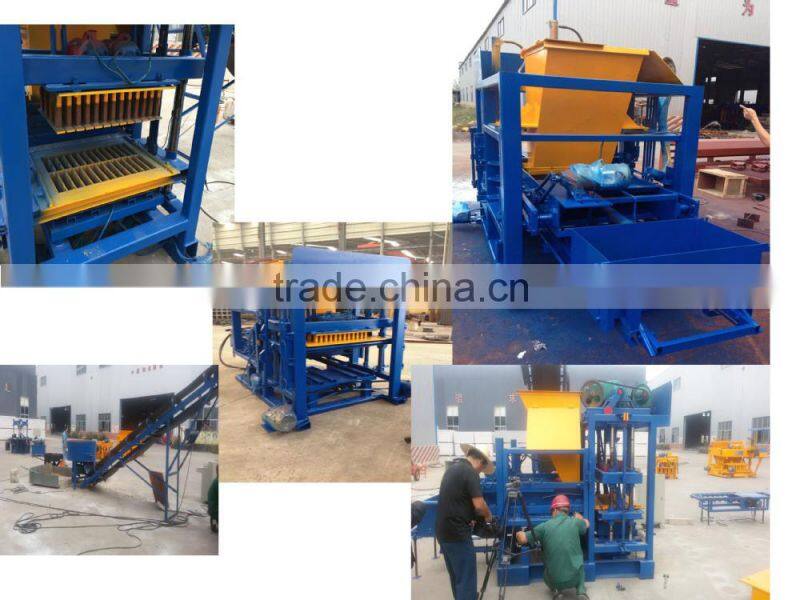

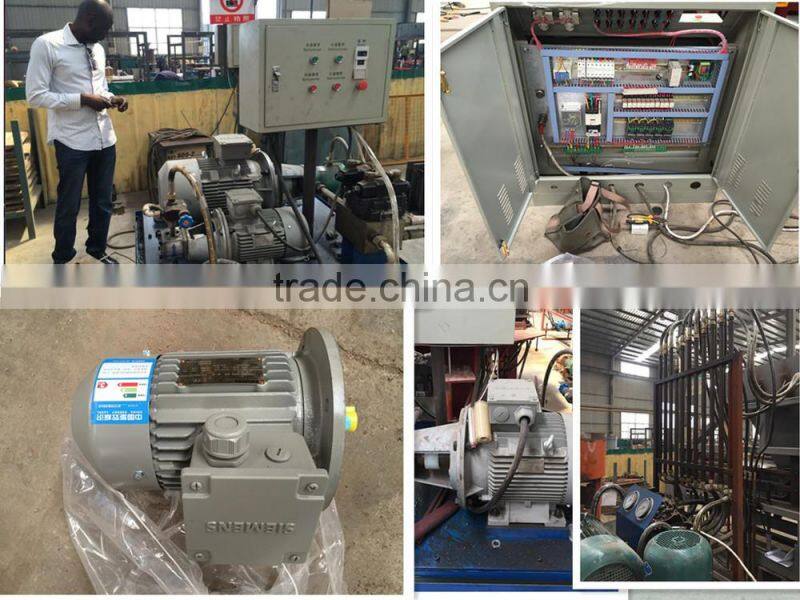

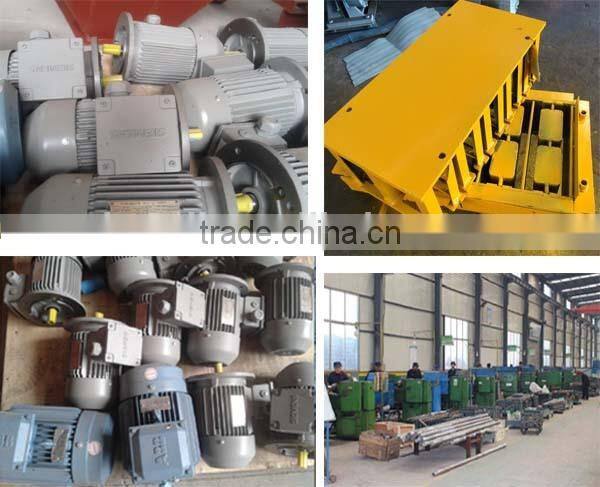

5.QT4-25 detail pictures

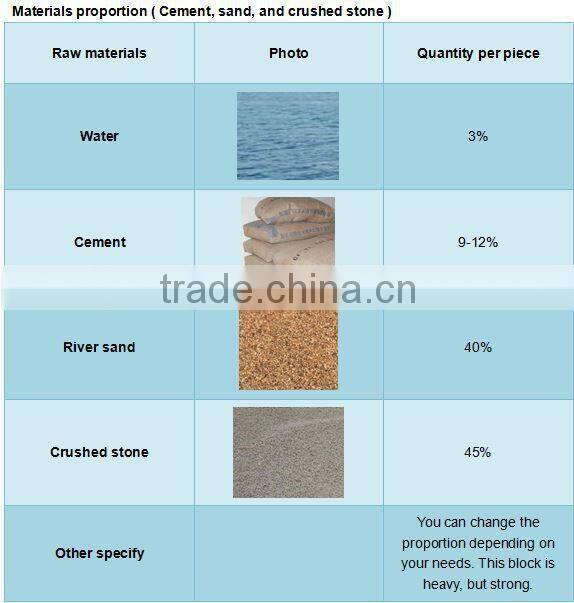

6. Raw Materials:
7.Company Introduction:
With 7 years experience on equipment exportation, Linyi Sancidalo Import & Export Co., Ltd. is able to offer you whole set of solution. But we are very young on Alibaba. As a baby, we focus more on quality, price and service. We treat you not only as business partner, but also as our friend.
Video about company culture: /watch?v=vfs2PN7gi9M
8.What guaranty can we supply?
-FOR PRODUCT
We will supply one year guarantee about our concrete block machine
Within one year ,if the client meet the unsolvable questions ,we could come to client place for help.
-FOR BUSINESS
Based on more than 7 years exporting experience, Sancidalo is always fast & effectively. We help our customers on matters other than orders Clearing Customs, CO/CCPIT to save taxes, shipping arrangement and some other unpredictable knotty problems.
8.Please contact me for any questions at any time.
9. Other related products for your reference:
10. Please contact me for any details at any time:
