Specifications
1. 5megapixel color camera2. 9.7aaHD LED backlit touchscreen
3. VMS3.6 image analysis software included
9.7" Microscope Pad Camera (Model:ScopePad-500)
Features
1. 5megapixel color camera
2. 9.7″HD LED backlit touchscreen
3. VMS3.6 image analysis software included
4. 720P live video preview
5. Android 2.3 OS, 1.2 GHz ARM Cortex® AB Core Processor
6. Supports external mouse or flash drive via USB
7. 3 hour battery life
8. WI-FI & Bluetooth ready
9. Standard C-mount Interface
Introduction
The ScopePad-500 is the second generation smart digital microscopic camera, which inherits the perfect integration concept of quaternityof ScopePad-200 on the functions of digital imaging, storage, processing and transmitting. Equipped with the most stable hardware and software system,binding professional multi-functional measurement software, which is R&D by ourselvesit is easy to achieve all your desires of exploration and discover the mystery of the microscopic kingdom.
Parameter
Digital Parts |
1/2.5 " CMOS Sensor |
5Megapixels (2592*1936), Selectable Resolutions for Capturing Images | |
Image-previewing Rate:30fps at Full Resolution | |
Video Format:720P/15FPS | |
White Balance Setting:Manual / Automatic / Preset | |
Programmable Controls:Gain, Frame Rate, Frame Size, Exposure | |
Pixel Size:2.2μm x 2.2μm | |
ADC:12bit | |
Dynamic Range:71dB | |
SNRMAX:40.5dB | |
Shutter Type:Global Reset Release (GRR) | |
Color Filter Array:RGB Bayer Pattern | |
Connection:International Standard C-type Interface Work with both C-mount and Eyepiece Adapters | |
Display |
9.7" 2ndGeneration HDLED Backlit LCD Screen (1024*768) |
G-sensor, Multi-point Capacitance Touch Screen | |
Operating System |
Android 2.3 |
CPU |
1.2GHz (ARM Cortex™-A8 Core) |
RAM |
1GB (DDR 3) |
Storage Device |
Onboard Flash 8GB, Optional:16GB |
Support External TF Card, Maximum Capacity of 32GB | |
Application Software |
Browser, Calculator, Calendar, Camera, Clock, Email, ES File Explorer, Gallery, Google Search, Music, Setting, Sound Recorder, E-book, MSN/Skype Chatting, Game Playing etc. |
Google Android Market Support Thousands of Applications Download | |
Buttons |
Turn on/off, Volume±, Home |
Battery |
3.7V 6400mAh Rechargeable Li-Polymer Battery |
Endurance in Tablet Mode: 10hours | |
Wi-Fi |
Support Wireless Data Network, Wireless LAN 802.11b/g/n |
Bluetooth |
V2.1 + EDR |
3G Net Work |
3G Module is Optional Accessories, External 3G Card Slot , Support WCDMA / EVDO / TDSCDMA |
Sensor Function |
Onboard G-sensor, Support X/Y/Z 3axis Gravity Sensor |
Onboard Electronic Compass | |
Interface |
1* Mini USB2.0, 1*HDMI, 1* TF Card Slot (Up to 32GB), 1* 3.5mm Standard Stereo Earphone Slot, 1* SIM Card Slot |
Audio |
2* Built-in Class-D Digital Power Amplifier Loudspeaker, Built-in Microphone |
Media File Formats |
Video Supported: MPEG-2 Main-High, H.264 BP/MP/HP, VC1 SP/MP/AP, RV10 8/9/10, MPEG-4/Xvid SP/ASP, DivX 3/4/5/6, H.263 P0/P3, MJPEG Encode:H.264 BP, H.263 P0/P3, MPEG-4 SP, MPEG-2 Main-Main, MJPEG, 3D Video Primary Formats |
Audio Support:MP3, ACC, ADTS, M4A, WMA | |
Photo Support:JPG, GIF, BMP, PNG | |
Language |
Multi Languages:English, Czech, Dansk, German, Spanish, Russian, French, Italian, Dutch, Norwegian, Polski, Portugues, Greek, Portuguese, Svenska, Turkey, Korean, Japanese, Simplified Chinese, Traditional Chinese etc. |
Power Switching Adaptor |
External Power Adaptor, Input:AC 110V~220V, Output:DC5V 3A
Optional Plug Types:USA , EU, UK and Japan etc.
|
Accessories |
Power Adapter, USB Cable, User Manual |
Ambient Condition |
Temperature:-30°C to +70°C |

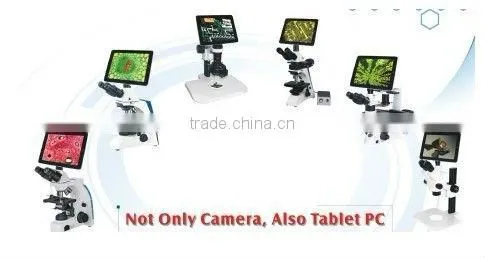

I. Easy to Install
Equipped with international standard C-type interface, it can be conveniently thread on both C-mount and eyepiece adapter.
It is compatible with the monocular, binocular, trinocular and any kind of microscope such as stereo, video, dissecting
microscope or telescopes.
1. 0.5X/1X C-mount adapter is not included, please purchase from your microscope supplier based on your needs.
2. International standard C-type interface, which fits any type of microscope with various C-mount adapters.
3. Eyepieces Adapter Kit (Optional Accessory)
Include 0.5x nose piece with Φ23mm,Φ30mm and Φ30.5mm adapter rings for different diameter eyepiece holders.
4. The ScopePad-500 can be connected with ocular tube via eyepieces adapter kit.
5. Wide View Angle, Adjustable 90° Inclined
II. Application Area -- An Ideal Partner in Education, Scientific Research, Medical and Industry etc.
Widely used in HD teaching, academic demonstration in institutes, PPT report in colleges and universities; scientific research work in medical,geologic,chemical,laboratory; precision electronic assembling and QC etc.
III. Embedded with 5megapixels High Definition and Low Illumination Level Sensor Chip
Its reverting genuine imaging effect is gorgeous, with the capability to beat the image processed by CCD camera.
IV. Wonderful User Experience, Easy Operation

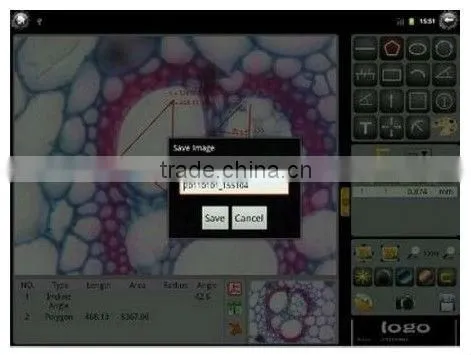

V. Integrated Professional Measurement Software
the Operating Habits is as same as Windows System.
The measurement capability includes size, angle, area, rectangle, cell count, contrast, exposure control, color offset... etc.
VI. Stable Operating System
Google Android 2.3 O.S, Complete Application Functions.
Download any of the tens of thousands of Android Apps from the official Android Market and other websites.
