Specifications
Specifications1.Vibrate cement block making machine
2.Long lifespan
3.Vibration force:35KN
4.ISO/CE/SGS

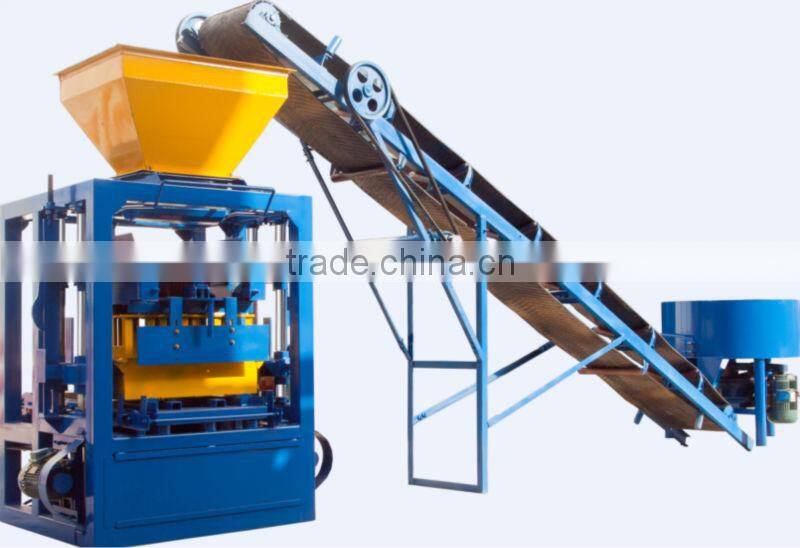

1.Descriptions of QT4-26 fly ash block automatic brick making machinery
- Using the manual force control and jog control together, the operation is simple and efficient;
- Using four poles-oriented manner and ultralong orientation bear to ensure the precisemovement of the pressure head and mould;
- Using the ultra strong steel and special welding techniques,it is strong and of high resistance to vibration;
- It is a multi-useful machine,which could produce road blocks, curb stones, blocks, hollow bricks and other shapes of different specifications of concrete products via changing the block mould.
- Using imported electrical appliances, sealing parts and parts of hydraulic components, the equipment's comprehensive performance is stable and reliable;
- Using mechanical drive, it is a collection of compact structure, easy maintenance, operation flexible and good reliability;
- The products which produced by semi-automatic block machine are all of high strength, good density, good appearance,accurate size and regular shapes;
- The semi-automatic block forming machine can achieve high efficiency if utilizing large dosageof fly ash and slag,could save you more investment and give you a fast turnover
2.Main technical parameters
Dimension of host machine |
2060×1730×1805mm |
Host machine power |
13.9KW |
Mould period |
26s |
Vibration force |
35.5KN |
The size of the pallet |
850×550×30mm |
Mixer model |
JD350 |
Weight of the machine |
3T |
Voltage |
adjustable |
3.Production capacity
Size(LxWxH) |
Pcs/Mould |
Pcs/ Hr |
Pcs/ 8 Hr |
400X100X200 |
7 |
630-840 |
5040-6720 |
400X150X200 |
5 |
450-600 |
3600-4800 |
400X200X200 |
4 |
360-480 |
2880-3840 |
400X250X200 |
3 |
270-360 |
2160-2880 |
all kinds of hollow and solid bricks | |||

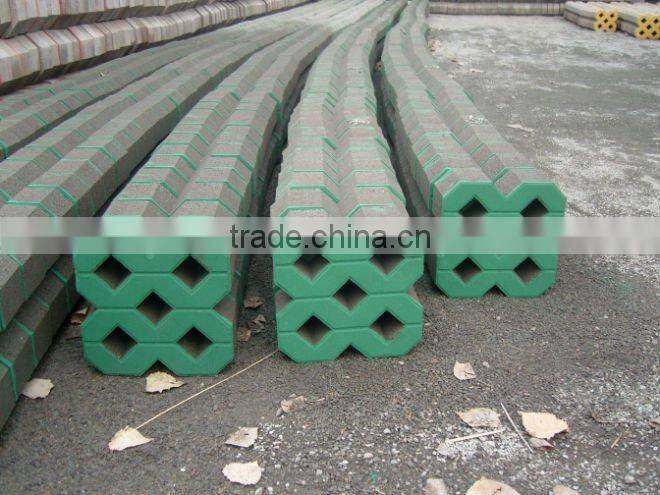

Block samples
4.Packaging and shipping
5.What guaranty can we supply?
-FOR PRODUCT
Company guaranty is 12monthes.
-FOR BUSINESS
Based on more than 7 years exporting experience, Sancidalo is always fast & effectively. We help our customers on matters other than orders
Clearing Customs, CO/CCPIT to save taxes, shipping arrangement and some other unpredictable knotty problems.
6.Company Information:
With 7 years experience on equipment exportation, Linyi Sancidalo Import & Export Co., Ltd. is able to offer you whole set of solution. But we are very young on Alibaba. As a baby, we focus more on quality, price and service. We treat you not only as business partner, but also as our friend.
