Help CenterQT40-3A Small Mobile Cement Block Making Machine
Related Products
-
QT40-3A Gain Much Money/small Block Making Machinery/semi Automatic Concrete Block Machine MachineUS$ 3,299 - 4,999MOQ: 1 Set -
QT40-3A Movable Low Cost Small Process of Making Block Cement Brick Making MachineUS$ 3,299 - 4,999MOQ: 1 Set
-
QT40-3A Most Profitable Business Concrete Block MachineUS$ 3,299 - 4,999MOQ: 1 Set
-
QT40-3A Hydraulic Movable Concrete Block Making Machine PriceUS$ 3,299 - 4,999MOQ: 1 Set
-
QT40-3A Global Machinery Company Parts Manual Block MachineUS$ 3,299 - 4,999MOQ: 1 Set

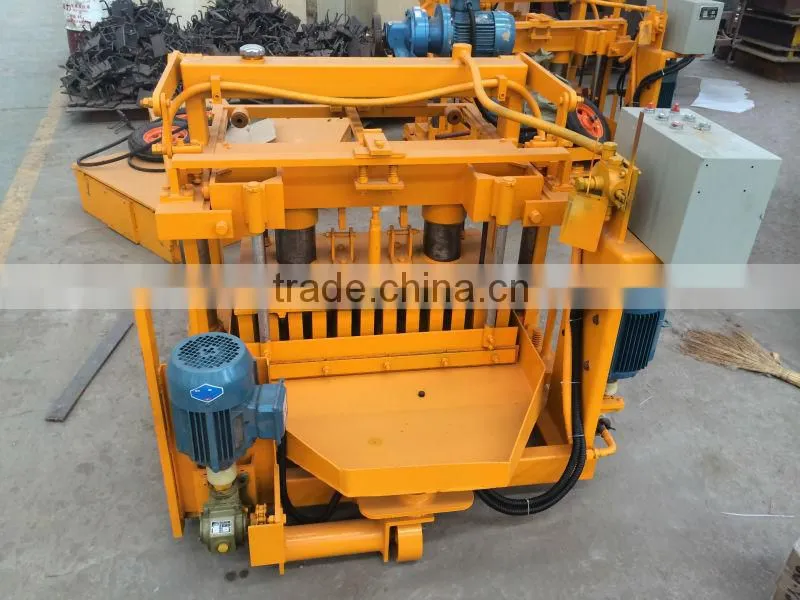

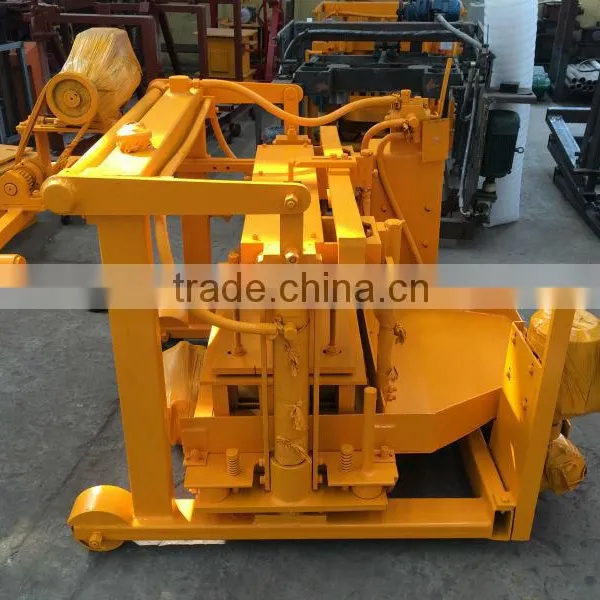

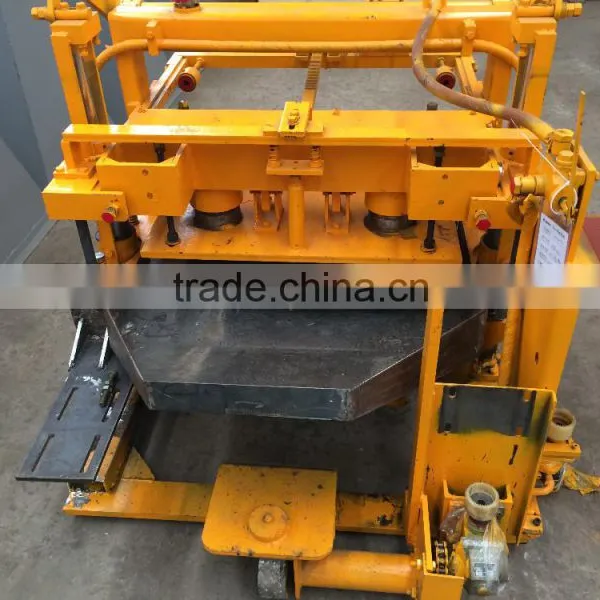

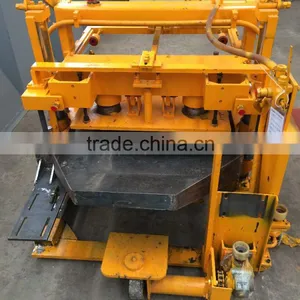

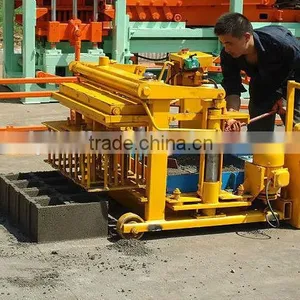

QT40-3A moblie block making machine
Main features:
1) QT40-3A is small in dimension, but with low energy consumption and can be operated easily;
2) QT40-3A is highly efficient. Output is quite big.

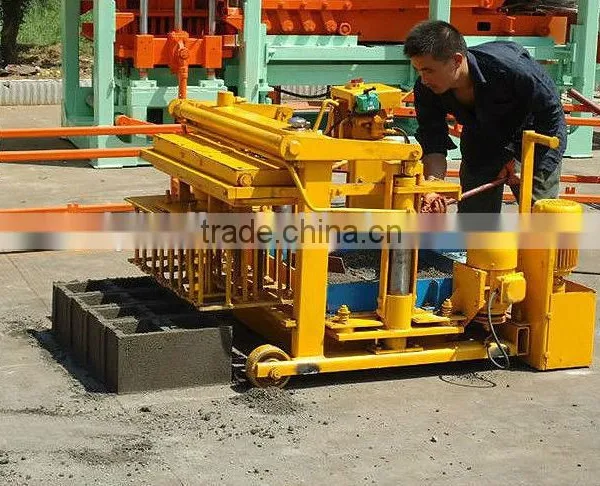

3) QT40-3A can walk freely on concrete surface, both automatically and manually, also move forward or backward;
4 No need to install. It can work after connecting with power;
5 QT40-3A needs no pallet, which saves investment.;
6) Saving labour: Two persons are needed in all. 1 for machine operation, and the other material preparation.
Technical parameters:
Host machine power |
5.2KW |
||
Moulding cycle |
25S |
||
Dimension of host machine |
1800×1400×1100mm |
||
Pallet size |
No need pallets |
||
Weight of the host machine |
0.8T |
||
Vibration force |
35.5KN |
||
Mixer model |
JD350 |
||
Voltage |
as per local |
||
General water Consumption |
2T/every day |
||
Workers |
2 |
||
Workshop area |
50m2 |
||
Capacity |
Hollow 400X200X200mm |
4 pcs/mould |
4500 pcs/8hours |
Standard 240X115X53mm |
16 pcs/mould |
15000 pcs/8hours |
|
Hollow 400X150X200mm |
5 pcs/mould |
6000pcs/8hours |
|
Detailed Images:
Easy Operation:
Wide range of raw materials could be used such as fly ash, coal residue, coal wastes, chemical
residue, sand, stone, concent, cement, construction wastes and so on. therefore, it is a new tpye
of machine which has the characteristics of energy conservation and environmental protection.
|
Pre-sale service: Accept inquiry of customers,choose suitable machine,design the workshop. In-sale service: Provide product of best quality,delivery on time.Send engineers overseas to install machine and train local workers. After-sale service: Whole service life technical support,24 hours service of technology inquiry.Send engineers overseas to repair if necessary. Unique service: Save file for each customer. Free system up-grade, renewing technology and product information |
|
