Specifications
Specifications1.Need no pallet;
2.Absorb advanced technology;
3.Easy to operate and maintain;
4.Low investment.

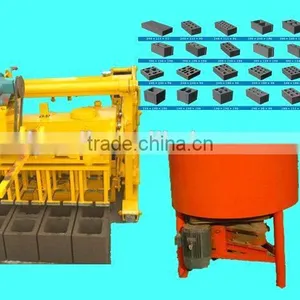

Smallest Hydraulic Brick Machine QT40-3A
Main features:

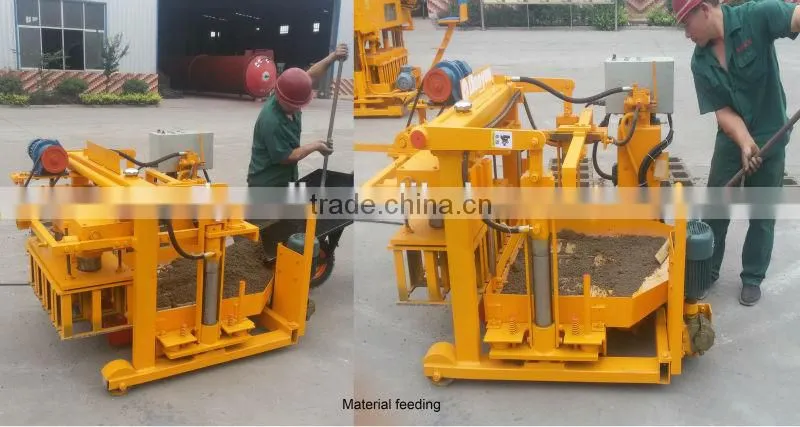

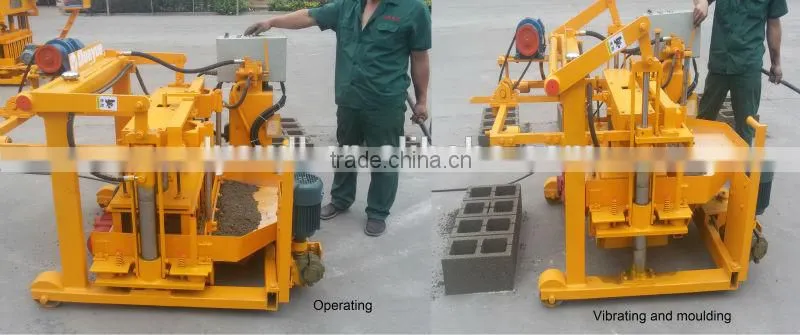

a) Mould vibration makes super vibration influence with small power.With the Hydraulic pressure helps raw material to be feeded and compacted adequately.
b) QT40-3A is small in dimension, but with low energy consumption and can be operated easily;
c) QT40-3A is highly efficient. Output is quite big. Its capacity can be compared with that of larger hydraulic machine.

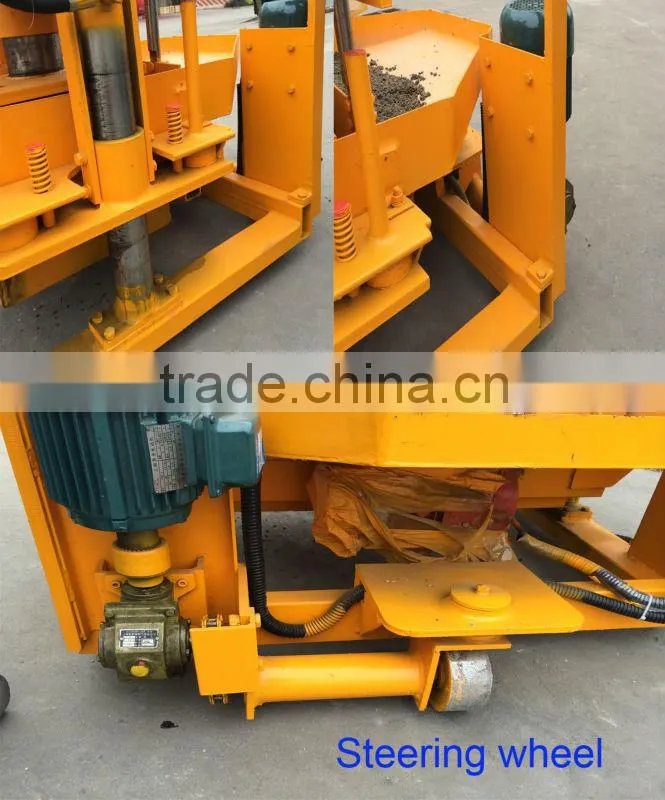

d) QT40-3A can walk freely on concrete surface, both automatically and manually, also move forward or backward;
e) There is no need to install. It can work after connecting with power;
f) QT40-3A needs no pallet, which saves investment.
g) Saving labour: Two persons are needed in all. 1 for machine operation, and the other material mixing.
Technical parameters:
Host machine power | 5.2KW | ||
Moulding cycle | 25S | ||
Dimension of host machine | 1800×1400×1100mm | ||
Pallet size | No need pallets | ||
Weight of the host machine | 0.8T | ||
Vibration force | 35.5KN | ||
Mixer model | JD350 | ||
Voltage | as per local | ||
General water Consumption | 2T/every day | ||
Workers | 2 | ||
Workshop area | 50m2 | ||

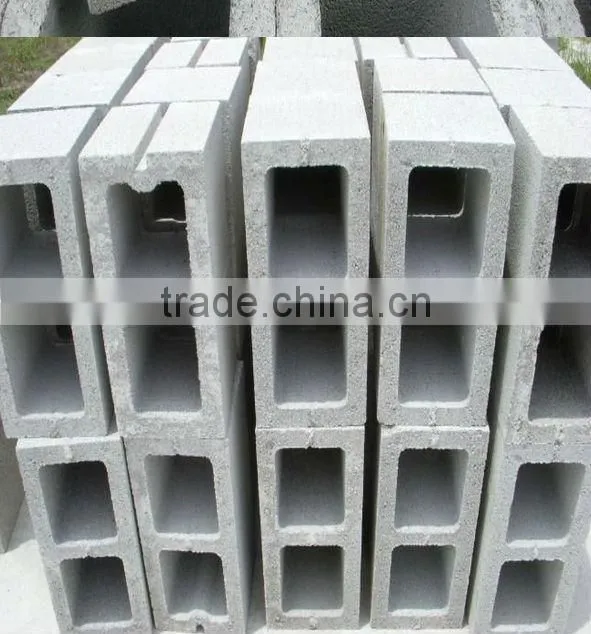

Capacity | Hollow 400X200X200mm | 4 pcs/mould | 4500 pcs/8hours |
Standard 240X115X53mm | 16 pcs/mould | 15000 pcs/8hours | |
Hollow 400X150X200mm | 5 pcs/mould | 6000pcs/8hours | |
Seven characteristics compared with clay brick:
1. Clay bricks cause damage to field. While material of concrete includes three industrial wastes so as to change wastes into valuables.
2. Raw material doesn’t include chimney in order to protect the environment and avoid pollution.
3. Technical criteria is better than those of red brick and green brick.
4. Production process is simple. Bricks can be made everywhere .
5. Blocks can be produced all around the year. There is no time or season limit.
6 .There is no need to bake blocks or build kiln, so it saves energy sources and fields.
7. Low investment can bring faster achievement. Customers can profit in half a year after investment.

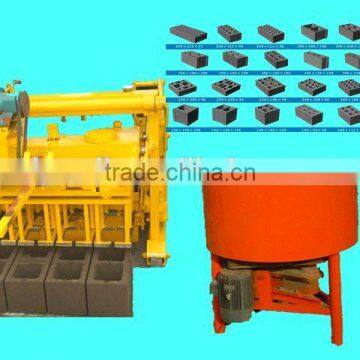

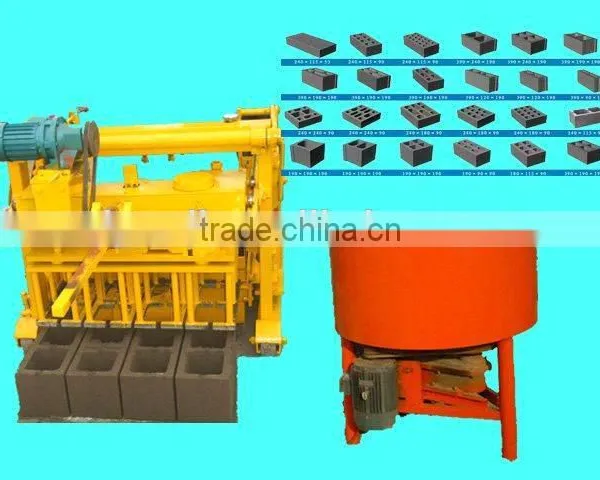

JD350 Mixer for QT40--3A simple manual block making machine price on sale
Maim Technical Specifications | |
Discharging capacity | 0.35 m3 |
Feeding capacity | 0.56 m3 |
Productivity | ≥4m3/h |
Max. aggregates diameter | 80mm |
Mixer power | 7.5 KW |
Diameter | 1200mm |
Wegiht | 0.52T |
