Specifications
1.Need no pallet2.Absorb advanced technology;
3.Easy to operate and maintain
4.cement egg laying brick machine price
Company information
Our main products are related to construction, and cover various block machines, (automatic, manual, motorized, and hydraulic), batching machine, pressure vessel, AAC production line.
With 7 years experience on equipment exportation, Linyi Sancidalo Import & Export Co., Ltd. is able to offer you whole set of solution. But we are very young on Alibaba. As a baby, we focus more on quality, price and service. We treat you not only as business partner, but also as our friend.

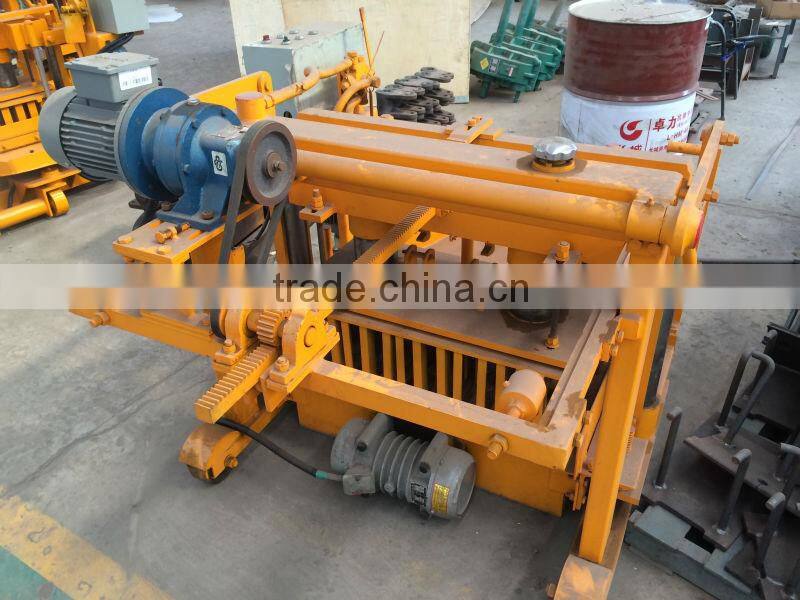

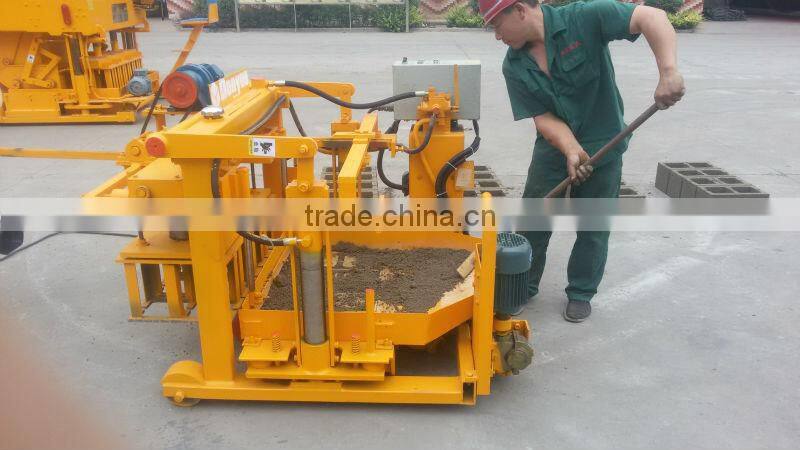

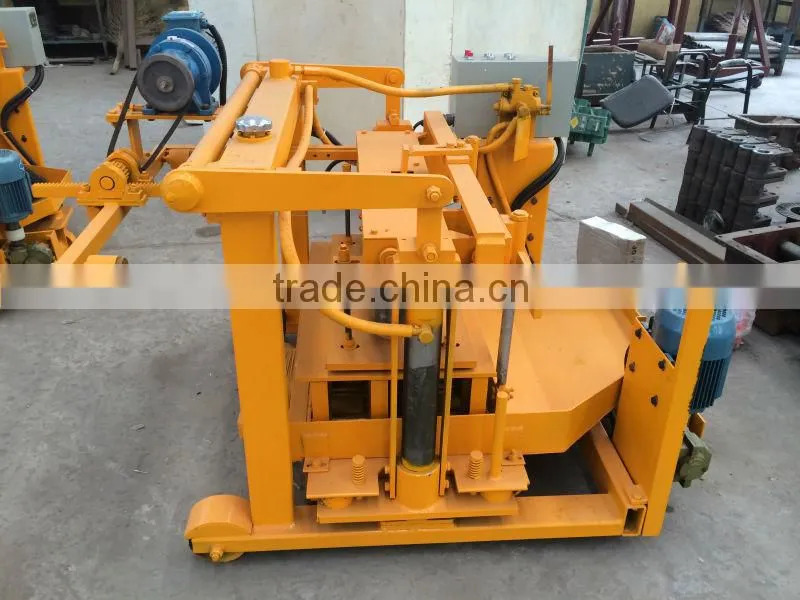

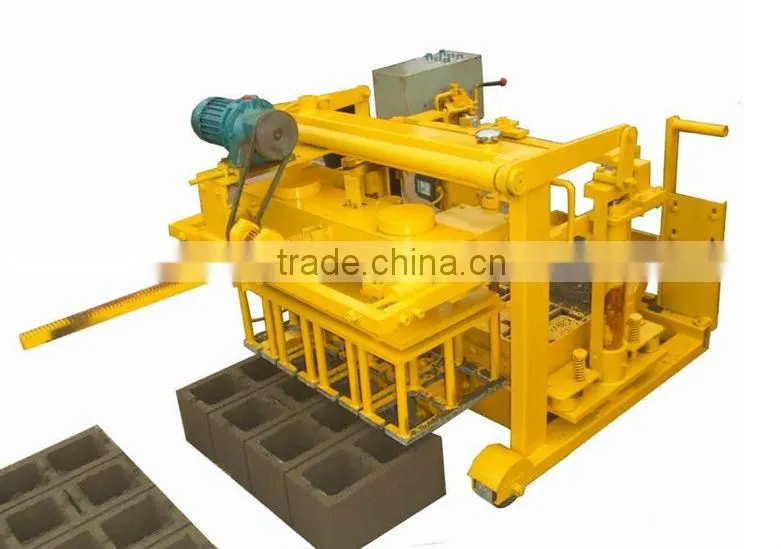

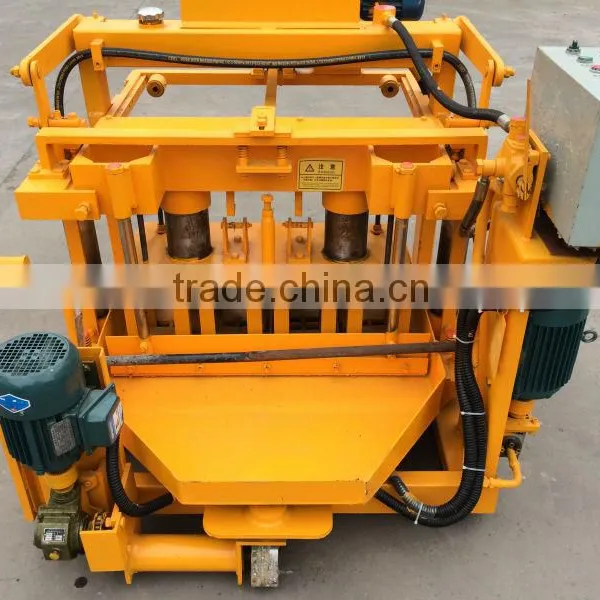

Descriptions of QT40-3A moving hollow block making machine
Main features of QT40-3A cement egg laying brick machine price
a) Mould vibration makes super vibration influence with small power .With the Hydraulic pressure helps raw material to be feeded and compacted adequately..
b) QT40-3A is small in dimension, but with low energy consumption and can be operated easily;
c) QT40-3A is highly efficient. Output is quite big. Its capacity can be compared with that of larger hydraulic machine
d) QT40-3A can walk freely on concrete surface, both automatically and manually, also move forward or backward;
e) There is no need to install. It can work after connecting with power;
f) QT40-3A needs no pallet, which saves investment.;
g) Saving labour: Two persons are needed in all. 1 for machine operation, and the other material mixing.
Technical parameters of QT40-3A cement egg laying brick machine price
Host machine power |
5.2KW |
||
Moulding cycle |
25S |
||
Dimension of host machine |
1800×1400×1100mm |
||
Pallet size |
No need pallets |
||
Weight of the host machine |
0.8T |
||
Vibration force |
35.5KN |
||
Mixer model |
JD350 |
||
Voltage |
as per local |
||
General water Consumption |
2T/every day |
||
Workers |
2 |
||
Workshop area |
50m2 |
||
Capacity |
Hollow 400X200X200mm |
4 pcs/mould |
4500 pcs/8hours |
Standard 240X115X53mm |
16 pcs/mould |
15000 pcs/8hours |
|
Hollow 400X150X200mm |
5 pcs/mould |
6000pcs/8hours |
|
Seven characteristics compared with clay brick:
1. Clay bricks cause damage to field. While material of concrete includes three industrial wastes so as to change wastes into valuables.
2. Raw material doesn’t include chimney in order to protect the environment and avoid pollution.
3. Technical criteria is better than those of red brick and green brick.
4. Production process is simple. Bricks can be made everywhere .
5. Blocks can be produced all around the year. There is no time or season limit.
6. There is no need to bake blocks or build kiln, so it saves energy sources and fields.
7. Low investment can bring faster achievement. Customers can profit in half a year after investment.

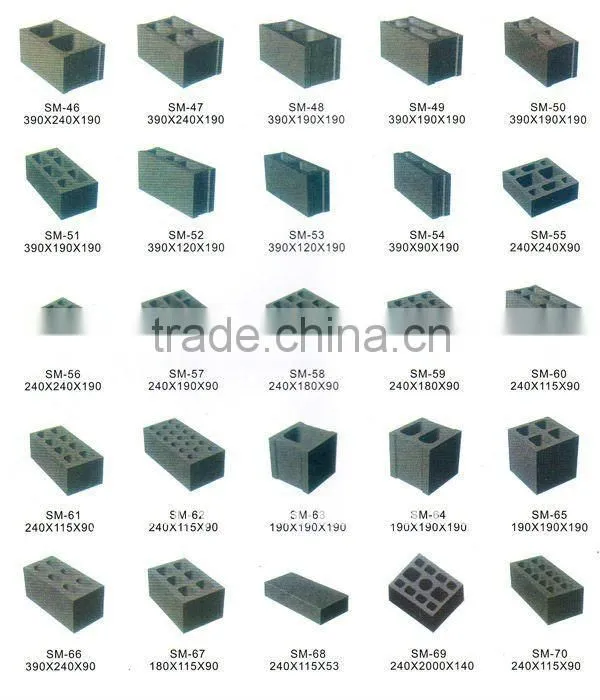

Block samples

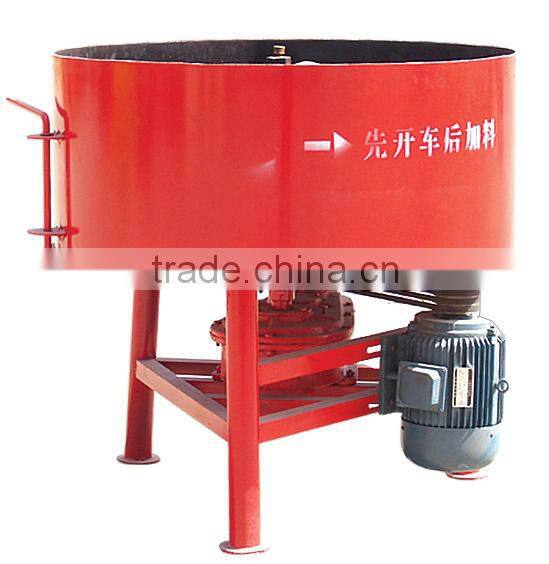

JD350 Mixer for QT40--3A simple manual block making machine price on sale
Maim Technical Specifications | |
Discharging capacity |
0.35 m3 |
Feeding capacity |
0.56 m3 |
Productivity |
≥4m3/h |
Max. aggregates diameter |
80mm |
Mixer power |
7.5 KW |
Diameter |
1200mm |
Wegiht |
0.52T |
What guaranty can we supply?
-FOR PRODUCT
Company guaranty is 12monthes.
-FOR BUSINESS
Based on more than 7 years exporting experience, Sancidalo is always fast & effectively. We help our customers on matters other than orders
Clearing Customs, CO/CCPIT to save taxes, shipping arrangement and some other unpredictable knotty problems.
Note
1. All kinds of mould can be made by customer's drawings
2. All price are based on FOB, HUANGPU, China
3. Payment: by T/T 30% down payment, 70% upon machinery completion.
4. Delivery: After finishing all the payment
5. All the parameters above just for reference, for they are updating all the time
6. Warranty: All the machine enjoys one year’s warranty, in this period , any problems or parts of the machine, please feel free to contact us . We will try our best to help you.

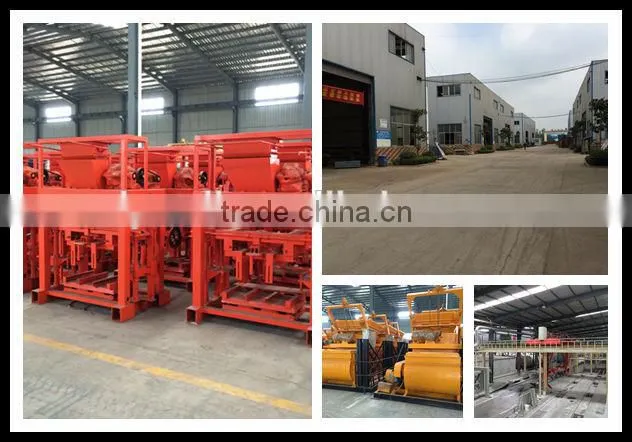

Welcome to our company
