Help CenterQT6-15 Best Selling Products Block Manufacturing Machine Price
Related Products
-
Fly Ash /concrete /paving Brick/block Making Machine QT6-15US$ 38,399 - 58,399MOQ: 1 Set -
QT6-15B Used Automatic Fly Ash Brick Making Machine for SaleUS$ 36,499 - 76,499MOQ: 1 Set
-
QT6-15 Block Making Machine Make Blocks for House BuildingUS$ 38,399 - 58,399MOQ: 1 Set
-
Most Profitable Business !! QT6-15 Fully Automatic Concrete Brick Production LineUS$ 38,399 - 58,399MOQ: 1 Set
-
QT6-15 High Quality Products Block Machine Made in ChinaUS$ 38,399 - 58,399MOQ: 1 Set
Specifications
1.German technology concrete block machine2.German technology with Siemens motor
3.CE,SGS,BV, famous trademark of China
What’s the main features of QT6-15 best selling products block manufacturing machine price (1) PLC programmable control, the entire production automation, efficient and simple operation
(2) using four poles orientation means and super length guide bearing guaranteed .(3)The body is made of super strong steel and special welding technology and materials manufacturing,
strong vibrationresistant.
(4) The rapid mould replacement can produce road brick, road-edge stone, brick, hollow bricks etc different
specifications shapes of concrete products multi-usage.
(5)Comprehensive performance is stable and reliable.
(6) The machine is mechanical transmission, compact structure, convenient maintenance, flexible operation,
good reliability.
(7) The pressurize and strong rammer, especially suitable for the production of high strength concrete-block bearing heavy and intensity can reach 20MPa.
(8) Blocks are high strength, good appearance, construation precise size.
(9) It can achieve high benefit of large volume fly ash and slag utilization.

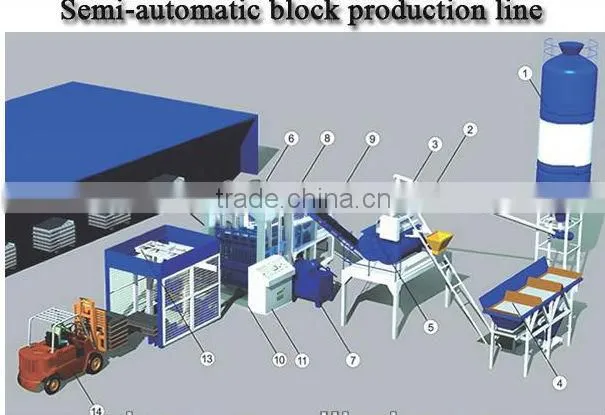

How does it work?

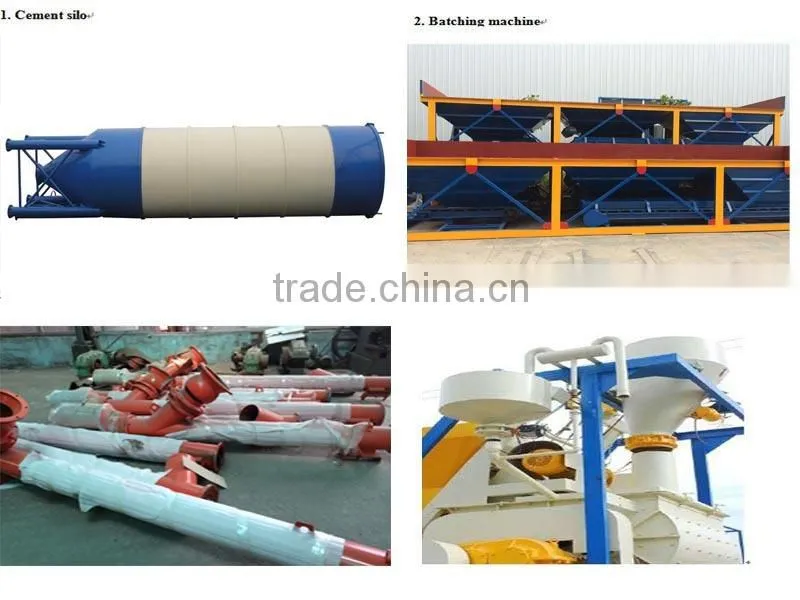

Screw Conveyer (Optional fitment): loading bins of the instrument for transporting Fly Ash from the silos(optional fitting) or cement hopper (optional fitting) to the Batching Plant.
Batching Plant: It consists of three loading bins and one weighing bin. It also contains blet conveyers to convey materials from loading bins to weighing bin. Batching and weighing is done by PLC control. We can load three different types of material into the loading bin.

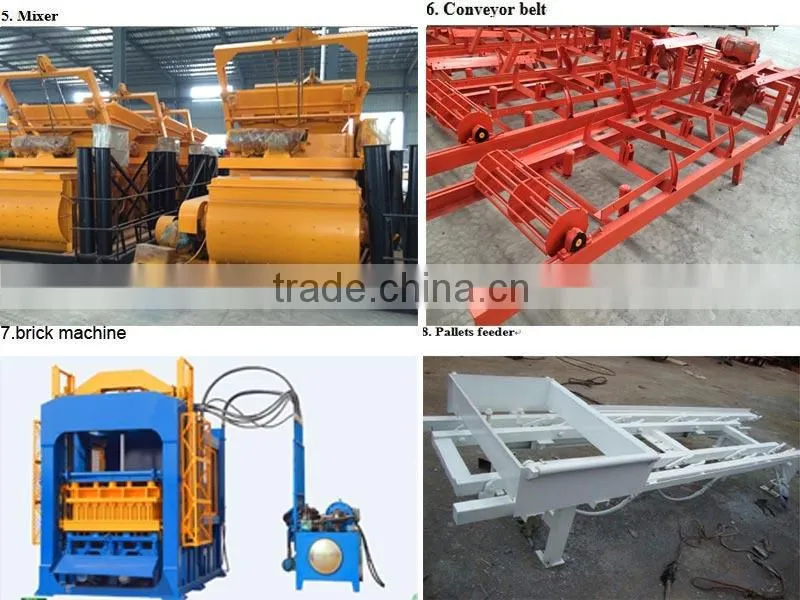

Conveyer Belt: When the Batching plant’s weighing bin trips according to the PLC control, the material comes to this conveyer belt. Then conveyer belt carried materials to the Mixture Machine.

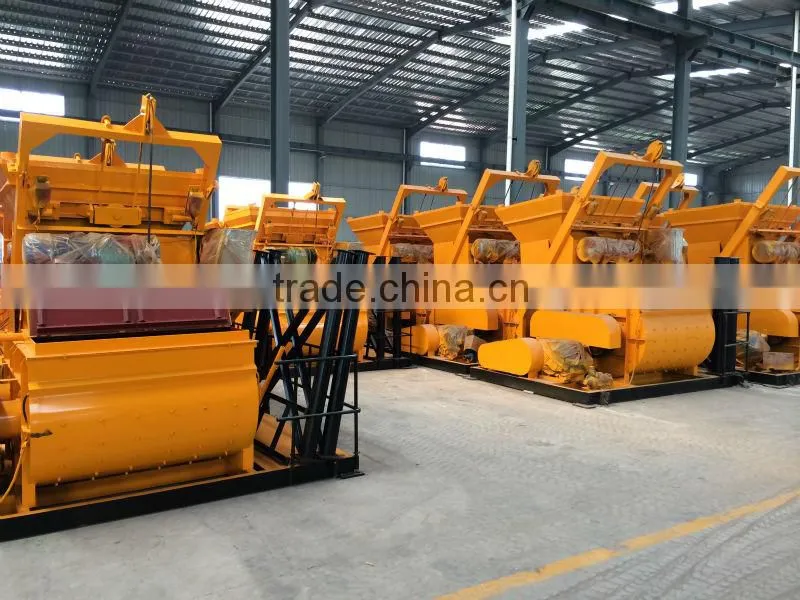

Concrete Mixture Machine: All the ingredients are mixed in this mixture machine. Mixing time and speed is controlled by PLC. The inbuilt water pump adds water to the mixer automatically, as per requirement.

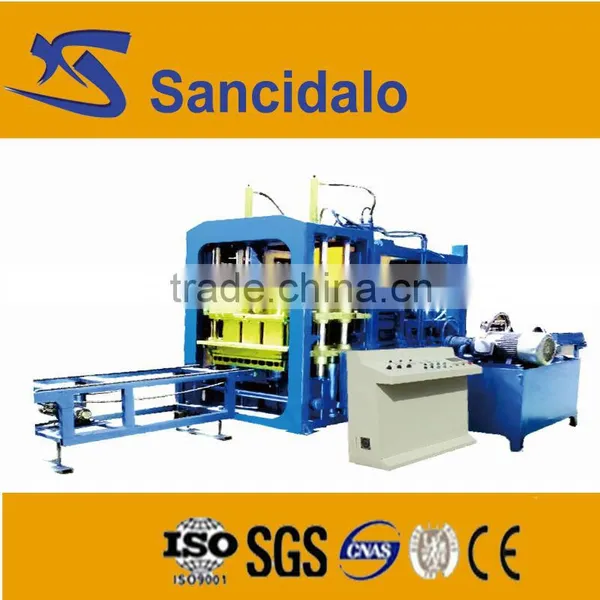

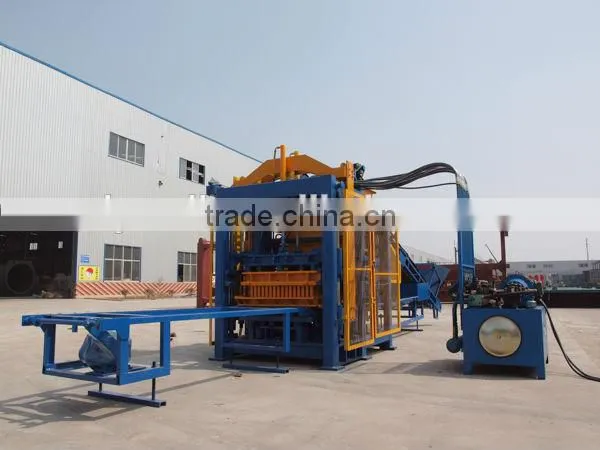

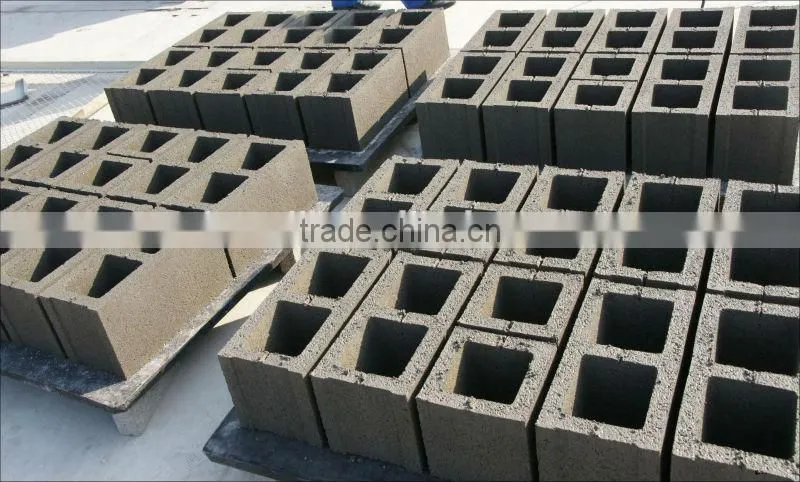

Block mold machine: This is key of the production line. It can press the mixed material. So it can make various hollow block, solid brick, paver brick and kerbstone.
Stacker: Stacker is used to lay the block automatically, which is high-efficient and labor saving.
What’ the main Parameters?
Host machine size |
2850*2200*2850mm |
power |
32.05KW |
Moulding area |
800x600mm |
Vibration force |
45KN |
Mould period |
15-25S |
Mixer model |
JS500 |
Pallet size |
940x830x25mm
|
Water consumption |
8T/day |
weight |
6T |
Project area |
300m2 |
Theoretical output of Hydraulic Block Making Machine QT6-15
Size(LxWxH) |
Pcs/Mould |
Pcs/ Hr |
Pcs/ 8 Hr |
400X100X200 |
8 |
1200-1920 |
9600-15360 |
400X150X200 |
6 |
900-1440 |
7200-11520 |
400X200X200 |
4 |
600-960 |
4800-7680 |
400X250X200 |
3 |
450-720 |
3600-5760 |
Paver:200X100X60 |
16 |
1920 |
15360 |
Paver:200X163X60 |
8 |
1200 |
9600 |
What advantages do we have?
(1) Fully automatic and hydraulic block making machine. Our products can produce all kinds of bricks by changing moulds, such as the solid bricks, hollow blocks, paver blocks and so on.

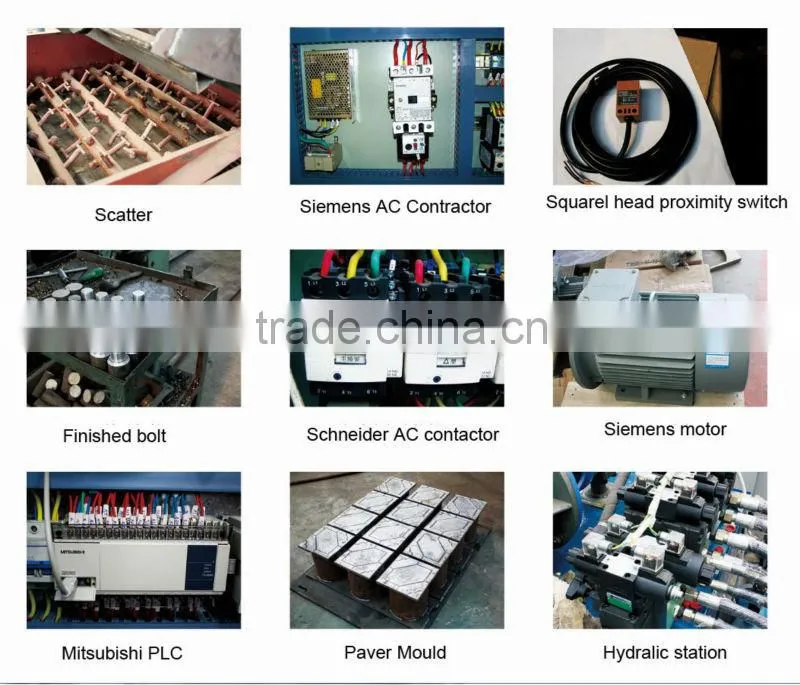

(2) German Siemens motors, Japan Mitsubishi PLC system, Omron travel switch are adopted.
(3) We adopt the heat-treatment and carburization technique to increase the lifespan of the moulds.
(4) Certificates: SGS/CE/ISO9001.
(5) Strong Steel Structure made of Q235B.
(6) There are three same size oil cylinders, which work at the same time to insure the same density and high quality of the blocks.
(7) 360° revolving method ensures the material to be more uniform.
(8) Cooling pump is installed to cool the oil so as to insure work of the hydraulic system.
(9) waste recycling tank is used to reduce the waste of materials.
-FOR PRODUCT
Company guaranty is 12monthes.
-FOR BUSINESS
Based on more than 7 years exporting experience, Sancidalo is always fast & effectively. We help our customers on matters other than orders

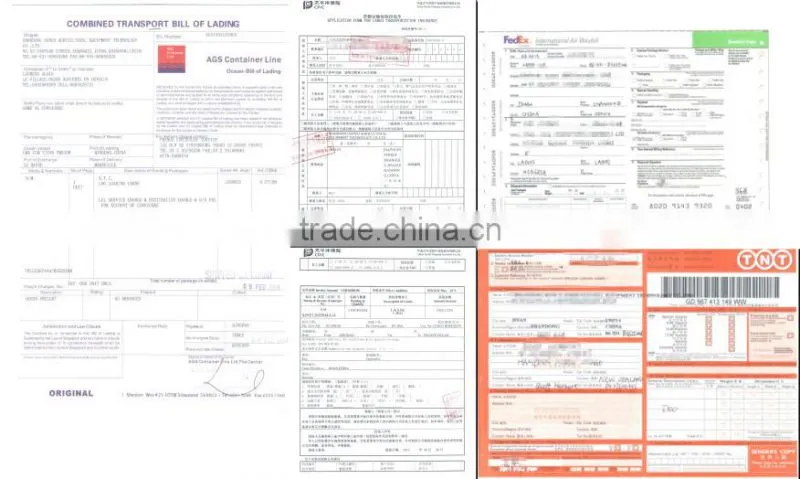

Clearing Customs, CO/CCPIT to save taxes, shipping arrangement and some other unpredictable knotty problems.

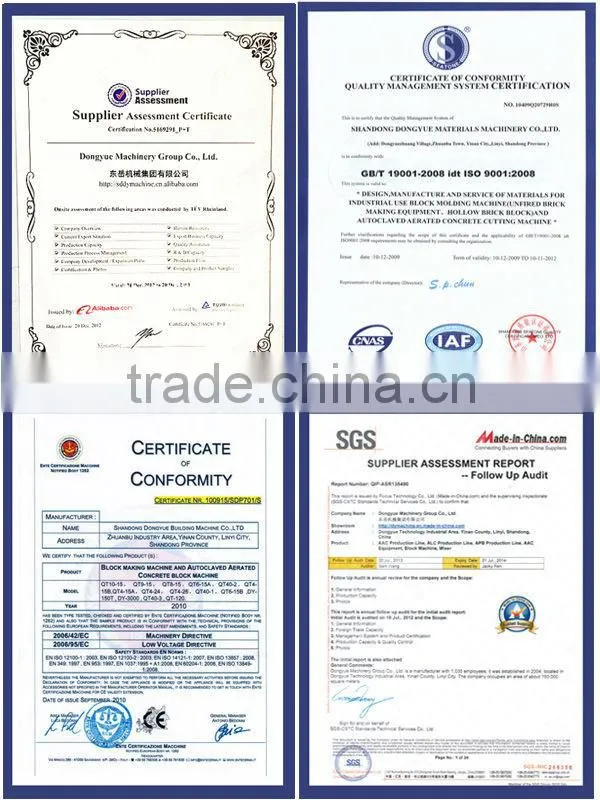

Certificates
With 7 years experience on equipment exportation, Linyi Sancidalo Import & Export Co., Ltd. is able to offer you whole set of solution. But we are very young on Alibaba. As a baby, we focus more on quality, price and service. We treat you not only as business partner, but also as our friend.
If you are interested in any type of our products, please contact us, we will be happy to help you.

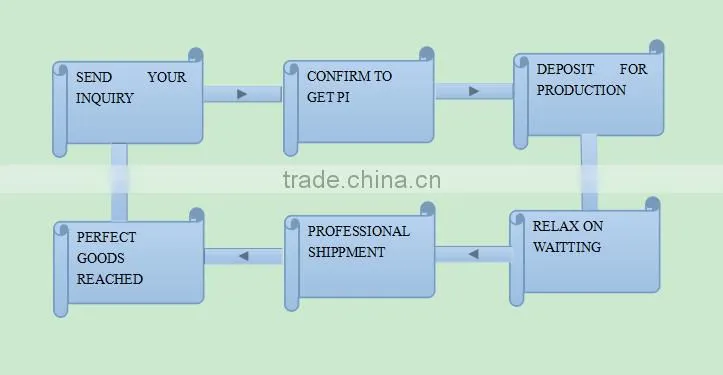

Process of purchase
