Home > Manufacturing & Processing Machinery > Chemical Equipment & Machinery > Chemical Drying Equipment > TM-700UVF UV Curing Machine For Elevator Plate Equipment

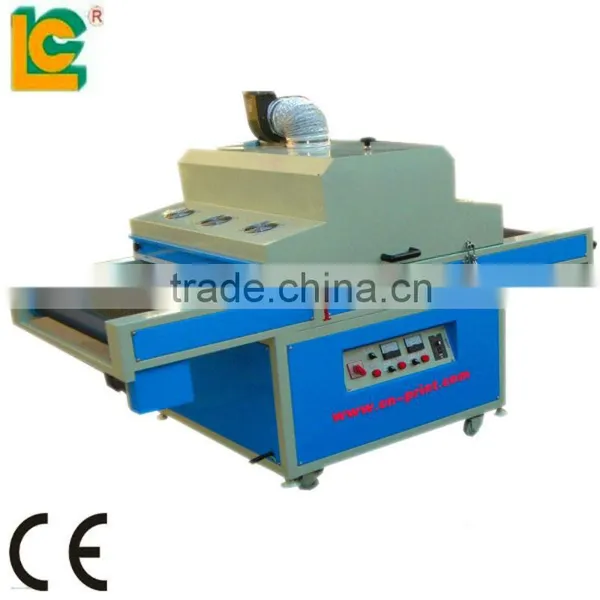

TM-700UVF UV Curing Machine For Elevator Plate Equipment

TM-700UVF UV Curing Machine For Elevator Plate Equipment photo-1
US$ 3,500 - 3,600 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, UV curing machine
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, UV curing machine
Place of Origin Guangdong, China
Brand Name LC
Model Number TM-700UVF
Voltage 380V
Power(W) 3KW
Dimension(L*W*H) 2020*900*1350
Weight 350kg
Certification CE
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.Teflon belt to bear high temperature
2.Sophisticated cooling system to lengthen the service life of lamp.
3.Mirror reflector


Product Description

Product name

TM-700UVF UV Curing Machine For Elevator Plate equipment

Model No

TM-700UVF

Certificate

CE, ISO-9001-2000

Brand Name

LC,CHINA

Description

Suit to  UV drying , Paper UV PRITNING  ,UV POLISHING , PVC,PET , PCB  after printing UV printing, electronic product UV sparying , paper UV pritning, packing products UV drying .
UV Lamp lifetime can reach 1000-1200 hour. Lowest and highest UV lamp operating temperature is 50 degrees Celsius and 75 degrees Celsius respectively. Driven by well-known motor, stepless speed adjustment.The Conveyor speed can be adjusted according to product’s characteristics

Advantage

1. The conveyer speed can adjustment according to the products drying condition;
2. Conveyer belt mabe by tefulong materials;
3. Famous brand UV lamp installed ;
4. Cooling fan installed on the side to remove the heat in curing chamber;
5. Tabletop working and save room area

Parameter

1. Model  NO. TM-700UVF
2. UV Drying  products---700*100*2000mm
3. Conveyor belt size---L2000* W500MM
4. UV Lamp power---2PCS*3KW /380V
5. Total wattage---7.5KW
6. Wind fan wattage---500W/380V
7. motor wattage---1000W/1P/380V
8. Conveyor speed---0~10m/min
9. Speed change ways---Continue
10. UV Machine  Dimension---L*W*H2020*900*1350
11. Weight---380kg

Usage

Electrons,hardwares, autos, toys, gifts, Plastics, household appliances, artware, stationery,

adornment, cosmetic, commodity, sport goods, decorative lightings, woodwork, office supplies,

Photo Materials, Kitchen utensils, Hotel supplies, Computer, Mobile, ect, industrial field.

Free fittings

1Set/Sets

Shipping way

By sea, by air, by express

Delivery time

Within 7 days from the receipt of payment

Loading seaport

Shenzhen or Hong Kong, China

package

WOODEN CASE

Price term

FOB Shenzhen, CFR, CIF, FCA, EXW etc

Payment term

100% T/T in advance(negotiation)

 TM-700UVF UV Curing Machine For Elevator Plate equipmentTM-700UVF UV Curing Machine For Elevator Plate equipment


Packaging & Shipping

TM-700UVF UV Curing Machine For Elevator Plate equipmentTM-700UVF UV Curing Machine For Elevator Plate equipment


Our Services

In order to protect the rights and interests of each user, each printing machine has to undergo a rigorous inspection and testing in factory before sold out as to deliver the most comprehensive after-sales service. Our company's goal: First-class quality, first-class technology, provide customers with first-class products and services.

TM-700UVF UV Curing Machine For Elevator Plate equipmentTM-700UVF UV Curing Machine For Elevator Plate equipment





Company Information



1. One of three famous brand in China.our key products include pad printer, screen printer, hot stamping machine and UV curing machine.



2. We specialize in the field for 20 years, as top manufacturer we have about 150 emloyees,among which about 30 are professinal technicians and 1/4 of them has experience of IAQ field of over 10 years.



3. we have a throughput of 50 sets a month for every model with a complete set of production line and testing equipments.

TM-700UVF UV Curing Machine For Elevator Plate equipmentTM-700UVF UV Curing Machine For Elevator Plate equipmentTM-700UVF UV Curing Machine For Elevator Plate equipmentTM-700UVF UV Curing Machine For Elevator Plate equipmentTM-700UVF UV Curing Machine For Elevator Plate equipment
