Specifications
UV inks Curing Machine1.plane curing machine with good drying system for drying printed UV ink product
2.long work life
Description

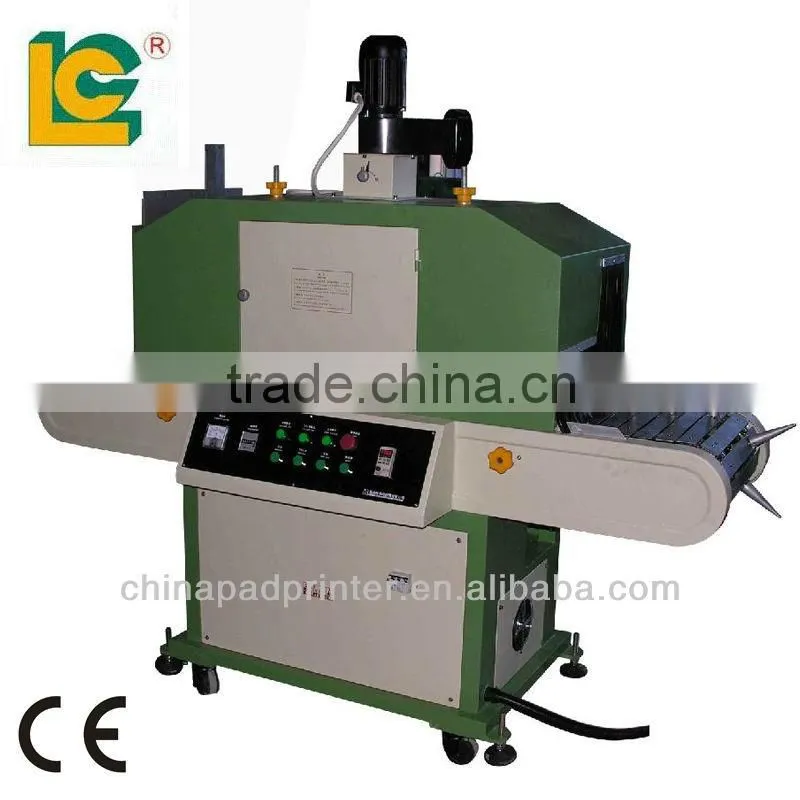

LC-UV4000S2 RoundPlane Surface UV inks Curing Machine is mainly used for the curing of printed UV ink on various surfaces such as bottles and cylindrical articles. By adjusting its lighting angle, it can also be used in the UV Ink printing cure of flat substrate, Stainless steel conveyer to resist High Temperature. Stepless speed adjustment to match with diffrent bottles. Suitable for bottles made by plastics, Metal, Glass Etc.
Feature
1 .UV drying for round bottle and plane products.
2. Cylinder products increased the effect of light -
3. UV Drying of products according to size, material, adjust the speed conveyor belt
4. Ventilation system installed at the top, so as to extend lamp life
5. A closed-end structure
6. Aesthetic appearance, apply a wide range, solid-effective
7. Reliable, safe and easy to operate
parameter
1.Max UV curing round container high :400mm
2.Max UV curing Products width : 400mm
3. UV Curing Products diameter : 150-350mm
4.Conveyor speed:0~10m/min ;
5.. (United Kingdom)UV lamp power:4KW
7. UV Drying products speed:1500~2500PCS/HR
8.Total power:5KW
Free Fitting :
1 pcs UV lsmp(4KW)
Testing Please provide:
1. 380V power supply.
2. 5-7 bar compress air.
Machine pic
Why choose us?
2. We have 21 years manufacturing experience, with professional engineer group and production plant, the stock is 50sets at least each month
4.We are located in China industrial zone center ---Dong-guan It's only two hour's car ride far from Guangzhou airport. If you are interested in our products, Welcome Agented !
