4-Colour Conveyor & Sealed Cup Tampo Printing Machine LC-SPM4-150/16T

4-Colour Conveyor & Sealed Cup Tampo Printing Machine LC-SPM4-150/16T photo-1
4-Colour Conveyor & Sealed Cup Tampo Printing Machine LC-SPM4-150/16T photo-2

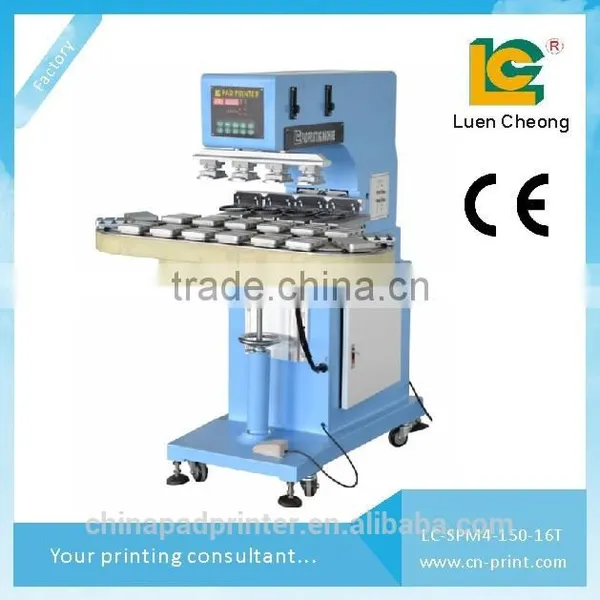

4-Colour Conveyor & Sealed Cup Tampo Printing Machine LC-SPM4-150/16T photo-3

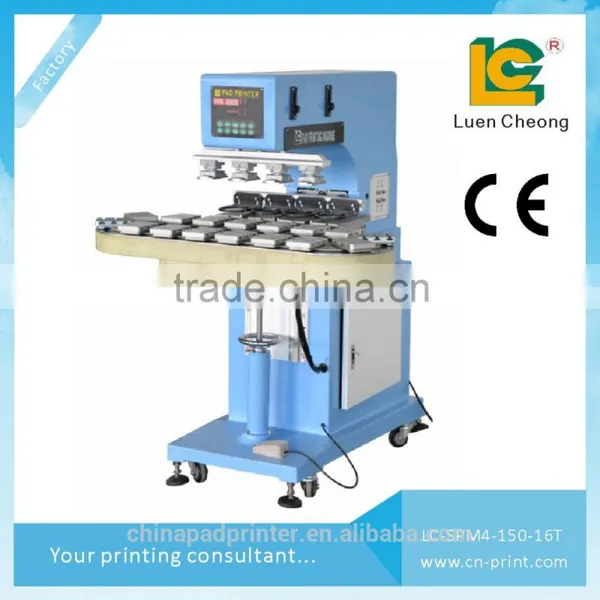

4-Colour Conveyor & Sealed Cup Tampo Printing Machine LC-SPM4-150/16T photo-4
US$ 4,920 - 5,200 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Gravure
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Plate Type Gravure
Place of Origin Guangdong, China
Brand Name LC
Model Number LC-SPM4-150/16T
Usage Other, tampo printer
Automatic Grade Semi-Automatic
Voltage AC110V/220V
Gross Power 35W
Dimensions(L*W*H) 1040*710*1420mm
Weight 205kg
Certification CE
After-sales Service Provided Engineers available to service machinery overseas



Product name

4-Colour Conveyor & sealed cup tampo printing machine

Model No

LC-SPM4-150/16T

Certificate

CE, ISO-9001-2000

Brand Name

LC,China

Description

Cylinder of  pad printing machine is German FESTO brand.Electrical components are imported from Japan.

While vaccum system is from Taiwan. It meets CE standard, with very stable running.

It is with closed ink cup, can save 60% ink and 90% thinner.

 Four color pad printer ( tampo printing machine ) with close ink cup ensures that is environmental, safe,

it is comply with CE Starderand, ease operateing, to consume ink that frugal.Help to reduce any solvents

evaporating from the ink too quickly and also helps to keep the ink at a constant temperature.

Advantage

1. Four color printing with conveyer;
2. Microprocessor control with numerical display leads to easy operation;
3. Automatic 5-digit counter installed;
4. Coin aluminium structure frame, the machine is light and sturdy;
5. The speed and the vertical stroke of the pad can be adjusted independently;
6. With sealed cup to protect operating envirment;
7. The extra function "twice inking, once printing" is designed for thicker ink film;
8. For different requirements, the working speed can be adjusted;
9.4-color, 3-color, 2-color, 1-color printing available,
10. The four ink cup can be independently adjusted for color registration;
11. With air jet for fast drying;

Parameter

LC-SPM4-150/16T
1. Max. Plate size: 100*250mm
2. Max. Worktable area: 90x125mm
3. Sealed cup diameter: 90mm
4. Max Printing area: 80*120mm
5. Max. Printing speed: 1800PCS/h
6. Printable colours: 4
7. Air consumption: 154Litre/min(6bar)
8. Dimensions: 1040x710x1420mm
9. Weight: 205Kg

Usage

It is to fit pad printing plastic products, same as toyes, gift products, pen, PE products,

golf ball package products, bos, , hosehold, stationery, pen, ball, electron products,

mobile phone, bottle. Metals products, furniture fittings.

Free fittings

1. Four pcs steel plate
2. Four pcs rubber pad

3. 1 Work box

4. English operating instruction

Shipping way

By sea, by air, by express

Delivery time

Within 7 days from the receipt of payment

Loading seaport

Shenzhen or Hong Kong, China

package

Plywood case

Price term

FOB Shenzhen, CFR, CIF, FCA, EXW etc

Payment term

100% T/T in advance(negotiation)



About us

1. One of three famous brand in China.our key products include , screen printer, hot stamping machine and UV curing machine.

2. We specialize in the field for 20 years, as top manufacturer we have about 150 emloyees,among which about 30 are professinal technicians and 1/4 of them has experience of IAQ field of over 10 years.

3. we have a throughput of 50 sets a month for every model with a complete set of production line and testing equipments.



Machine detail pictures

4-Colour Conveyor & sealed cup tampo printing machine LC-SPM4-150/16T



Samples pictures

4-Colour Conveyor & sealed cup tampo printing machine LC-SPM4-150/16T

Factory and warehouse pic

4-Colour Conveyor & sealed cup tampo printing machine LC-SPM4-150/16T
