LC-PM2-200T Muti-Color Ink Cup Tampo Printer

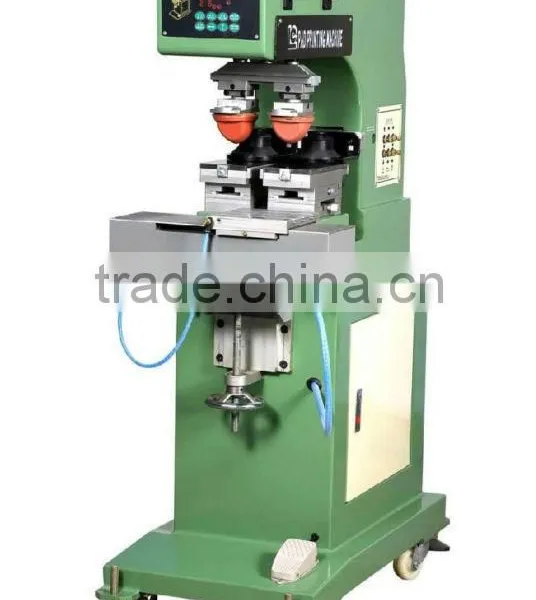

LC-PM2-200T Muti-Color Ink Cup Tampo Printer photo-1

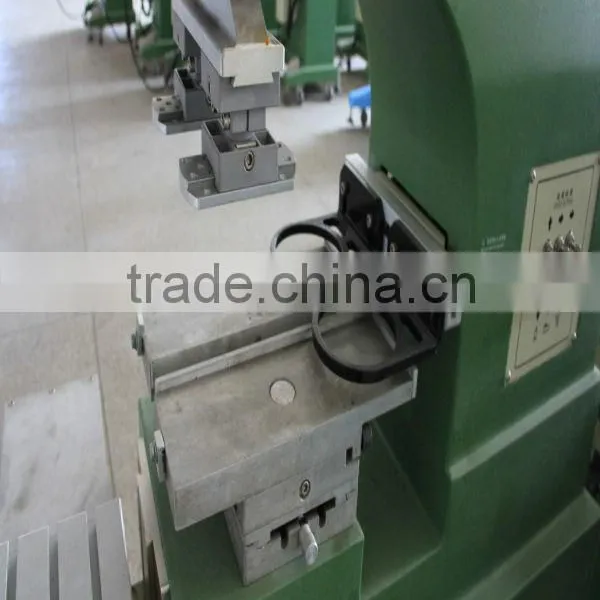

LC-PM2-200T Muti-Color Ink Cup Tampo Printer photo-2

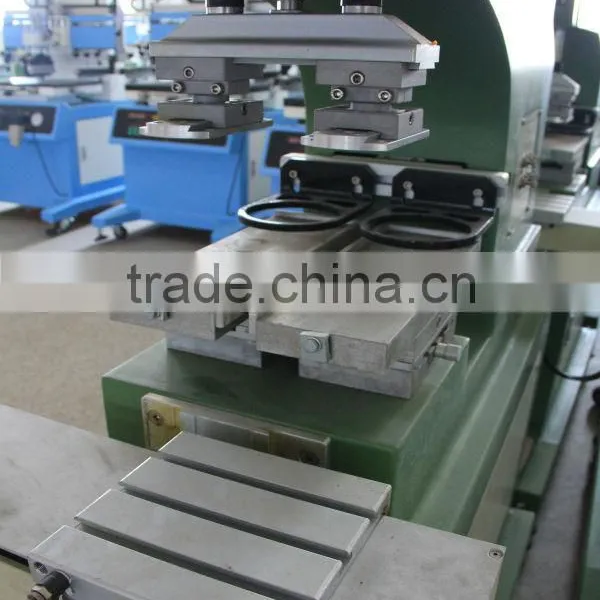

LC-PM2-200T Muti-Color Ink Cup Tampo Printer photo-3

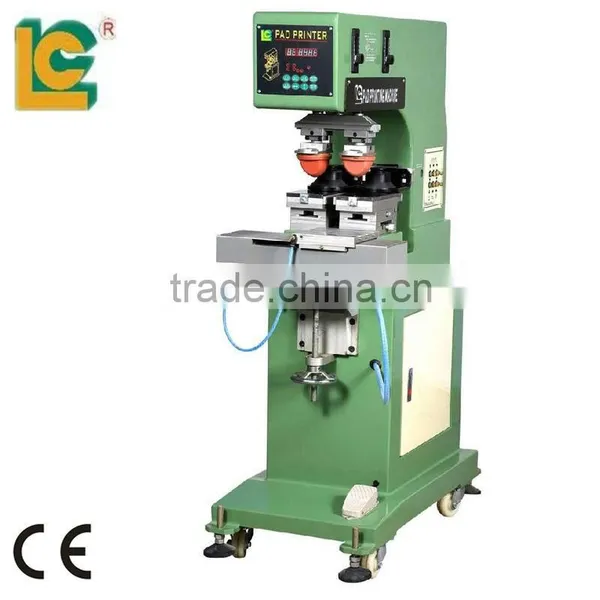

LC-PM2-200T Muti-Color Ink Cup Tampo Printer photo-4
US$ 2,520 - 2,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Gravure
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Plate Type Gravure
Place of Origin Guangdong, China
Brand Name LC
Model Number LC-PM2-200T
Usage Label Printer, Other, Label Printer, Tampo printer
Automatic Grade Semi-Automatic
Voltage AC110V/220V
Gross Power 35W
Dimensions(L*W*H) 910*580*1470MM
Weight 154KG
Certification CE
After-sales Service Provided Engineers available to service machinery overseas







Product Description







Product name

LC-PM2-200T Muti-Color Ink Cup Tampo Printer

Model No

LC-PM2-200T

Certificate

CE, ISO-9001-2000

Brand Name

LC,China

Description

Our PAD Printers to fit pad printing plastic products, like as toyes, gifts, pens, PVC, PE, PP, golf ball, package products, stationery, pen, ball, electron products, mobile phone, bottle. Metals products, furniture fittings.

Advantage

1. Controlled by microprocessor, easy operation, running stably and accurately.
2. 4-digit auto counter built-in.
3. Cast aluminum machine frame, low weight and high intensity, turnable machine head.
4. Separate adjustment of the pad up/down stroke speed.
5. Ink scraper is auto balance keeping in printing.
6. With the function of ink scraping nonstop without printing in order to prevent the ink from drying.

7. Ink cup is turnable and adjustable in vertical and horizontal direction.
8. Super long slide stroke to print large size workpiece.
9. Speed of every single pneumatic organ is adjustable

Parameter

1. Model NO: LC-PM2-200T
2. Operation: Pneumatic
3. Printing Colors: 2
4. Max. Printing area: 80*160mm
5. Plate area: 100*300 mm2
6. Sealed ink cup diameter: 90 mm
7. Max printing speed: 1300PCS/H
8. Wattage: 220V/ 50HZ 110V/60HZ
9. Air pressure: 6 Bar
10. Machine size: 910× 580× 1470mm3
11. Machine weight: 154kg


Usage

Our PAD Printers to fit pad printing plastic products, like as toyes, gifts, pens, PVC, PE, PP, golf ball, package products, stationery, pen, ball, electron products, mobile phone, bottle. Metals products, furniture fittings.

Free fittings

1. One PCS steel plate
2. Two PCS rubber pad
3. A suit tool
4. English operating instruction

Shipping way

By sea, by air, by express

Delivery time

Within 7 days from the receipt of payment

Loading seaport

Shenzhen or Hong Kong, China

package

Plywood case

Price term

FOB Shenzhen, CFR, CIF, FCA, EXW etc

Payment term

100% T/T in advance(negotiation)



About us

1. One of three famous brand in China.our key products include pad printer, screen printer, hot stamping machine and UV curing machine.

2. We specialize in the field for 20 years, as top manufacturer we have about 150 emloyees,among which about 30 are professinal technicians and 1/4 of them has experience of IAQ field of over 10 years.

3. we have a throughput of 50 sets a month for every model with a complete set of production line and testing equipments.

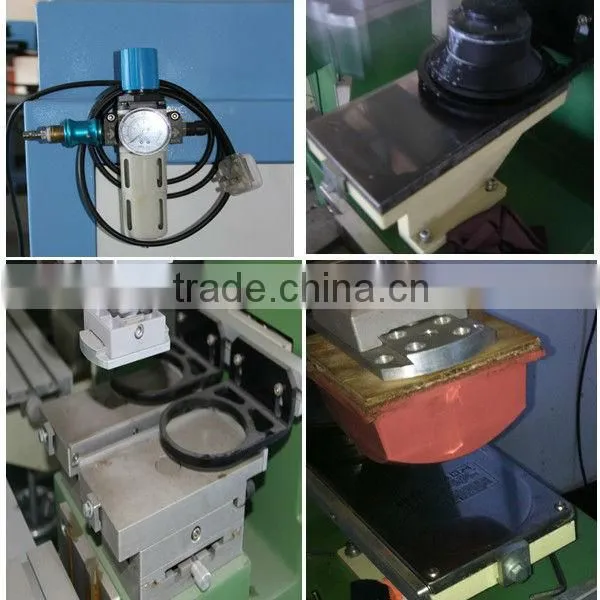

Machine detail pictures



 LC-PM2-200T Muti-Color Ink Cup Tampo Printer

Samples pictures

 LC-PM2-200T Muti-Color Ink Cup Tampo Printer

Factory and warehouse pic

LC-PM2-200T Muti-Color Ink Cup Tampo Printer









Packaging & Shipping



all machine is packed in wood case




Our Services

the guarantee is three years



  In order to protect the rights and interests of each user, each printing machine has to undergo a rigorous inspection and testing in factory before sold out as to deliver the most comprehensive after-sales service. Our company's goal: First-class quality, first-class technology, provide customers with first-class products and services.
