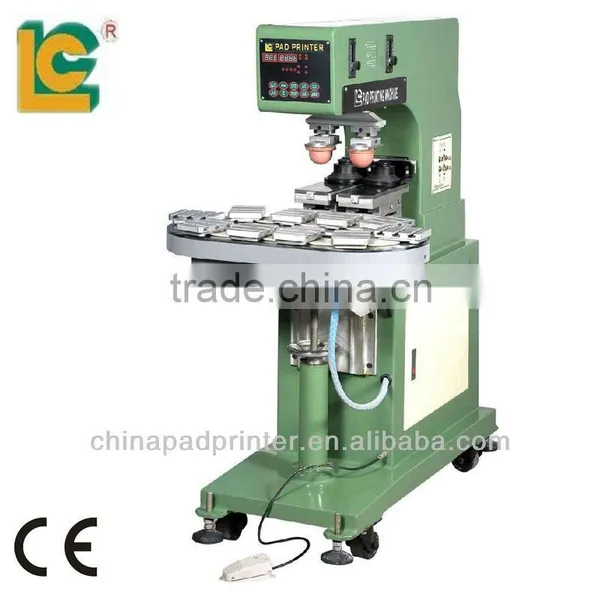

(LC-SPM2-150/10T)2-Colors Conveor Belt Sealed Cup Tampo Printing Machine

(LC-SPM2-150/10T)2-Colors Conveor Belt Sealed Cup Tampo Printing Machine photo-1
US$ 3,920 - 4,050 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Other, tampo printer
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Plate Type Other, tampo printer
Place of Origin Guangdong, China
Brand Name LC
Model Number LC-SPM2-150/10T
Usage Other, Tampo printing machine
Automatic Grade Semi-Automatic
Voltage AC110V/220V
Gross Power 35W
Dimensions(L*W*H) 1400* 730*1470mm
Weight 208kg
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.Pneumatic operation,fast speed
2.available tungsten&ceramic ring
3.good quality with best price
4.one of four leading brand







Product Description









Product name

2-Colors Conveor Belt Sealed Cup tampo printer

Model No

LC-SPM2-150/10T

Certificate

CE, ISO-9001-2000

Brand Name

LC,China

Description

Cylinder of  pad printing machine is German FESTO brand.Electrical components are imported from Japan.

While vaccum system is from Taiwan. It meets CE standard, with very stable running.

It is with closed ink cup, can save 60% ink and 90% thinner.

Two color pad printer with conveyer has 10 PCS printing position.

It can print 10 PCS products and two colors at one cycle

Advantage

1. Controlled by microprocessor, easy operation, running stably and accurately.
2. 4-digit auto counter built-in.
3. Cast aluminum machine frame, low weight and high intensity, turnable machine head.
4. Separate adjustment of the pad up/down stroke speed.
5. Ink scraper is auto balance keeping in printing.
6. With the function of ink scraping nonstop without printing in order to prevent the ink from drying.

7. Ink cup is turnable and adjustable in vertical and horizontal direction.
8. Super long slide stroke to print large size workpiece.
9. Speed of every single pneumatic organ is adjustabl

Parameter

1. Model No: LC-SPM2-150/10T
2. Operation: Pneumatic
3. Printing Colors: 2
4. Max. Printing area: 80x135 mm
5. Plate area: 100*250 mm2
6. Sealed ink cup diameter: 90mm
7. Max printing speed: 1800PCS/H
8. Wattage: 220V/ 50Hz 110V/60Hz
9. Air pressure: 6 Bar
10. Machine size: 1400× 730× 1470mm3
11. Machine weight: 198kg

Usage

It is to fit pad printing plastic products, same as toyes, gift products, pen, PE products,

golf ball package products, bos, , hosehold, stationery, pen, ball, electron products,

mobile phone, bottle. Metals products, furniture fittings.

Free fittings

1.Two PCS pad steel plate
2. Two PCS silicone rubber pad
3. One PCS jig
4. Tooling box
5. Englishi specifications

Shipping way

By sea, by air, by express

Delivery time

Within 7 days from the receipt of payment

Loading seaport

Shenzhen or Hong Kong, China

package

Plywood case

Price term

FOB Shenzhen, CFR, CIF, FCA, EXW etc

Payment term

100% T/T in advance(negotiation)







About us



1. One of three famous brand in China.our key products include , screen printer, hot stamping machine and UV curing machine.



2. We specialize in the field for 20 years, as top manufacturer we have about 150 emloyees,among which about 30 are professinal technicians and 1/4 of them has experience of IAQ field of over 10 years.



3. we have a throughput of 50 sets a month for every model with a complete set of production line and testing equipments.

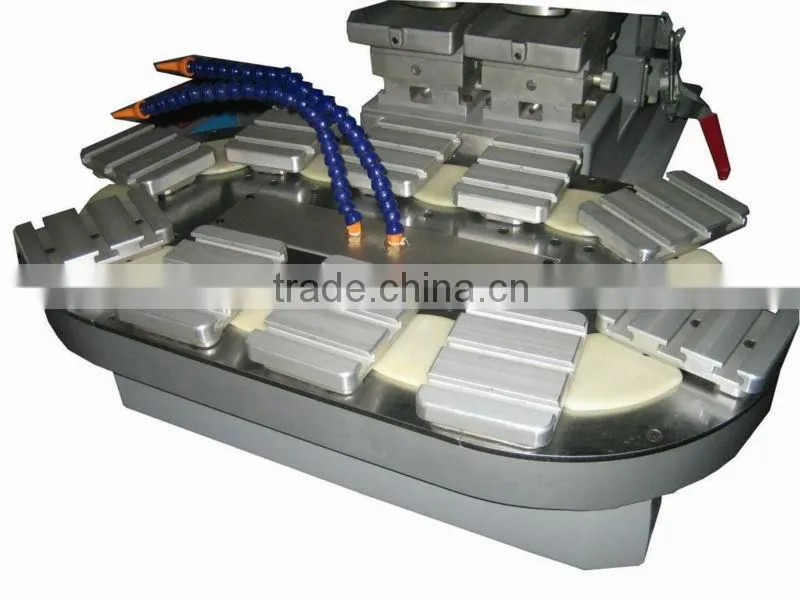

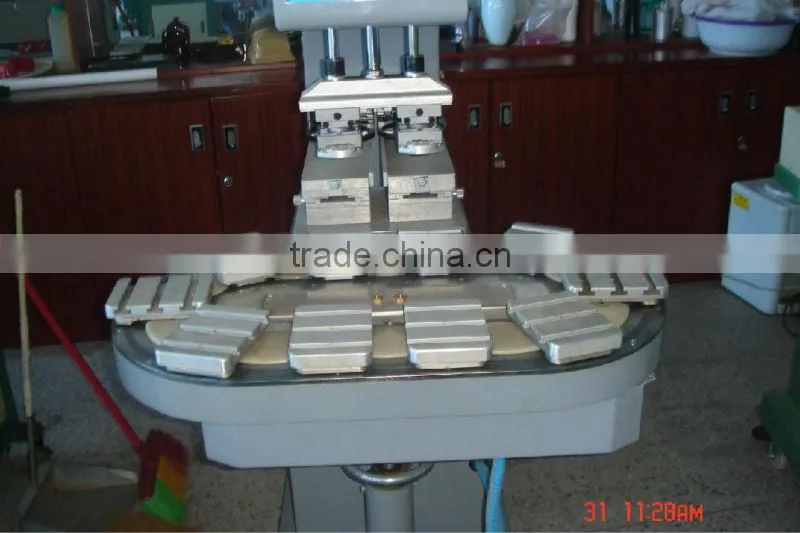

Machine detail pictures(LC-SPM2-150/10T)2-Colors Conveor Belt Sealed Cup tampo printing machine(LC-SPM2-150/10T)2-Colors Conveor Belt Sealed Cup tampo printing machine

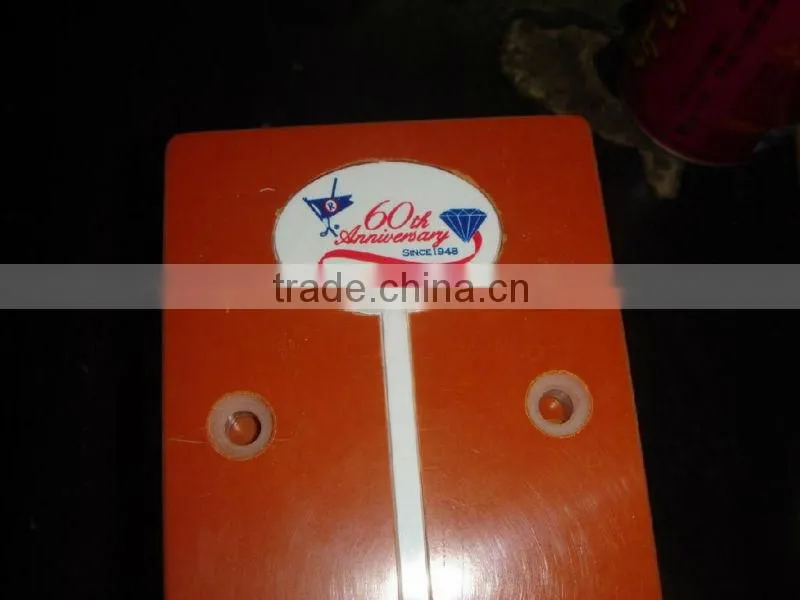

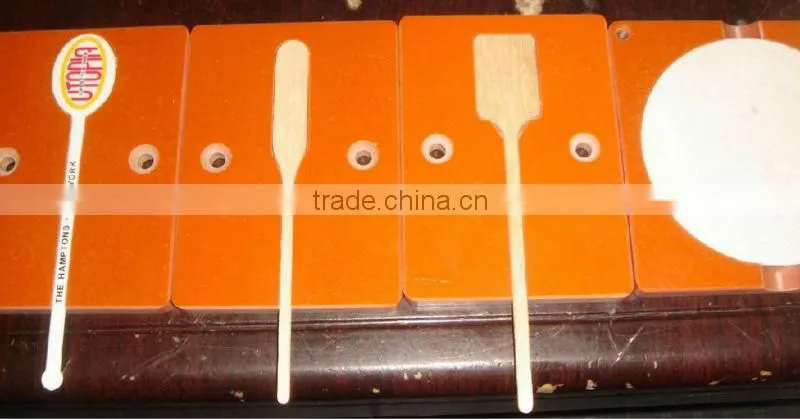

Samples pictures(LC-SPM2-150/10T)2-Colors Conveor Belt Sealed Cup tampo printing machine(LC-SPM2-150/10T)2-Colors Conveor Belt Sealed Cup tampo printing machine





Factory and warehouse pic

(LC-SPM2-150/10T)2-Colors Conveor Belt Sealed Cup tampo printing machine





Packaging & Shipping

 (LC-SPM2-150/10T)2-Colors Conveor Belt Sealed Cup tampo printing machine(LC-SPM2-150/10T)2-Colors Conveor Belt Sealed Cup tampo printing machine
