Home > Packaging & Printing > Printing Machinery > Heat Press Machine > Cylinder and Plane Heat Transfer Printing EquipmentTC-200R

Cylinder and Plane Heat Transfer Printing EquipmentTC-200R

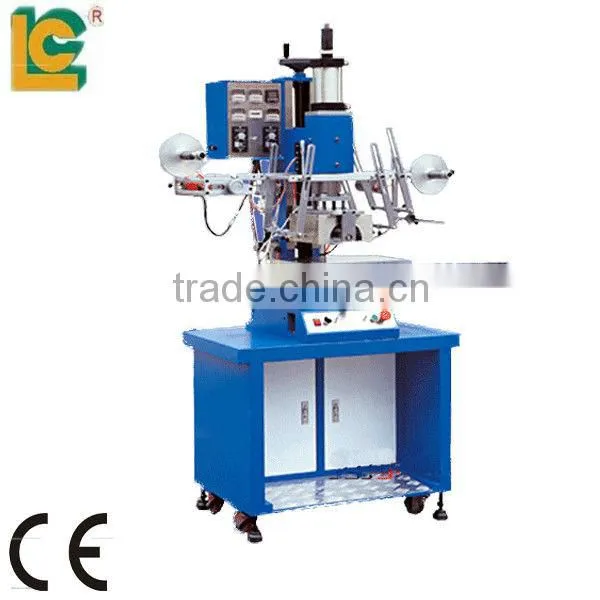

Cylinder and Plane Heat Transfer Printing EquipmentTC-200R photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Other, hot stamping machine
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China.
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Plate Type Other, hot stamping machine
Place of Origin Guangdong, China
Brand Name LC
Model Number TC-200R
Usage Paper Printer, Other, Paper Printer, craft,fabric handbag,leather and plastic
Automatic Grade Semi-Automatic
Voltage AC220V
Gross Power 500W
Dimensions(L*W*H) 1260*600*1850MM
Weight 420kg
Certification CE
After-sales Service Provided Engineers available to service machinery overseas







Product Description







Cylinder and Plane Heat Transfer Printing EquipmentTC-200R

Cylinder and Plane Heat Transfer Printing Equipment TC-200R



Machine stability. 8mm thickness of the cast iron body and a shape. Durability, service life of up to 30 years











Advantage



1, the toggle mechanism design, strong pressure, air pressure consumption;
2, stamping pressure, temperature, transfer time is adjustable;
3, the table can be moved manually before and after, to facilitate the safe and quick operation;
4, the table can be around the rotation adjustment
5, automatic document feeder, the collection of paper, and can adjust;
6, stamping head lift height adjustable;
7 shuttle table driven the the workpiece smooth rotation Stamping stamping quality is stable.
8 for stamping curved or round face, remove the shuttle table is the plane tipping machine.





Parameter



The Max.Stamping pressure ≤ 1000kgs
Max stamping diameter / full circle printing Φ140mm/Φ60mm
Stamping head height adjustable stroke: 53mm
Thermal transfer Cots area: outside diameter: 100 × length of 150mm. Red 45 degrees -85 degrees customers freedom of choice.





Application area learth , toys , plastic parts









Packaging & Shipping

 all machine is packed in wood case,shipped by sea or air



Cylinder and Plane Heat Transfer Printing EquipmentTC-200RCylinder and Plane Heat Transfer Printing EquipmentTC-200R
