Cat6 full copper lan cable
Description:

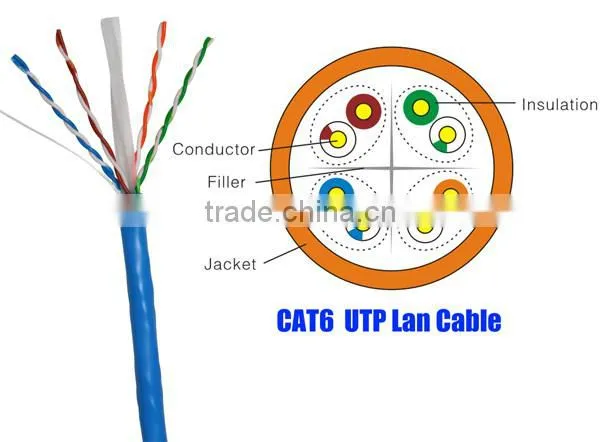

Category 6 Cable is a twisted pair cable for carrying signals. This type of cable is main used in structured cabling for computer networks such as Ethernet, supports a frequency range of up to 250MHz and is designed for transmission speeds of up to 1 gigabit per second(Gigabit Ethernet). It is also used to carry other signals such as telephony and video.
feature
| Standard: |
*ISO/IEC11801 *UL4444 |
| Conductor: | CU/CCA/CCS |
| Insulation: | HDPE(High Density Polyethylene) |
| Jacket: | PVC(Polyvinyl Chloride) or LSZH(Low Smoke Zero Halogen) |
| Core Identification: | Blue, White/Blue Orange, White/Orange Green, White/Green Brown, White/Brown |
Specification:
Conductor |
Thick. of Coductor with Insulation mm |
Nominal O.D. mm |
Nominal Weight Kgs/305m box |
23AWG |
1.03±0.005 |
6.3±0.2 |
13 |
Electrical Characteristics:
Max. Conductor Resistance: 7.0Ω/100m |
Min. Insulation Elongation: 300% |
||||||
Max. Resistance Unbalance: 2.3% |
Min. Propagation Velocity: 0.622C m/s |
||||||
Min. Conductor Elongation: 20% |
Characteristic Impedance: 100±15Ω |
||||||
Min. Insulation Resistance: 7000MΩ/km |
|
||||||
|
Frequency MHz |
Attenuation dB/100m |
NEXT dB |
PS-NEXT dB |
RL dB |
ELFEXT dB |
PS-ELFEXT dB |
|
1 |
1.9 |
74.0 |
72.3 |
20.0 |
68.0 |
65.0 |
|
4 |
3.7 |
65.0 |
63.3 |
23.0 |
56.0 |
53.0 |
|
8 |
5.3 |
60.7 |
48.8 |
24.5 |
49.9 |
46.9 |
|
10 |
5.9 |
59.0 |
57.3 |
25.0 |
48.0 |
45.0 |
|
16 |
7.5 |
56.0 |
54.2 |
25.0 |
43.9 |
40.9 |
|
20 |
8.4 |
55.0 |
52.6 |
25.0 |
42.0 |
39.0 |
|
25 |
9.5 |
53.3 |
41.3 |
24.3 |
40.0 |
37.0 |
|
31.25 |
10.6 |
52.0 |
49.9 |
23.6 |
38.1 |
35.0 |
|
62.50 |
15.4 |
47.0 |
45.4 |
21.5 |
32.1 |
29.1 |
|
100 |
19.8 |
44.0 |
42.3 |
20.1 |
28.0 |
25.0 |
|
200 |
29.0 |
44.0 |
37.8 |
18.0 |
22.0 |
19.0 |
|
250 |
32.8 |
38.0 |
36.3 |
17.3 |
20.0 |
17.0 |
|
