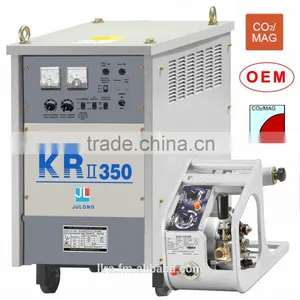

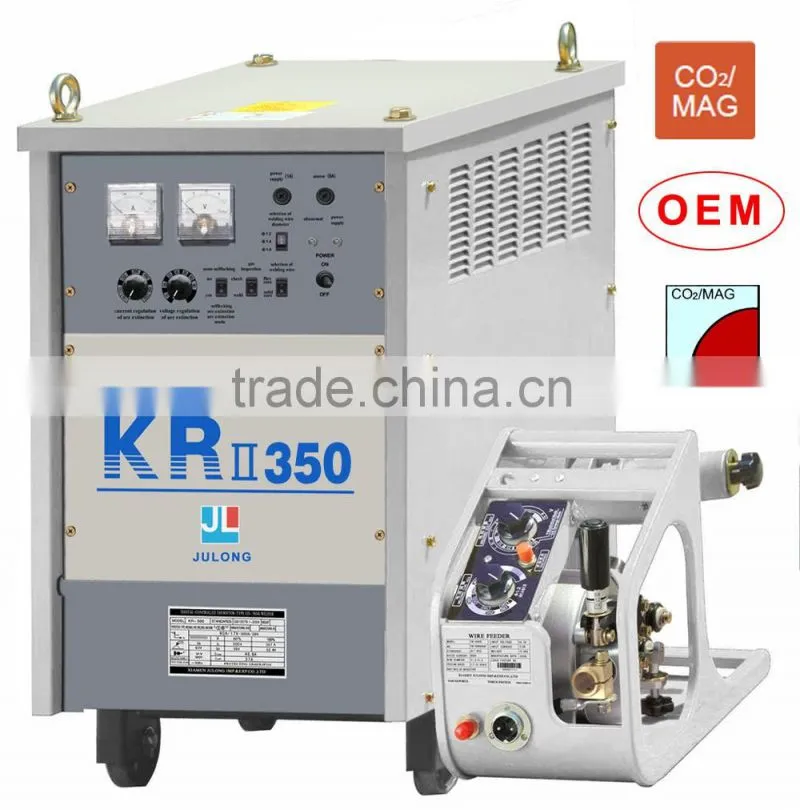

Help CenterCheape Co2 Welding Machine Price for Mig Wire Welding KR-350II Quality Choice
Related Products
-
Best Quality Panasonic KR CO2 Welding Machine With Thyristor Control KR-500 Quality ChoiceUS$ 500 - 1,500MOQ: 5 Sets -
Portable Welding Machine ZX7 200 IGBT Wedling Machine Quality ChoiceUS$ 18 - 35MOQ: 100 Sets
-
Thyristor Control ac dc Tig Welding Machine WP300US$ 300 - 1,200MOQ: 10 Sets
-
Saving Fuel Oxy-hydrogen Generator Water Welding MachineUS$ 1 - 900MOQ: 5 Sets
-
Water Fuel Generator Welding MachineUS$ 1 - 900MOQ: 5 Sets
Only one manufacturer by producing the industrial-grade large-current design welding machine,It can be competed and exchanged with original panasonic welding machine.

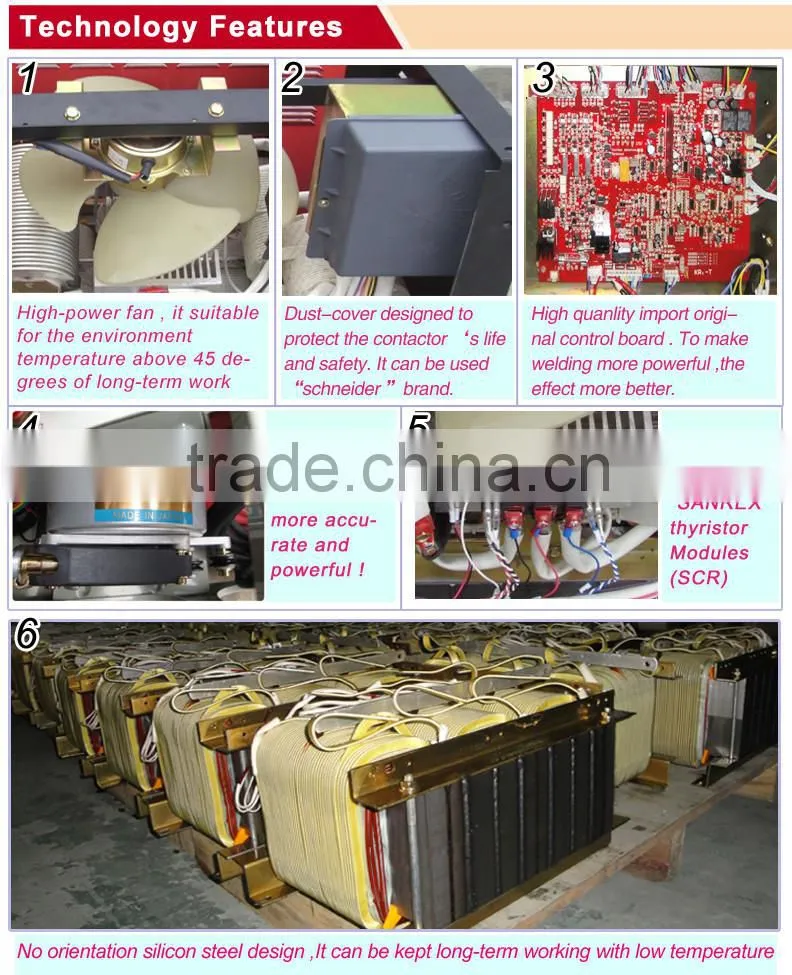

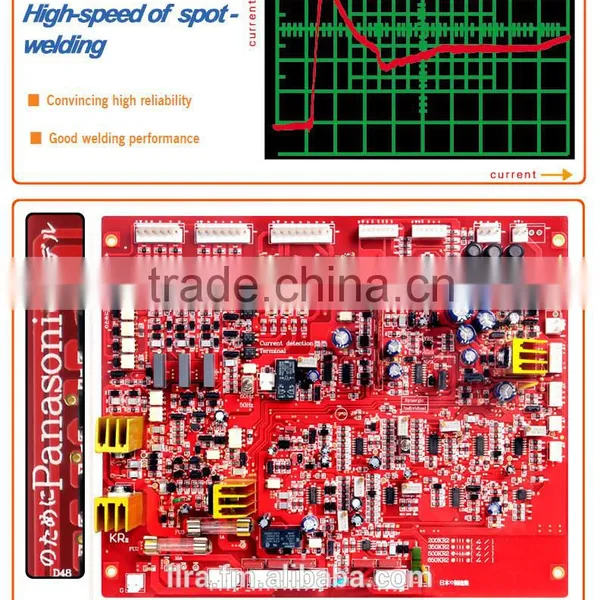

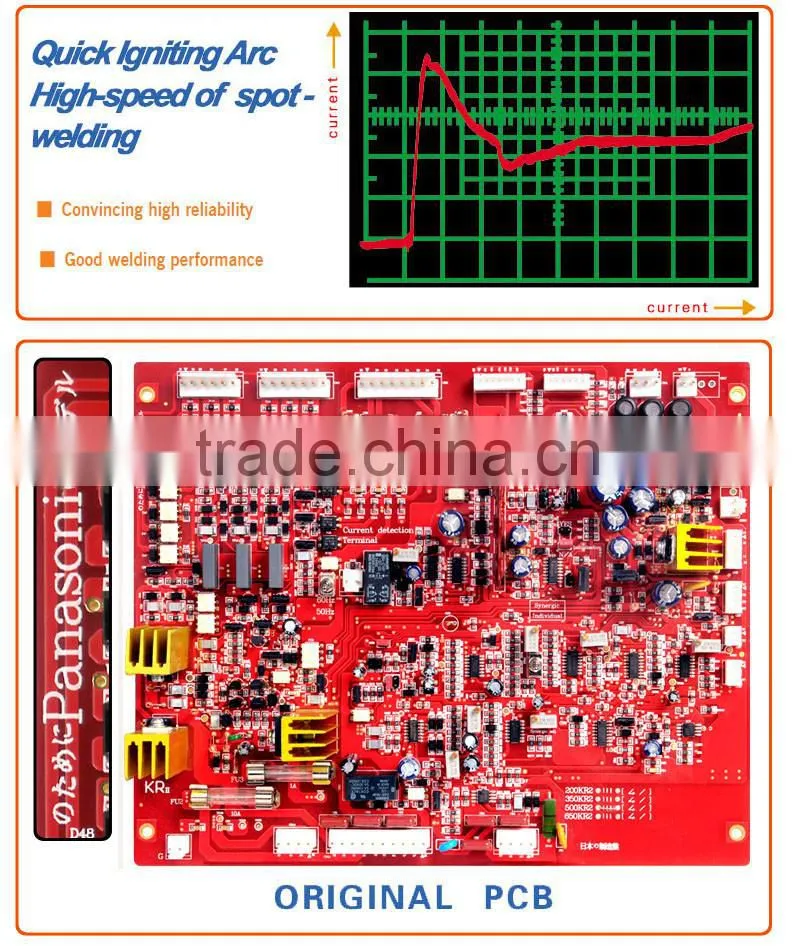

1.The heavy-duty welder ,adopt SMT circuit board,with unique features of
interference-resistance and protection technique ensures excellent performance in
severe condition environment,such as hight temperature,dust,vibration,and big current long-time working.
2.Small current performance :KR-500 work stably under current of 70A and is suitable for
vertical position welding,overhead position welding and thin material welding.With Φ1.2 welding wire.,
KR-500 are stably stable to weld on 1.2mm steel plate in 70-85A.
3.Extended working cable and unique extra-standard current output are designed to satisfy the
need of long working cable for remote distance and long-time work.
Such as,KR-500 can output current 570A.Welding current output for extended 50M integrative
cable can still remain above 460A.

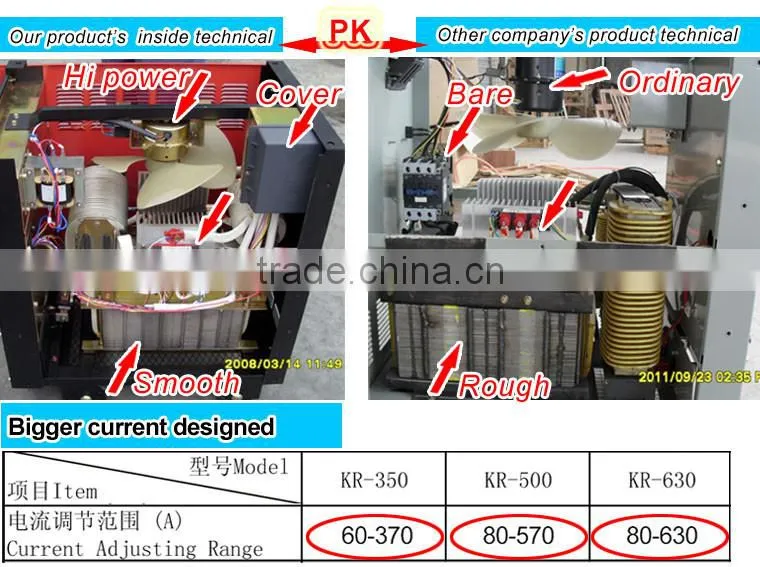

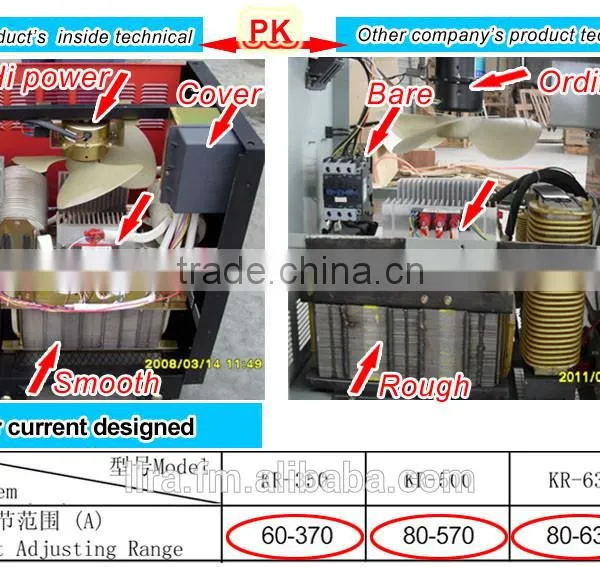

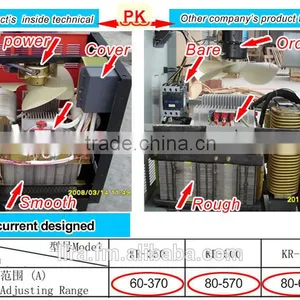

4.GEORG (Germany) silicon steel sheet automatic cutting line, imported hi-speed punch equipped with hard
alloy machining module are adopted.Burr of single silicon sheet is controlled within 0.03mm.Output
current without load of main transformer is controlled within 2.0A.Thus loss of transformer is low,and
lifetime long,heat radiation low,current attenuation less after long working time.
5.The welder sale all around the world,such as:TAIWAN,TAILAND,,VIENTNAM,HUNGARY,RUSIA,SOUTH KOREA ect.
6.The enhanced products, With high-quality and low-price, can be made competitive bid with the international brands.
ITEM |
KR-350II(D) |
KR-500II(D) |
KR-630II(D) |
Rated Input Power Voltage |
3 Phase AC380V(canbe customized) |
||
Frequency (HZ) |
50/60 |
||
Rated Input Power Capacity(KVA) |
18.1 |
31.9 |
45 |
No-load Voltage(V) |
52 |
62 |
70 |
Rated Output Current(A) |
350 |
500 |
630 |
Rated Duty Cycle(%) |
60 |
60 |
60 |
Temperature Adapting Scope(℃) |
55℃ |
55℃ |
55℃ |
Current Adjusting Range(A) |
60-370 |
80-570 |
80-650 |
Output Voltage Range(V) |
17-32.5 |
18-42.5 |
18-44 |
Wire Diameter(mm) |
Φ0.8-Φ1.2 |
Φ1.2-Φ1.6 |
Φ1.2-2.0 |
Insulation |
H |
||
Dimension (mm) |
|
675×440×780 |
725×460×790 |
Weight (KG) |
128 |
158 |
200 |
China's largest industrial-grade
thyristor welding machine OEM manufacturers.
1. Q: Are you a factory or trading company?
A: We are a big factory, we mainly produce welding machines and equipments.
2. How many employers in your factory? What’s the annual trunovers?
A: it’s more than 800 workers, our annual tumovers is more than 50 million USD.
3. Q:Where is your company located? How can i visit there?
A: Our compnay is located in xiamen city,fujian province, china.
4. Q: What certificate do you have?
A: we have CE,GS,EC,rohs,ISO9001 etc.
5. Q:What payment terms do you do?
A: T/T or L/C at sight
6. Q: Can you do OEM?
A: Yes, we can do OEM/ODM all according customer's requirments
7. Q: How can we contact you?
A: You can mail us or by Skype ID: xiamen.julong, etc.
